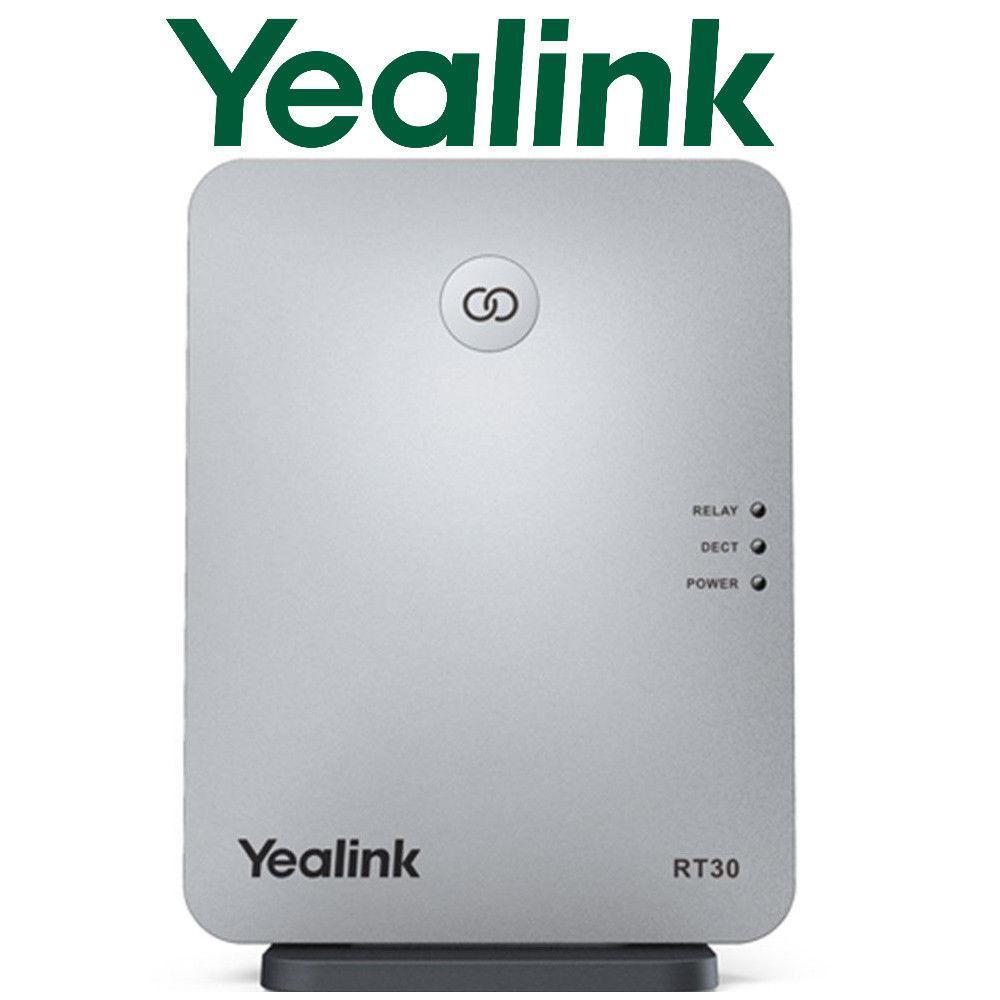

Yealink RT30 DECT Repeater for W60B W60P W52 IP Phone Base Station

Brand New Yealink RT30 DECT Repeater

The Yealink RT30 builds on the success of the Yealink RT10/T20 and retains many of the features that installers and clients know and love. In addition, the newly designed RT30 now allows "repeat-a-repeater" functionality which effectively allows 2 repeaters to be connected in cascade or "daisy-chain" mode. Additionally, up to 6 repeaters can be connected to a base station while the RT30 provides excellent coverage for those hard to reach areas.

• Compatible with DECT CAT-iq 2.0
• Compatible with Yealink W60B/W52 DECT IP Base Station
• Up to 6 repeaters per base station
• Star connection
• Up to 2 repeaters can be arranged in cascade
• Auto association
• HD voice
• Plug & play setup
• Clear status LED display
• Elegant design
• Wall mountable

Specifications:

• Standards: DECT CAT-iq 2.0
• Extending the DECT coverage
• Supports automatic handover of calls between RT30
• Up to 2 simultaneous calls per repeater
• Up to 6 repeaters per base station
• Up to 2 repeaters can be arranged in cascade (only when connected to W60B)
• Auto association
• Base Link Reset
• LED Display

- LED 1 Power On

- LED 2 DECT Link

- LED 3 Active Relay

• Compatible with Yealink W60B (version 77.81.0.35 or later)
• Compatible with Yealink W52 Base Station(version 25.81.0.10 or later)

Frequency/Coverage

• Indoor range up to 50m (in ideal conditions)
• Outdoor range up to 300m (in clear view and ideal conditions)
• 2 internal QWL omnidirectional antennas
• Modulation: GFSK
• Radio frequency range:

1880 MHz to 1900 MHz (EU)

1920 MHz to 1930 MHz (US)

• Transmission power: Average 10mW
• RX sensitivity: typ. -91dBm

Physical Features

• Desktop or wall mountable
• Power supply: AC 100-240V Input and DC 5V/600mA Output
• Dimension (W*H*T): 130mm x 100mm x 25.1mm

Box Contents:

- RT30

- USB Cable

- Power Adapter

- User Guide
