Designed to be installed in a small & tight space to print various document sizes ranging from A4 to A1/24 inches sizes. It can be placed on a desk, cabinet or shelf with a flat top that will fit in a home office or satellite office.
High Quality Prints

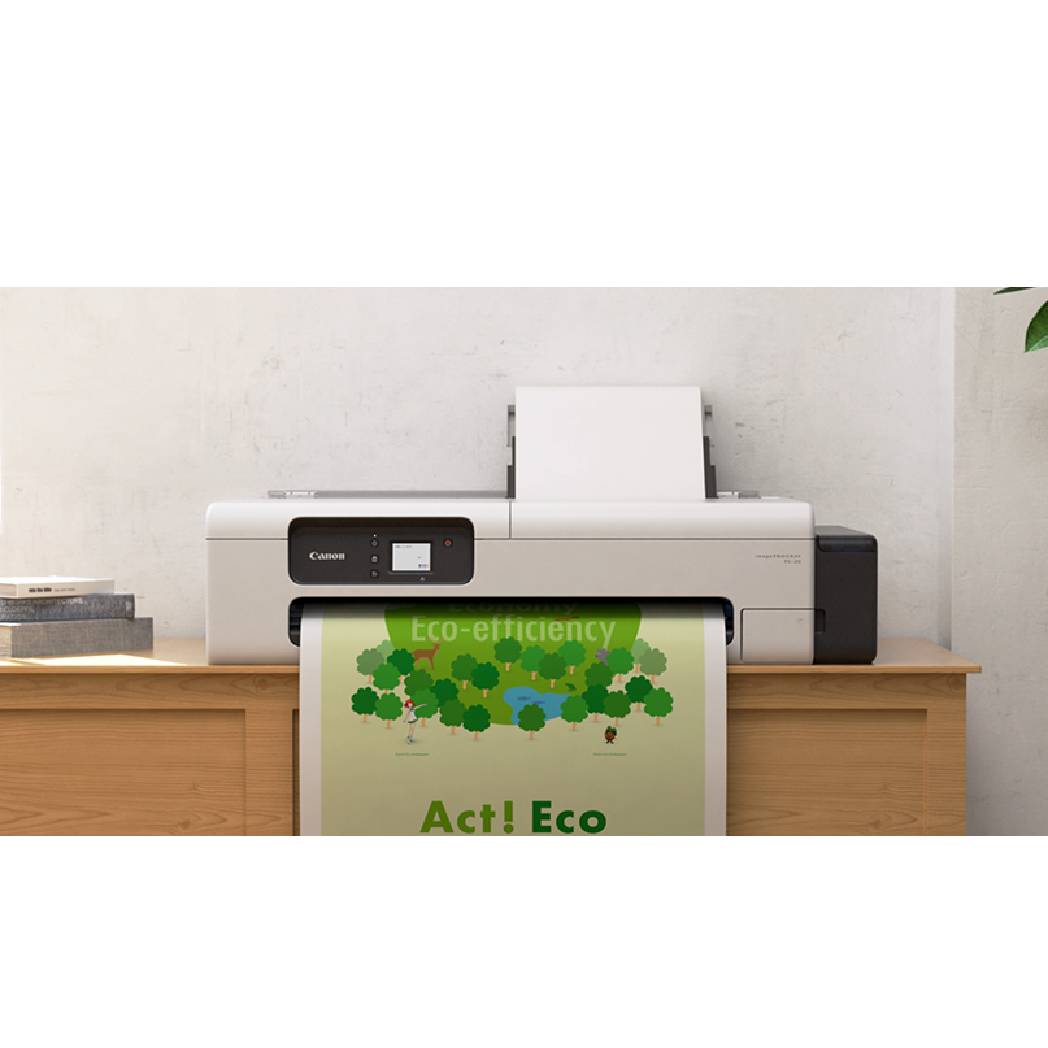

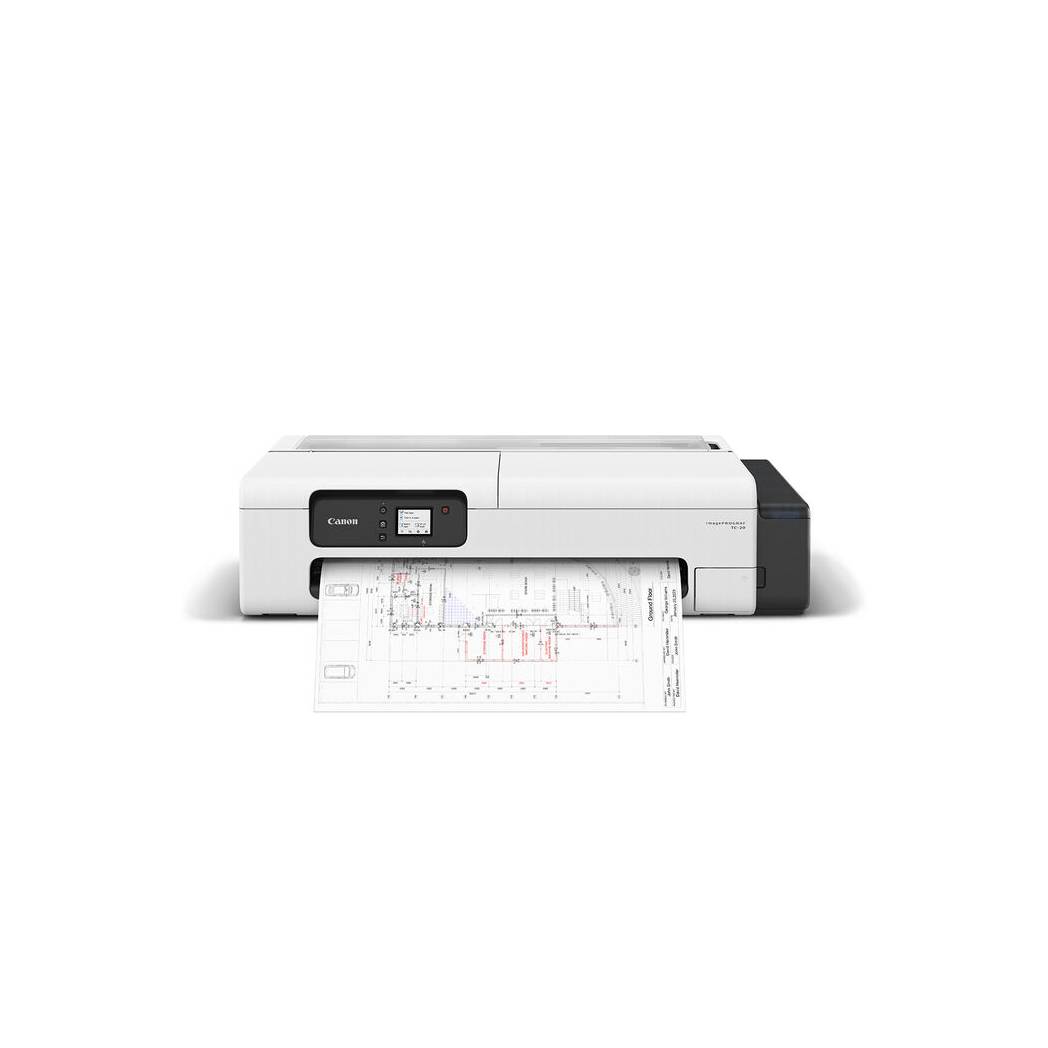

Pigment ink for all colours produces fine lines & texts on drawings and delivers vivid colour expression in posters and flyers, especially in red colour to attract attention. The prints will not smudge easily due to accidental water spills or highlighter markers and remain visible.

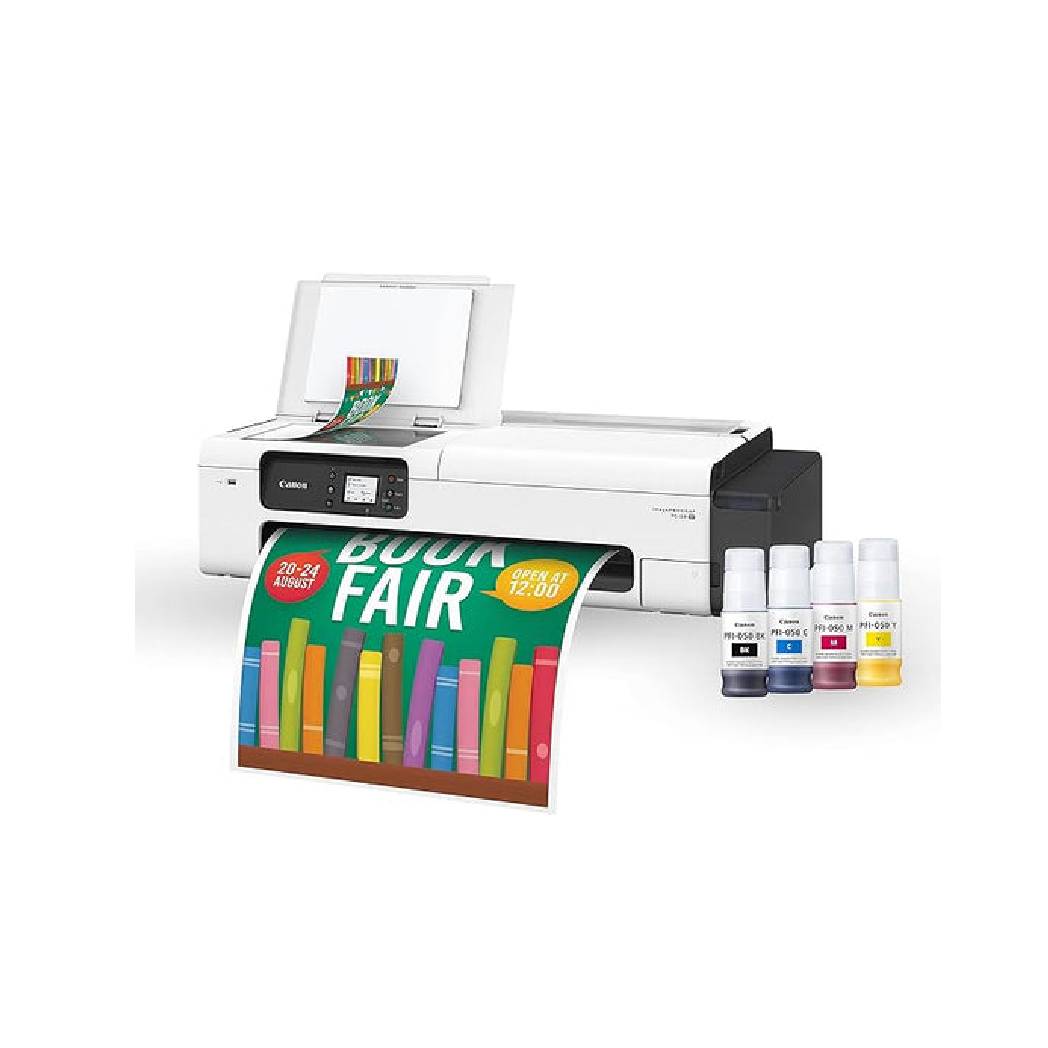

Comes with a total of 280 ml of ink (4 x 70 ml) to cater for various applications such as CAD drawings, GIS Maps, posters and flyers, reduces the frequency and effort of ink refills.
Ease of use for daily print operations. Fully front accessibility for loading paper, replenishing ink, and replacing maintenance cartridges.
Roll and cut sheets can be loaded at the same time for easy printing from A4 to A1 sizes to minimise waiting time. Selection of paper sizes from applications before sending to print.
Standard built-in auto sheet feeder can support up to 100 A4 or 50 A3 cut sheets* for continuous printing. Lesser downtime to reload paper.
* Plain paper.
Workflow Solutions
Free Poster Application
PosterArtist Web application provides a wide selection of design templates for users to create their own posters, flyers and other graphics easily and send to print.
Direct Print Plus
Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
Canon PRINT Inkjet/SELPHY
Print PDF files wirelessly via mobile app for Android smartphones & tablets. Ability to check the status of printer.
Print PDF files wirelessly via mobile app for Android smartphones & tablets. Ability to check the status of printer.
- Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
- Free Layout Plus - Enjoy nesting, tiling and duplex printing features.
- Media Configuration Tool - Easily manage, update and arrange media information in printer's operation panel and printer driver.
- PosterArtist/PosterArtist Lite - Windows-based application. Create professional-looking posters in-house with a wide variety of templates, stock photos and clip art for various business types and themes.
- PIXUS/PIXMA Cloud Link - Mobile application which allows you to access to your files via cloud for printing and scanning purposes.
- Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
|
Printer Type |
4-Colour 610 mm (24in) |
|
Number of Nozzles |
4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each) |
|
Maximum Print Resolution |
2400 × 1200 dpi |
|
Nozzle Pitch |
1200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Ink Capacity |
Sales Ink: 70 ml (BK, C, M, Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, Apple AirPrint, Mopria, ChromeOS |
|
Management Solutions |
Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility |
|
Standard Interfaces (Built-in) |
USB B Port (Series B, 4 pins) |
|
Standard Memory |
1 GB |
Print Speed*3
|
Plain Paper (CAD Drawing) |
32s (Draft) (Monochrome) |
Media Handling
|
Media Feed and Output |
|
|
Roll Paper |
One Roll, Top Load, Front Output |
|
Cut Sheet |
Top Load, Front Output*4 |
|
Media Width (Roll / Cut Sheet) |
Roll Width: 297 ~ 610 mm (A3 width to 24"); |
|
Media Thickness (Roll / Cut Sheet) |
0.08 ～ 0.28 mm |
|
Media Core Size |
5.08cm (2in) core |
|
Min. Printable Length |
|
|
Roll Paper |
203.2 mm |
|
Cut Sheet |
203.2 mm |
|
Max. Printable Length |
|
|
Roll Paper |
4 m*5 |
|
Cut Sheet |
432 mm |
|
Maximum Outer Roll Diameter |
110 mm or less |
|
Borderless Printing Width |
NA |
|
Margins (Recommended Area) |
|
|
Roll Paper |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
|
Cut Sheet |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
|
Margins (Printable Area) |
|
|
Roll Paper |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
|
Cut Sheet |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
Dimensions & Weight
|
Dimensions (W x D x H) |
|
|
Main Unit |
968 × 545 × 395 mm (Auto Sheet Feeder Closed) |
|
Main Unit + Printer Stand + Basket (SD-24) |
968 × 870 × 874 mm (Basket Opened) |
|
Main Unit + Desktop Basket (BU-06) |
968 × 825 × 965*7 mm (Basket Opened) |
|
Weight*8 |
|
|
Main Unit |
32 kg |
|
Main Unit + Printer Stand + Basket (SD-24) |
40 kg |
|
Main Unit + Desktop Basket (BU-06) |
33 kg |
|
Packaged Dimensions (W x D x H) |
|
|
Main Unit |
1120 x 726 x 406 mm |
|
Stand + Basket (SD-24) |
1055 x 824 x 268 mm |
|
Desktop Basket |
798 x 301 x 111 mm |
|
Packaged Weight |
|
|
Main Unit |
43 kg |
|
Stand + Basket (SD-24) |
16 kg |
|
Desktop Basket |
1.8 kg |
Power & Operating Requirements
|
Power Supply |
AC 100 - 240 V, 50 - 60 Hz |
|
Power Consumption |
|
|
Printing*9 |
28 W or less |
|
Sleep Mode*9 |
1.8 W or less |
|
Power Off |
0.3 W or less |
|
Operating Environment |
|
|
Temperature |
15 ～ 30°C |
|
Humidity |
10 ～ 80% RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*10 |
Operation: Approx. 6.0 Bels |
|
Acoustic Pressure*10 |
Operation: Approx. 42.5 dB (A) |
Accessories
|
Printer Stand (Optional) |
SD-24 |
|
Desktop Basket |
BU-06 |
Consumables
|
Ink Bottle |
PFI-050 (70 ml) |
|
Print Head |
PF-08 |
|
Cutter Blade |
NA |
|
Maintenance Cartridge |
MC-32 |
