Monochrome Laser Multifunctional

Standard: Print, Copy, Scan, Send, Store

Optional: Fax

1.8 GHz Dual Core Processor

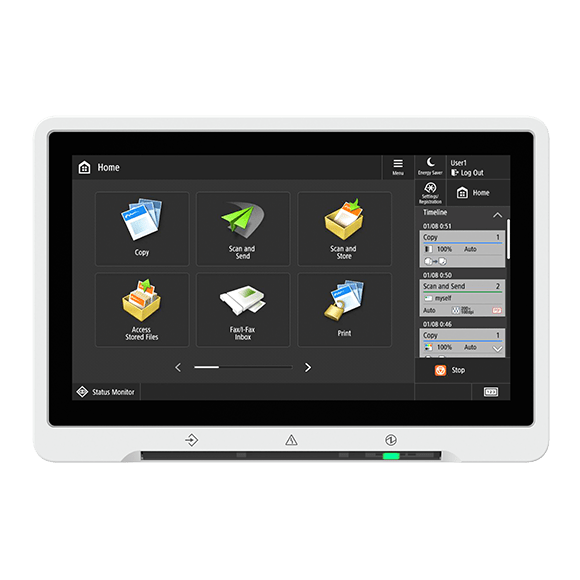

10.1" TFT LCD WSVGA Colour Touch-panel

3.5 GB RAM

Standard: 256 GB

Maximum: 1 TB

Network

Standard: 1000Base-T/100Base-TX/10Base-T

Optional: Wireless LAN (IEEE 802.11 b/g/n)

Others

Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)

Optional: Copy Control Interface, Serial Interface

Standard: 1,200 Sheets

Maximum: 3,650 Sheets

Standard: Two 550-sheet Paper Cassettes, 100-sheet Stack Bypass

Optional: High-Capacity Cassette Feeding Unit-E1 (2,450 sheets)

Standard: 250 Sheets

Maximum: 3,450 Sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)

Standard: Collate, Group

With Finishers: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple on Demand

Upper/Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope Thin

Multi-purpose Tray: Plain, Heavy, Recycled, Coated, Colour, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope

Upper Cassette: Standard size: Letter, Executive, Statement-R Custom Size: 4-1/8" x 5-7/8" to 11-3/4" x 8-1/2" Envelopes: ISO-C5

Lower Cassette: Standard size: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R Custom Size: 4-1/8" x 5-7/8" to 12" x 18"  Envelopes : COM10 No.10, Monarch, DL

Multi-purpose Tray: Standard size: 12"x18", 11"x17", Legal, Letter, Letter-R, Executive, Statement, Statement-R Custom size: 3-7/8" x 5-1/2" to 12-5/8" x 18"  Free size: 4" x 5-7/8" to 12" x 18" Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 3-7/8" x 3-7/8" to 12-5/8" x 18"

Upper/Lower Cassette: 14 lb. Bond to 140 lb. Cover (52 to 256 g/m²)

Multi-purpose Tray: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m²)

Duplexing: 14 lb. Bond to 80 lb. Bond (52 to 220 g/m²)

Letter: Up to 45 ppm

Letter-R: Up to 32 ppm

Legal: Up to 22 ppm

11" x 17': Up to 22 ppm

From Power On: Approx. 10 Seconds

From Sleep Mode: Approx. 10 Seconds

Quick Startup Mode: Approx. 4 Seconds

With Single Pass DADF-C1: 22-1/4" x 28-1/2" x 35-3/8"
(565 mm x 722 mm x 897 mm)

With DADF-BA1: 22-1/4" x 28-3/8" x 35-1/8"
(565 mm x 719 mm x 891 mm)

Basic: 38-1/2" x 44-1/8" (978 mm x 1119 mm) (with Single Pass DADF-C1 + right door and multipurpose tray opened + paper cassette opened)

38-1/2" x 45" (978 mm x 1116 mm) (with DADF-BA1 + right door and multipurpose tray opened + paper cassette open)

Fully Configured: 65" x 44-1/8" (1651 mm x 1119 mm) (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)

1651 mm x 1116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)

Approx. 193.8 lb. (87.9 kg)
With Single Pass DADF-C1: Approx. 163.1 lb. (74 kg)
With DADF-BA1: Approx. 149.9lb. (68 kg)

UFR II, PCL^® 6, Adobe^® PS^® 3

PDF, TIFF, JPEG, EPS, XPS

A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.

PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese - requires the optional PCL International Font Set-A1), Barcode Fonts (requires the optional Barcode Printer Kit-D1)

PS Fonts: 136 Roman

UFR II: Windows® 8.1/10/11/Server2012/ Server2012 R2/Server2016/Server2019/ Server2022, Mac OS X (10.11 or later)

PCL: Windows® 8.1/10/11/Server2012/ Server2012 R2/Server2016/Server2019/ Server2022

PS: Windows® 8.1/10/11/Server2012/ Server2012 R2/Server2016/Server2019/ Server2022, Mac OS X (10.11 or later)

PPD: Windows® 8.1/10/11, Mac OS X (10.11 or later) As of Jan. 2022

Note: Other operating systems and environments including AS/400/UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.

As fast as 4.6 seconds

600 x 600

Up to 9,999 Copies

Automatic or Manual (9 Levels)

25%-400% (1% Increments)

25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%

OOptional: Single Pass DADF-C1 or DADF-BA1 [2-sided to 2- sided (Automatic with DADF)]

Single Pass DADF-C1: Up to 200 Sheets

11" x 17", Legal, Letter, Letter-R, Statement, Statement-R

Single Pass DADF-C1: 13.3 lb. Bond to 80 lb. Cover (50 to 220 g/m²)

DADF-BA1: 13.3 lb. Bond to 34 lb. Bond (50 to 128 g/m²) (BW), 17 lb. Bond to 34 lb. Bond (64 to 128 g/m²) (CL)

Sheet, Book, 3-Dimensional Objects

Up to 11-3/4" x 17" (297 mm x 431.8 mm)

Colour Network ScanGear2 for both Twain and WIA

Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022

Push: up to 600 x 600

Pull: 600 x 600

A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.

Single Pass DADF-C1

Single Sided Scanning: BW: 135 ipm (300 dpi), CL: 80 ipm (600 dpi)

Double-sided Scanning: BW: 270 ipm (300 dpi), CL: 160 ipm (600 dpi)

Standard: Email/Internet FAX (SMTP), SMB 3.1.1, FTP, WebDAV, Mail Box

Optional: Super G3 Fax, IP Fax

LDAP (2,000)/Local (1,600)/Speed dial (200)

Push: Up to 600 x 600

Pull: Up to 600 x 600

File: FTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV

Email: SMTP, POP3

TIFF (MMR), JPEG15, PDF (Compact, OCR (Text Searchable), Optimize PDF for Web, Format to PDF/A-1b, Trace & Smooth, Encrypt), XPS (Compact), PDF/XPS (Device Signature, User Signature), Office Open XML (PowerPoint, Word)

4

Super G3: 33.6 Kbps

G3: 14.4 Kbps

MH, MR, MMR, JBIG

400 x 400, 200 x 400, 200 x 200, 200 x 100

Statement-R to 11" x 17"

Up to 30,000 Pages (2,000 Jobs)

Max. 200

Max. 199 Dials

Max. 256 Addresses

Yes

100 User-In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored (2,000 Jobs Stored)

Communication Protocol: SMB or WebDAV Supported

Client PC: Windows (Windows 10/11)

Concurrent Connections (Max.)

SMB: 64

WebDAV: 3 (Active Sessions)

Approx. 16 GB (Standard), Approx. 480 GB (With Optional 1 TB)

Standard: USB

Standard: Universal Login Manager, uniFLOW Online Express (no charge for this solution; however activation is required), User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in

Optional: uniFLOW, uniFLOW Online

Standard: Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (pending confirmation) Hard Disk Drive Mirroring, IEEE 2600.2

Optional: Common Criteria Certification

Standard: TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support, Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/ Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for Email Reception)

Optional: WPA3 support (Wi-Fi), (Wired LAN/Wireless LAN, Wired LAN/Wired LAN)

Standard: Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signature

Temperature: 10 to 30^ºC

Humidity: 20 to 80% RH (Relative Humidity)

110-127V, 60Hz, 10.4A

Maximum: Approx. 1,500 W

Copying (with DADF continuous scan): Approx. 649 W (110 - 127 V)

Sleep Mode: Approx. 0.9 W (not available in all circumstances due to certain settings)

Typical Electricity Consumption (TEC) Rating: 0.45kWh (based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0)

GPR-67 Toner BK

Black: 44,500 Images
