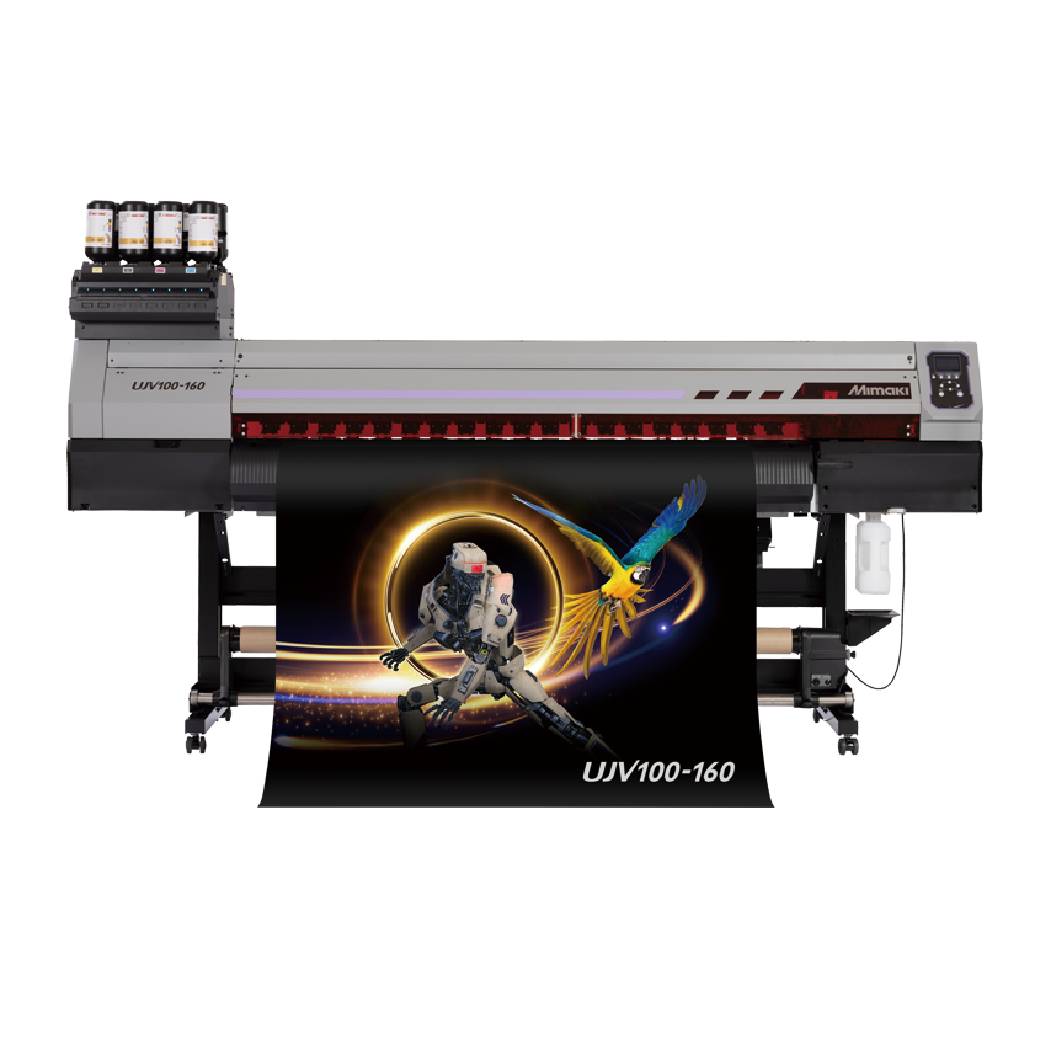

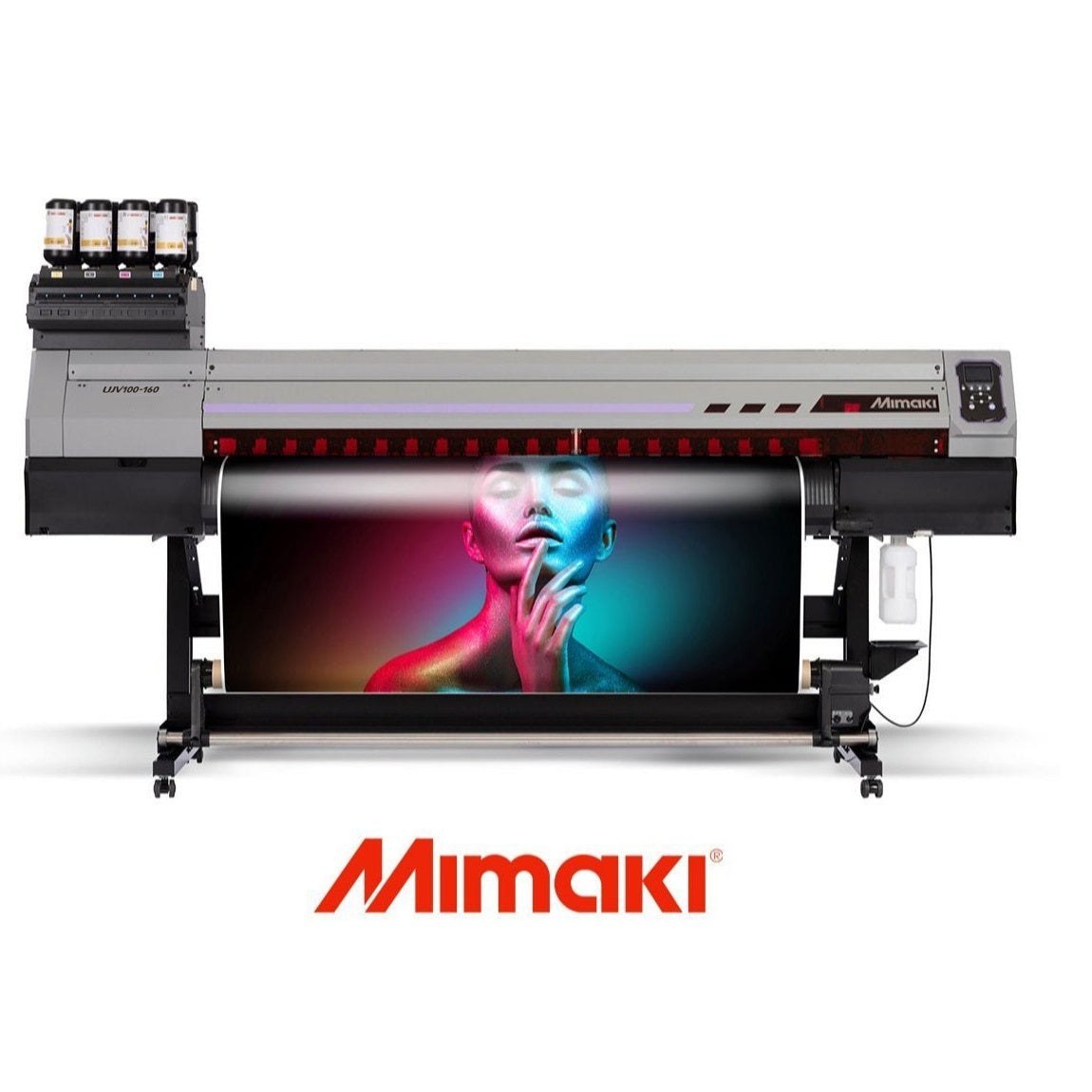

Brand New Mimaki UJV100-160 64" Inch UV-LED Roll to Roll Inkjet Printer With Dot Adjustment System (DAS)
The UJV100-160 is a competitively priced UV-LED roll-based printer with all the productivity features of higher-end models. It features Mimaki instant-dry UV-LED inks that adhere to a variety of media, including paper, PET film, fabric, vinyl, and more, making post-printing handling and finishing effortless. With UV light, UV-LED inks cure instantly, dramatically increasing printing speed and efficiency. This multi-purpose machine is suited for a variety of applications while keeping costs low, and offers:
160 cm width, with print speeds up to 23m2/h
High media versatility with unparalleled scratch resistance
Eco-friendly, six color inkset in 1-liter bottles: C, M, Y, K, W, Cl
Instantly cured prints for shorter turnarounds and additional cost savings
New Dot Adjustment System (DAS) automates dot position and feeding corrections, reducing manual intervention and workflow interruption
Features
1. Latest features that achieve Mimaki quality
DAS (Dot Adjustment System)NEW!
The UJV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.
When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary. As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.
Mimaki technology that enables stable and high-quality print
MAPS4
Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.
MAPS ON Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.
MAPS OFF Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.
NCU & NRS automatically detects missing nozzles and performs recovery
NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.
2. High productivity at a competitive price
High-speed printing at a maximum of 23m²/h
Because no drying time is required, it is possible to perform installation or lamination immediately after printing.
Because UV-curable ink is cured instantly by irradiating UV (ultraviolet) light immediately after printing, a drying process is not needed. Post-processing and sign applying are possible immediately after printing, which shortens production time and improves productivity, allowing you to promptly handle orders of short delivery time.
3. Capability of supporting various media types and value-added prints, achieved by using UV-curable ink
Print on a wide variety of materials, including not only PVC and tarpaulin but also paper with no acceptance layer, PET film, and fabric, is enabled. Value-added print such as two-layer print, in which white ink is used for transparent PET film, and varnish print using clear ink, can also be handled.
Specifications
Print head
On-demand piezo head (2 staggered layout)
Print resolution
360 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink
Type/Colour
UV-curable ink LUS-170 (C, M, Y, K, W, Cl) UV-curable ink LUS-210 (C, M, Y, K, W, Cl)
Capacity
1L bottle
Maximum print width
1,610 mm (63.4 in)
Media
Maximum width
1,620 mm (63.8 in)
Thickness
1 mm or lower
Roll weight
45 kg or less
roll diameter
φ250 mm or less
Power supply
AC 200–240V ± 10% 50/60Hz ±1 Hz, 15 A or less
Certifications
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC
Operational environment
Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)
Weight
167 kg (368.2 lb)
Dimensions (W×D×H)
2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
Interface
USB2.0 / Ethernet 1000BASE-T
