Mimaki Advanced Pass System (MAPS)
The JV33-160, which succeeds the JV3-160 (a product that has received great reviews since its launch in 2002), creates high quality prints at 540dpi x 1,080dpi with a print speed of 128sq.ft./h (11.9m2/h), while maintaining an affordable price. The JV33-160 has the same print head as the JV5 series which has 8 lines of 180 nozzles (total 1,440 nozzles).
These print heads can increase print speeds by 30% over the JV3 series. Printing signage for up-close viewing can be created at 540 x 1,080dpi with a print speed of 128sq.ft./h (11.9m2/h ). Having only one head helps prevent against alignment errors when setting the heads. A symmetric ink arrangement (MCYKKYCM) and newly developed 16 bit rendering function of the standard RIP, allows for enhanced print quality. In addition to pre-print heaters, a post heater has been added to increase drying time of ink on media, allowing for faster uptake of the printed media.
The JV33 series is also equipped with an UISS (uninterrupted ink supply system) for use during the 4-print mode. This feature allows the printer to produce large prints (long runs) without worrying about running out of ink. There are 4 types ink available for the JV33 series: SS21 ink (including white ink), ES3 ink (solvent ink), aqueous pigment ink, and dye sublimation ink. Mimaki JV33-160 Solvent Printer (63-inch).

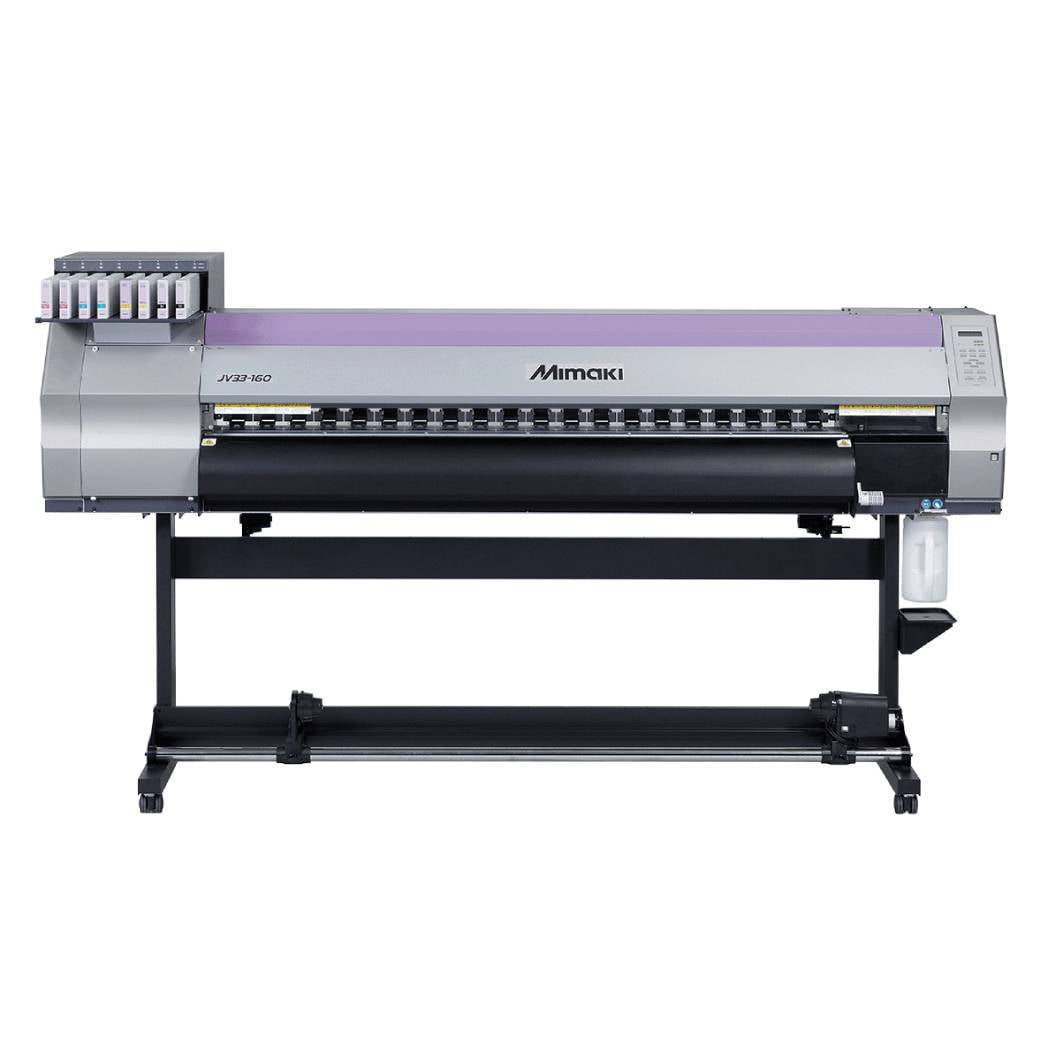

Mimaki JV33-160 Overview
The Mimaki JV33-160 is a versatile, high-performance wide-format printer known for its exceptional print quality and reliable operation. With a maximum print width of 1.6 meters (63 inches), this printer is ideal for producing large-scale graphics, including banners, vehicle wraps, signs, and other wide-format media. Its advanced technology ensures vibrant colors, sharp details, and consistent results.
Key Features:
-
High-Quality Prints: The JV33-160 utilizes Mimaki's cutting-edge printhead technology, capable of producing resolutions up to 1440 dpi. This ensures that even the smallest details in your prints are crisp and clear.
-
Versatile Media Handling: This printer supports a wide range of media types, including vinyl, canvas, and photo paper. It also features an automatic media take-up system for long runs, reducing the need for constant supervision.
-
Fast Printing Speeds: With speeds up to 17.5 square meters per hour, the JV33-160 balances speed with quality, making it suitable for both high-volume production and intricate, high-detail projects.
-
Eco-Friendly Inks: The JV33-160 is compatible with Mimaki's SS21 eco-solvent inks, which offer vibrant colors and durability while being environmentally conscious. The inks are also quick-drying, making the printer efficient for continuous production.
-
User-Friendly Interface: The printer features a simple, intuitive control panel, allowing operators to easily manage print jobs, adjust settings, and perform maintenance tasks.
Applications:
-
Banners & Posters: Create eye-catching promotional materials with vivid colors and sharp images.
-
Vehicle Wraps: Produce durable, high-resolution vehicle graphics that withstand outdoor conditions.
-
Signs & Displays: Ideal for both indoor and outdoor signage, offering long-lasting prints with excellent color fidelity.
-
Custom Wallpapers: Print large, seamless wallpaper designs with consistent quality across the entire surface.
Specifications
| Printhead |
One on-demand piezo head
|
| Print Resolutions |
540dpi, 720 dpi, 1,080dpi
|
| Print Speed (4 Color Mode) |
up to 211.0 SqFt/Hr (19.6 m2/h)
|
| Maximum Print Area |
63.4″ (1610.0 mm)
|
| Maximum media width |
63.8″ (1620 mm)
|
| Maximum Media Thickness |
up to 0.0″ (1.0 mm)
|
| Maximum Media Weight |
55.1 lbs. (25.0 kg)
|
| Ink Type |
U.S. & Canada- n/a | Mexico, Central & South America- Sb53, Sb54, SS21, ES3
|
| Interface |
USB2.0 Hi-speed
|
| Power Supply |
Single phase AC100 – 120V / AC220 – 240V ±10%
|
| Power Consumption |
AC100V: 1440W or less
|
| Operational Environment |
Temperature 64° – 95° F (17.8-35° C)
Humidity: 35–65 % RH (Non condensing)
|
| Dimensions (W × D × H) |
143.7 x 51.3 x 56.1″ (365.0 x 130.2 x 142.4 cm)
|
| Weight |
319.7 lbs. (145 kg)
|
| Certifications |
VCCI class A / UL60950-1 / FCC class A / CE Marking (EMC and Low voltage directive) / CB report
|
