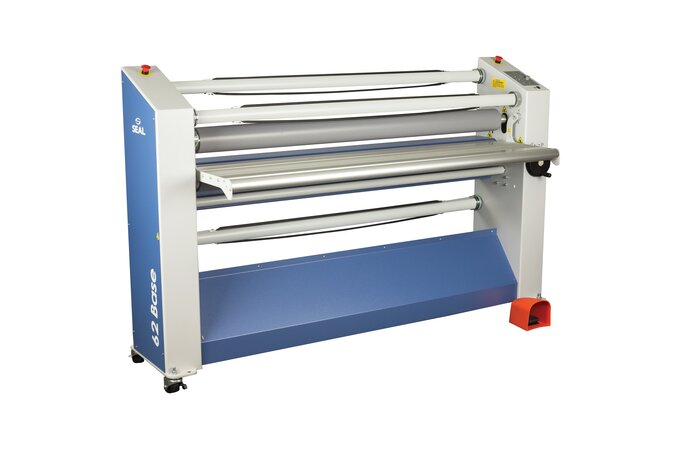

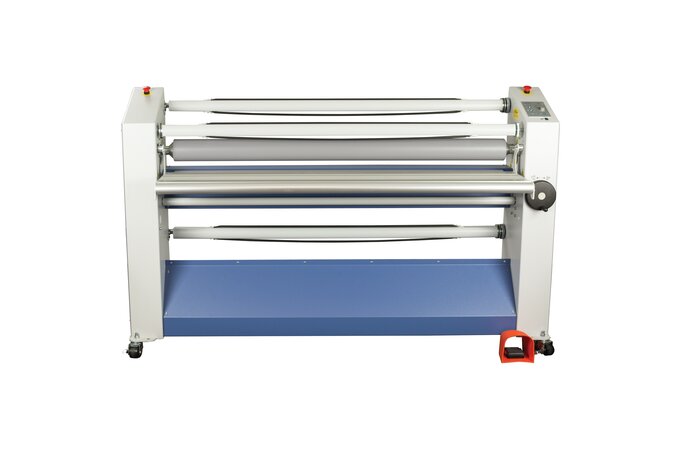

The SEAL 62 Base is ideal for mounting and laminating pressure-sensitive graphics up to 61”, this machine represents a flexible package at an affordable price - without compromising its functionality. Equipped with adjustable pressure and speed settings for maximum versatility and a 2” nip opening to cover a wide range of substrates. The SEAL 62 Base is easy- to-us, and will deliver genuine flexibility and high performance levels for the small to medium sized user. The 62 Base is ETL and CE certified.
- Heat assisted top roller for superb lamination performance
- 61” working width to handle a wide range of media
- 61” working width to handle a wide range of media
- Adjustable pressure and speed settings with maximum operating speed of 16.4’/minute
- 2” nip with manual adjustment suitable for working with a sled for road signs
- Auto-grip shafts for user friendly webbing

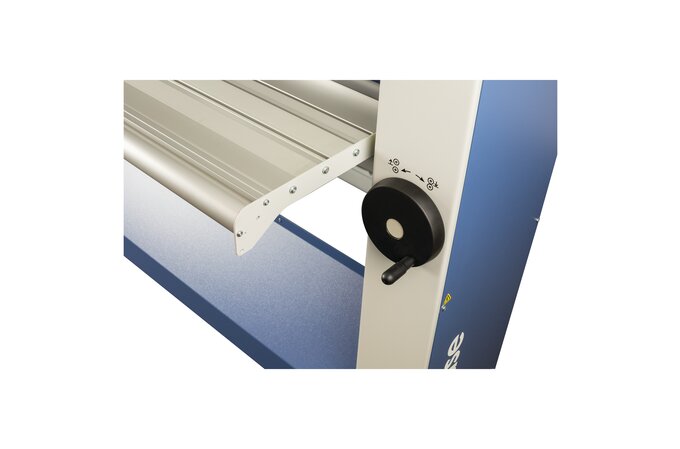

- Swing-up feed table to facilitate easy set up
- Foot switch for hands free operation
- Self checking safety eyes for increased operator safety

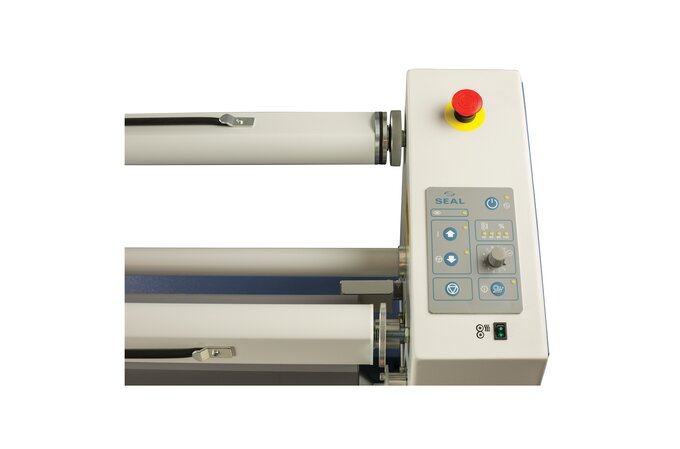

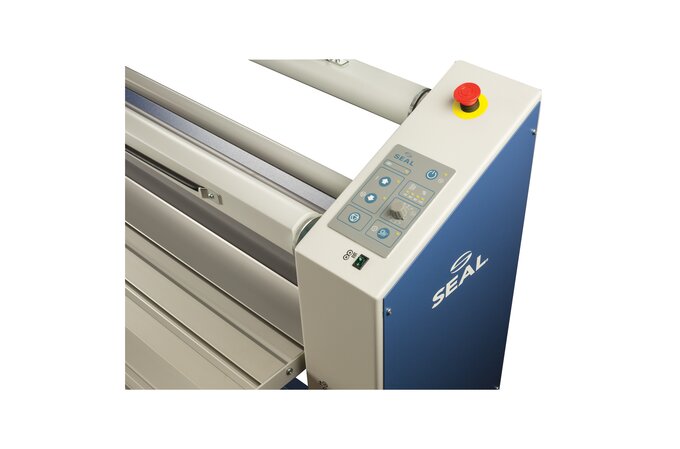

- Easy to use ergonomic control panel
- Optional rear power take up for roll-to-roll applications including vehicle wraps
- Optional image guide ensures perfect alignment and flat lamination
- Optional roll trough keeps rolled prints in place before and during lamination
- Optional leveling feet keeps the laminator stable for the highest quality finished product
Product Specifications
-
Laminator Type - Wide Format
-
Dimensions - 52" x 82" x 27"
-
Core Diameter - 3"
-
Laminating Speed - 16.4' per minute
-
Maximum Document Width - 61"
-
Film Type - Pressure Sensitive 3" Core Media and Films
-
Roll Length - 200'
-
Roll Width - 61"
-
Thickness (mil) - 3.5
-
Accessories Included - No
-
Cold Lamination - Yes
-
Thermal Lamination - No
-
Pack Quantity - 1
-
Dated_Indicator - Undated
-
Material - Steel
