$295/month UV 64" Mimaki 1 YR WARRANTY UJV100-160 UV-LED Roll to Roll UV Printer With Dot Adjustment System (DAS)

Lease To Own For Only:

Sale price: $295
Regular price: $349

Per Month

Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

Product Information

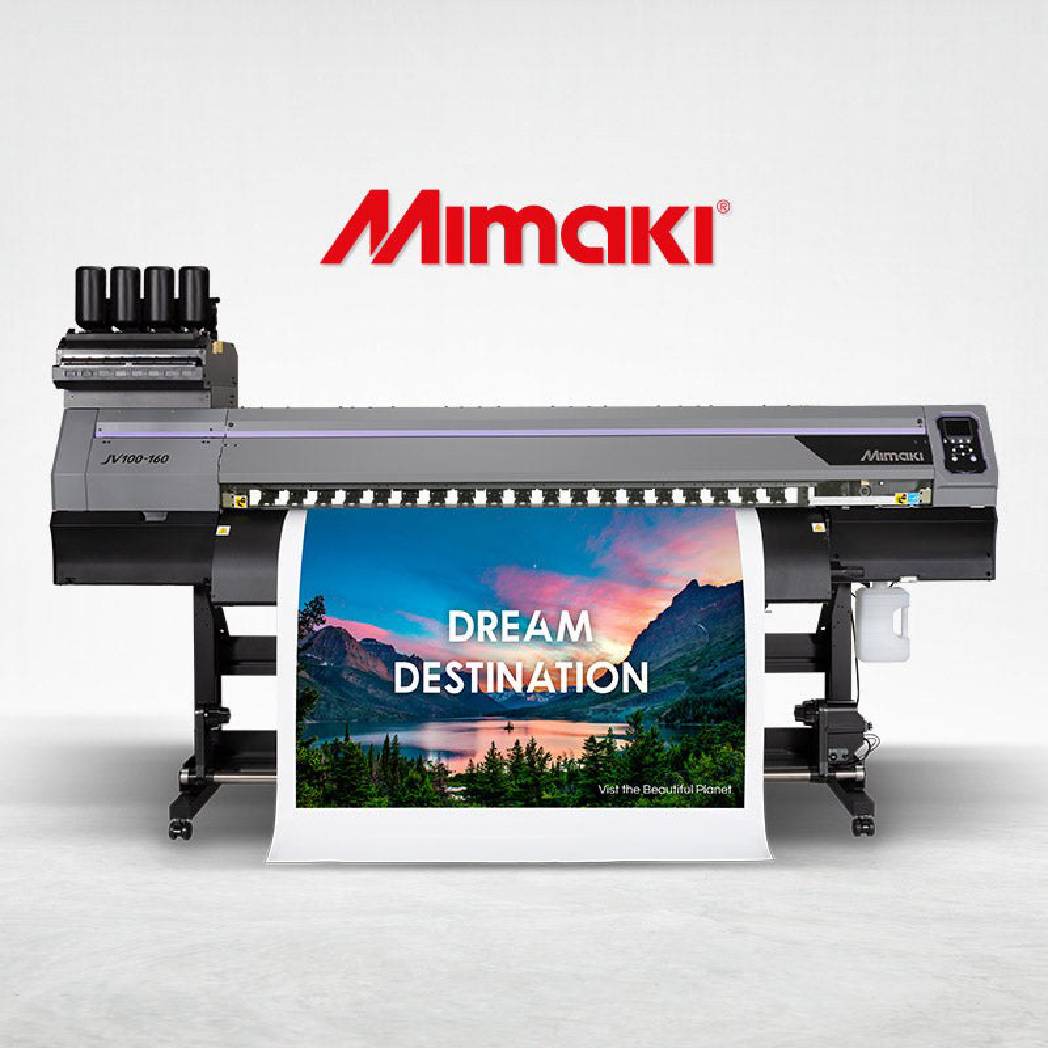

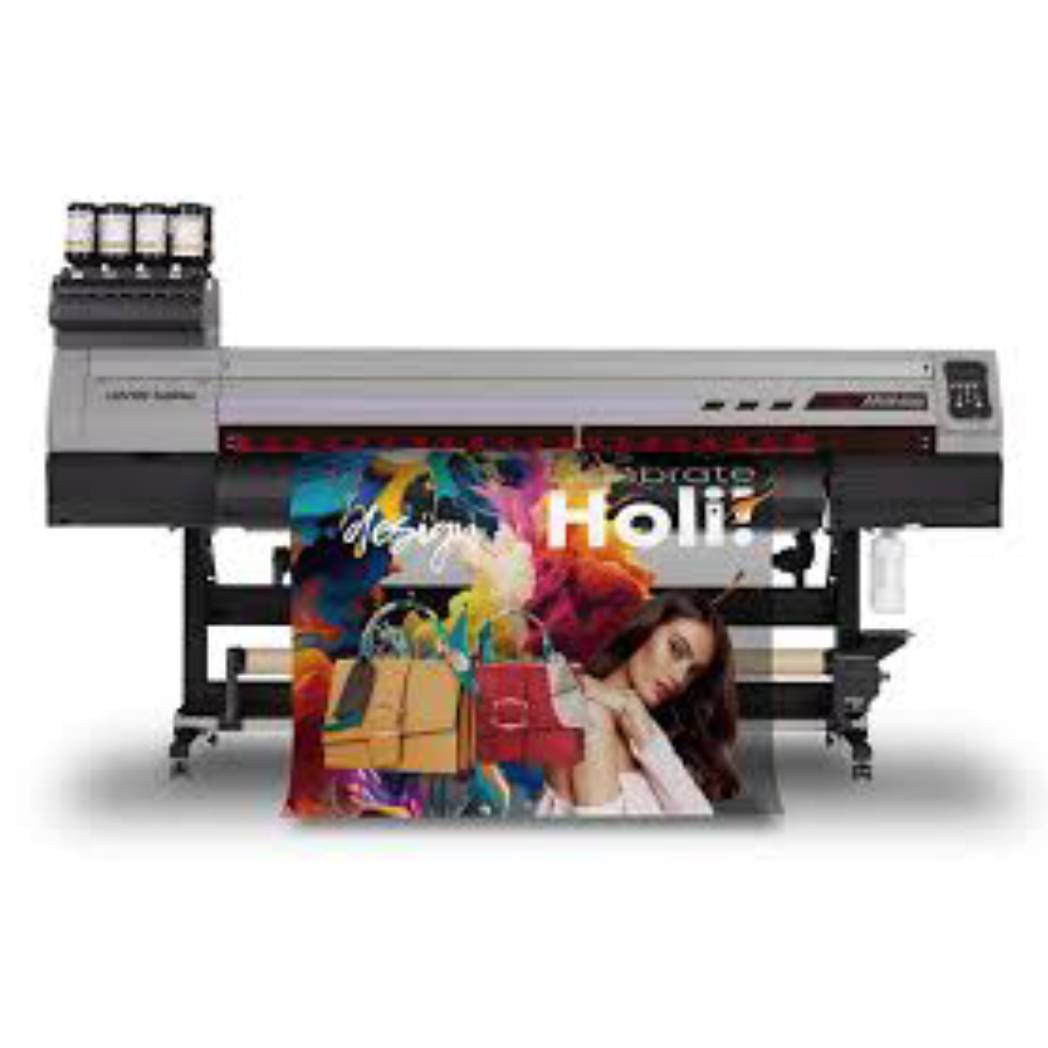

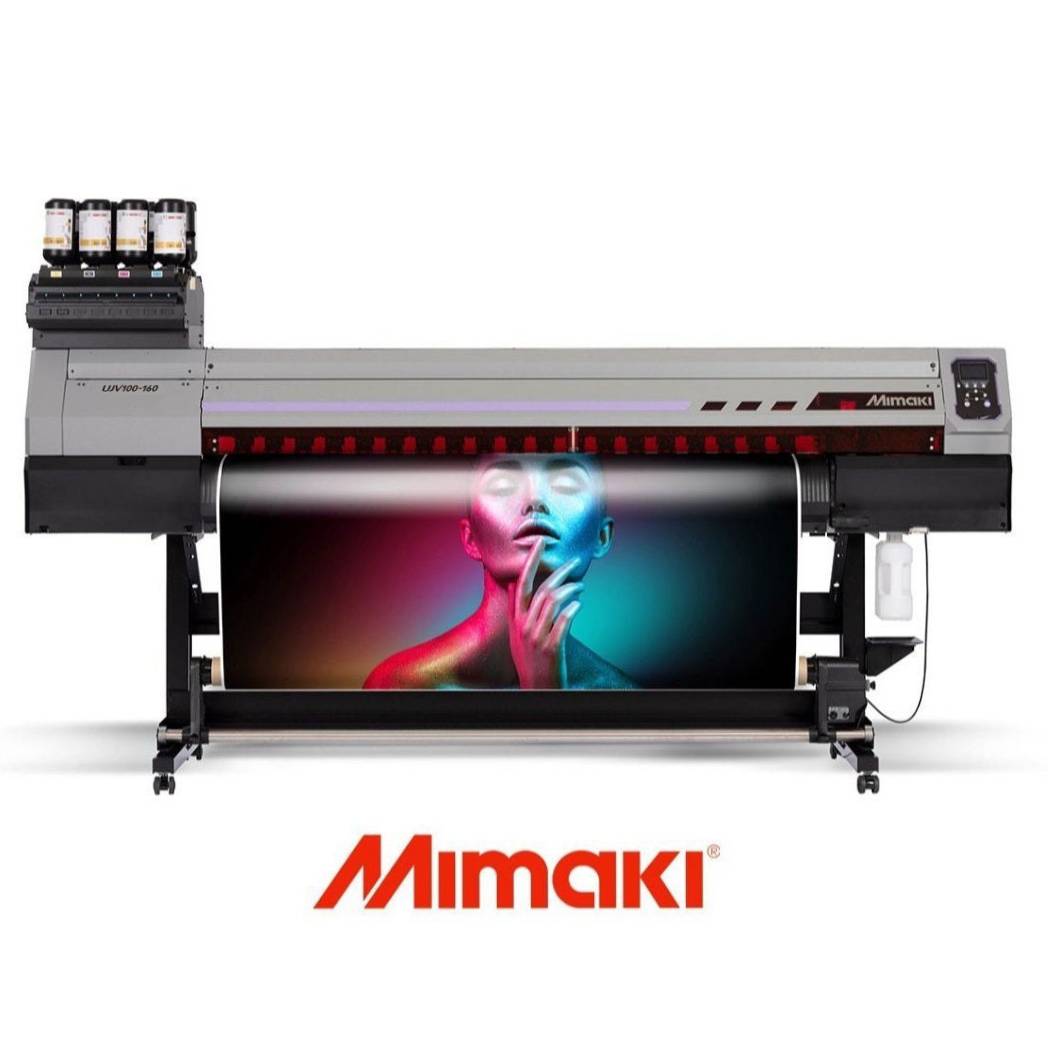

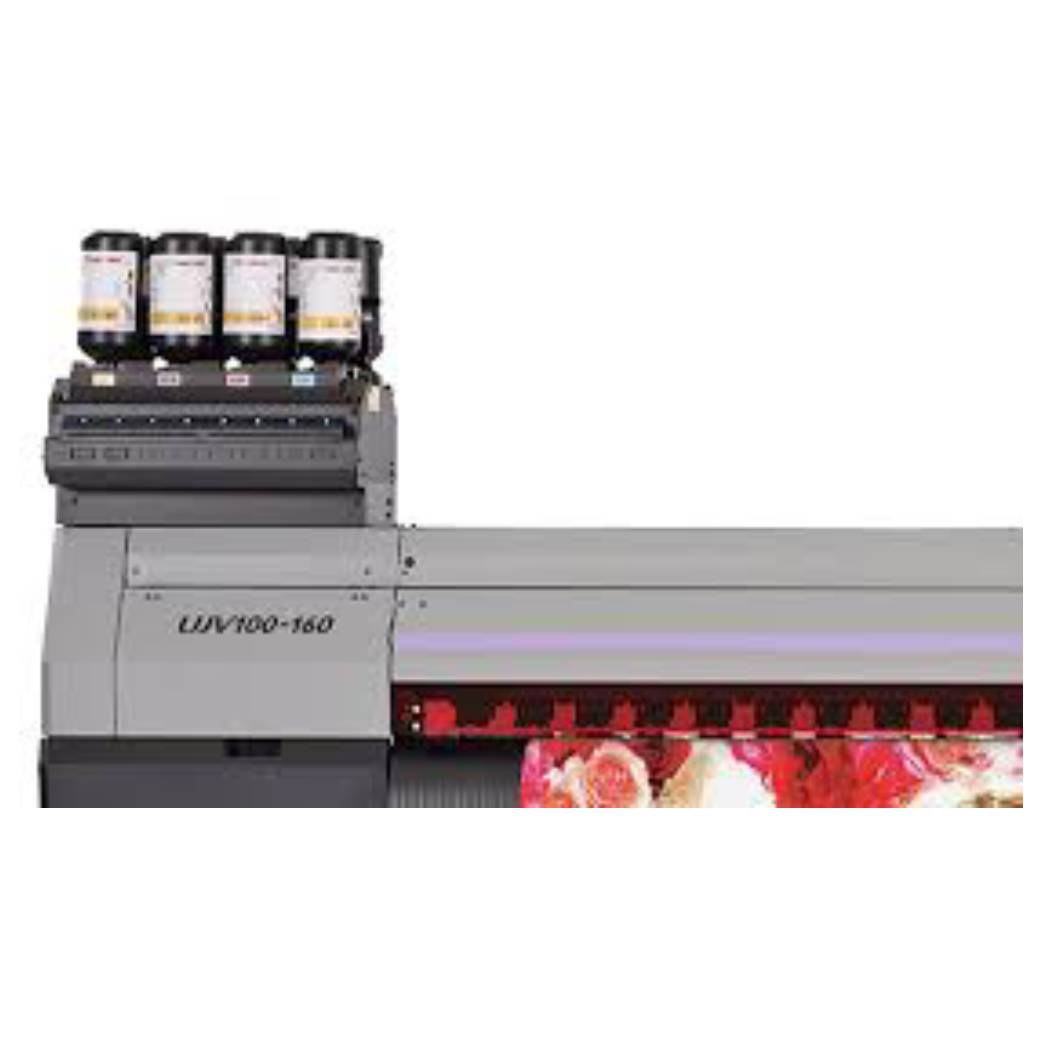

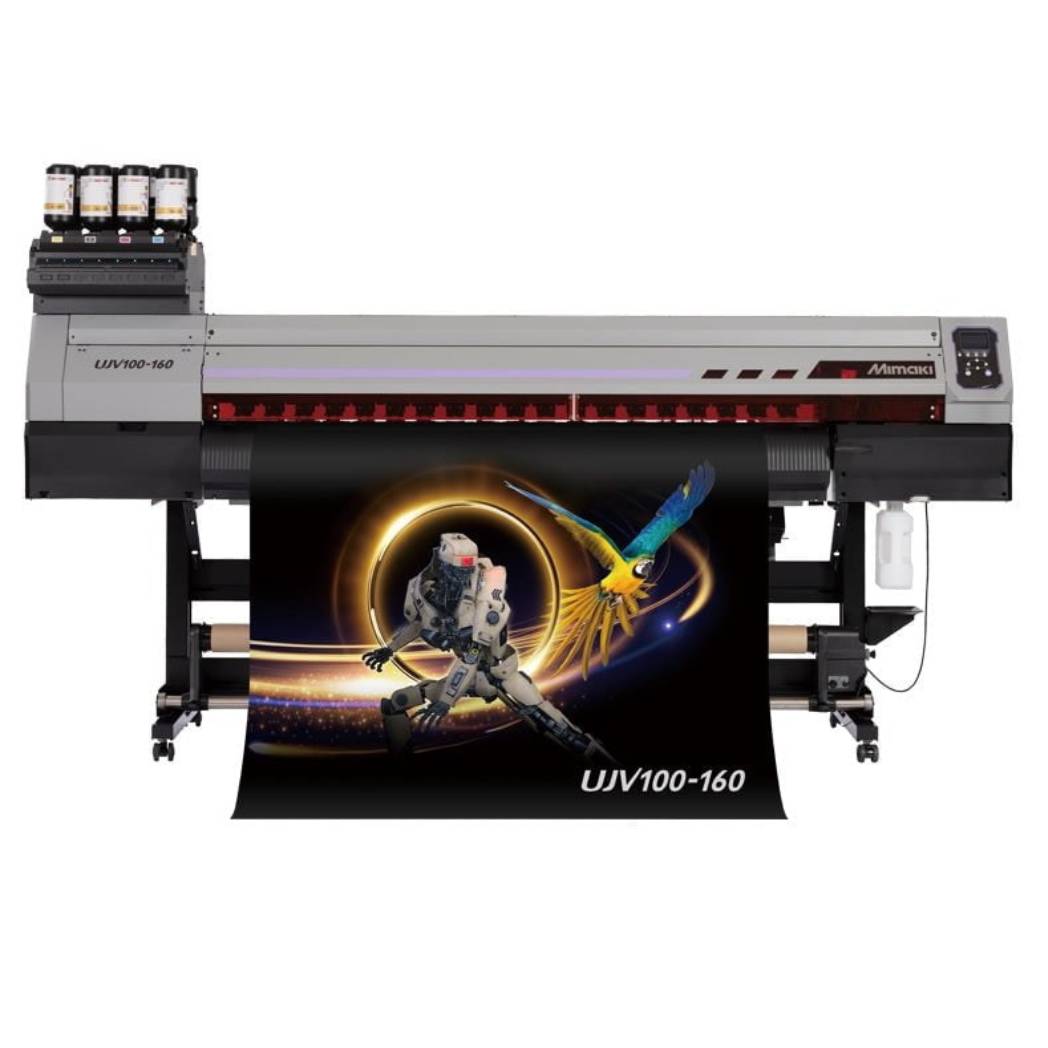

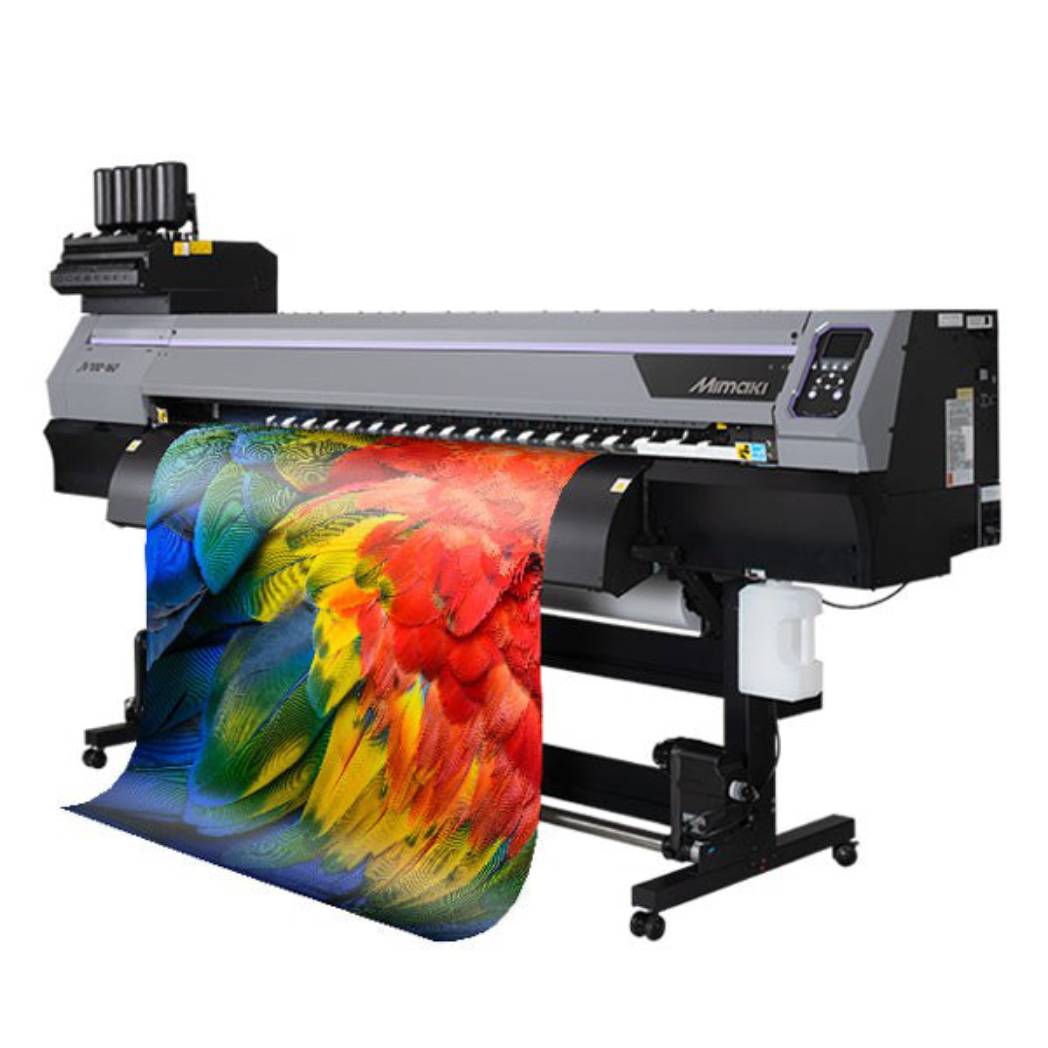

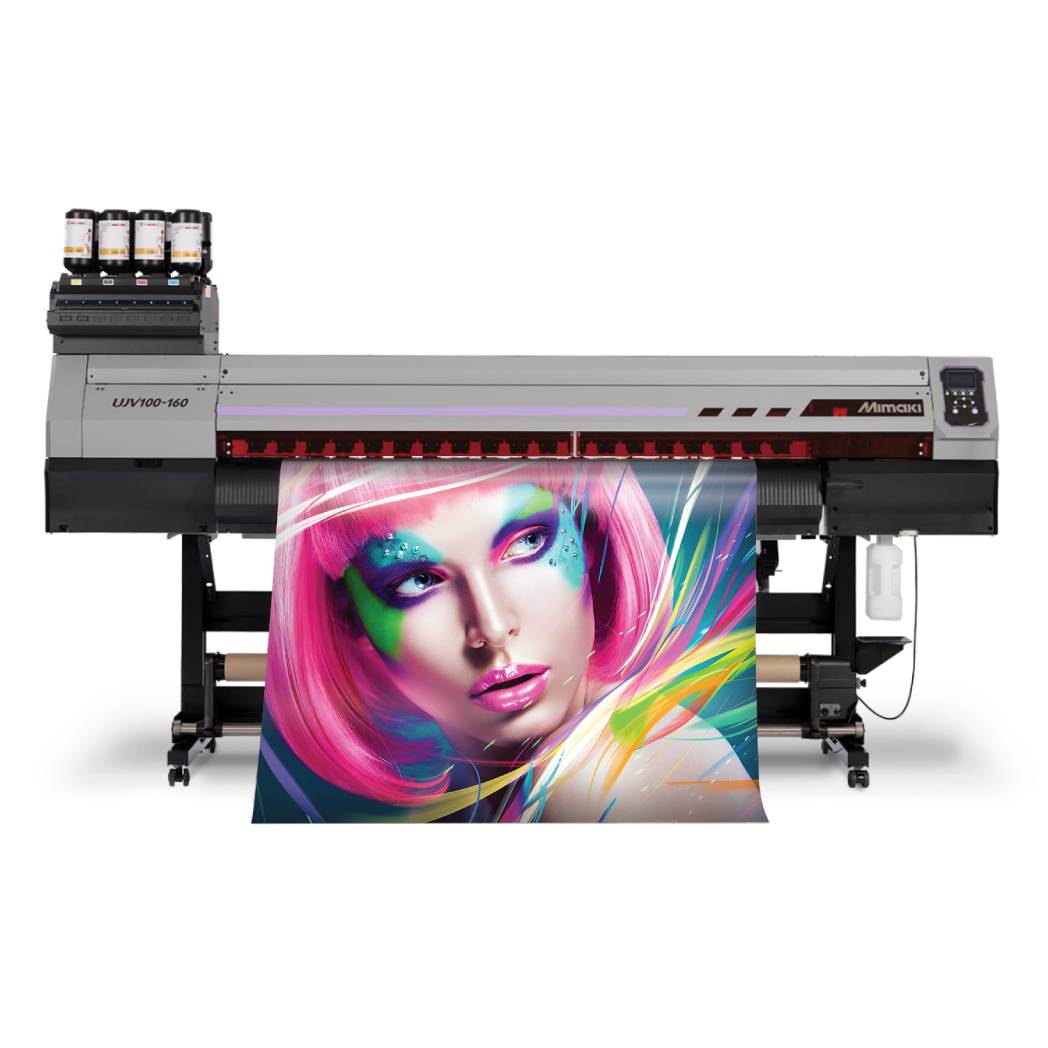

64" Mimaki UV PRINTER UJV100-160

The perfect machine for Canvas Fine Art printing, Wall Drops, Floor and Car wrapping.

Flexible Open Financing options are available. Get pre-qualified in seconds - Start now!

64" Inch UV-LED Roll-to-Roll Inkjet Printer With Dot Adjustment System (DAS)

The UJV100-160 is a competitively priced UV-LED roll-based printer with all the productivity features of higher-end models. It features Mimaki instant-dry UV-LED inks that adhere to various media, including paper, PET film, fabric, vinyl, and more, making post-printing handling and finishing effortless. UV light makes UV-LED inks cure instantly, dramatically increasing printing speed and efficiency. This multi-purpose machine is suited for a variety of applications while keeping costs low and offers:

160 cm width, with print speeds up to 23m2/h
High media versatility with unparalleled scratch resistance
Eco-friendly, six-color ink set in 1-liter bottles: C, M, Y, K, W, Cl
Instantly cured prints for shorter turnarounds and additional cost savings
New Dot Adjustment System (DAS) automates dot position and feeding corrections, reducing manual intervention and workflow interruption

Features

1. Latest features that achieve Mimaki quality

DAS (Dot Adjustment System) NEW!

The UJV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.

When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary.
As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.

Mimaki technology enables stable and high-quality print

MAPS4

Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

MAPS ON
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.

MAPS OFF
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.

NCU & NRS automatically detects missing nozzles and performs recovery

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.

2. High productivity at a competitive price

High-speed printing at a maximum of 23m²/h

Ink set: 4C+W Media: Transparent PVC (2 Layers）

Because no drying time is required, it is possible to perform installation or lamination immediately after printing.

Because UV-curable ink is cured instantly by irradiating UV (ultraviolet) light immediately after printing, a drying process is not needed. Post-processing and sign applying are possible immediately after printing, which shortens production time and improves productivity, allowing you to promptly handle orders of short delivery time.

For UJV100-160: No drying time. Same-day installation orders can be handled.

3. Capability of supporting various media types and value-added prints, achieved by using UV-curable ink

Print on a wide variety of materials, including not only PVC and tarpaulin but also paper with no acceptance layer, PET film, and fabric, is enabled. Value-added print such as two-layer print, in which white ink is used for transparent PET film, and varnish print using clear ink, can also be handled.

Specifications

Print head

On-demand piezo head (2 staggered layout)

Print resolution

360 dpi, 720 dpi, 900 dpi, 1200 dpi

Ink

Type/Colour

UV-curable ink LUS-170 (C, M, Y, K, W, Cl)
UV-curable ink LUS-210 (C, M, Y, K, W, Cl)

Capacity

1L bottle

Maximum print width

1,610 mm (63.4 in)

Media

Maximum width

1,620 mm (63.8 in)

Thickness

1 mm or lower

Roll weight

45 kg or less

roll diameter

φ250 mm or less

Power supply

AC 200–240V ± 10%　50/60Hz ±1 Hz, 15 A or less

Certifications

VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, ENERGY STAR®, RCM, EAC

Operational environment

Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)

Weight

167 kg (368.2 lb)

Dimensions (W×D×H)

2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)

Interface

USB2.0 / Ethernet 1000BASE-T

Price before tax and a lease down payment.

Ask our Print Specialists for help · 905-326-2886

Pickup Location at 1300 Alness St. Unit 1A, Concord, ON
