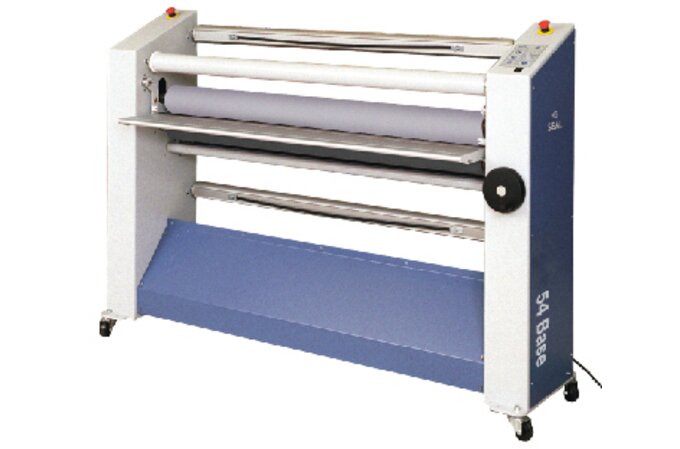

The SEAL 54 Base is a 55" wide mounting laminator that includes a heat assisted roller and 2" nip opening . Featuring auto-grip technology and swing-up feed table, the 54 Base promises high performance at an affordable price. roll trough mounted to the table. ETL certified in US/Canada.
- Heat assisted top roller for superb lamination performance
- 55” working width to handle a wide range of media
- 55” working width to handle a wide range of media
- Maximum operating speed of 16.4’/minute
- 2” nip with manual adjustment suitable for working with a sled for road signs
- Enhanced take-up featuring auto-grip technology
- Swing-up feed table to facilitate easy set up
- Foot switch for hands free operation
- Self checking safety eyes for increased operator safety
- Easy to use ergonomic control panel
- Optional image guide ensures perfect alignment and flat lamination
- Optional roll trough keeps rolled prints in place before and during lamination
- Optional leveling feet keeps the laminator stable for the highest quality finished product
Product Specifications
-
Laminator Type - Wide Format
-
Dimensions - 52.2" x 75" x 21.7"
-
Core Diameter - 3"
-
Laminating Speed - 16.4' per minute
-
Maximum Document Width - 55"
-
Film Type - Pressure Sensitive 3" Core Media and Films
-
Roll Length - 200'
-
Roll Width - 54"
-
Thickness (mil) - 3.5
-
Accessories Included - No
-
Cold Lamination - Yes
-
Thermal Lamination - No
-
Pack Quantity - 1
-
Dated_Indicator - Undated
-
Material - Steel
