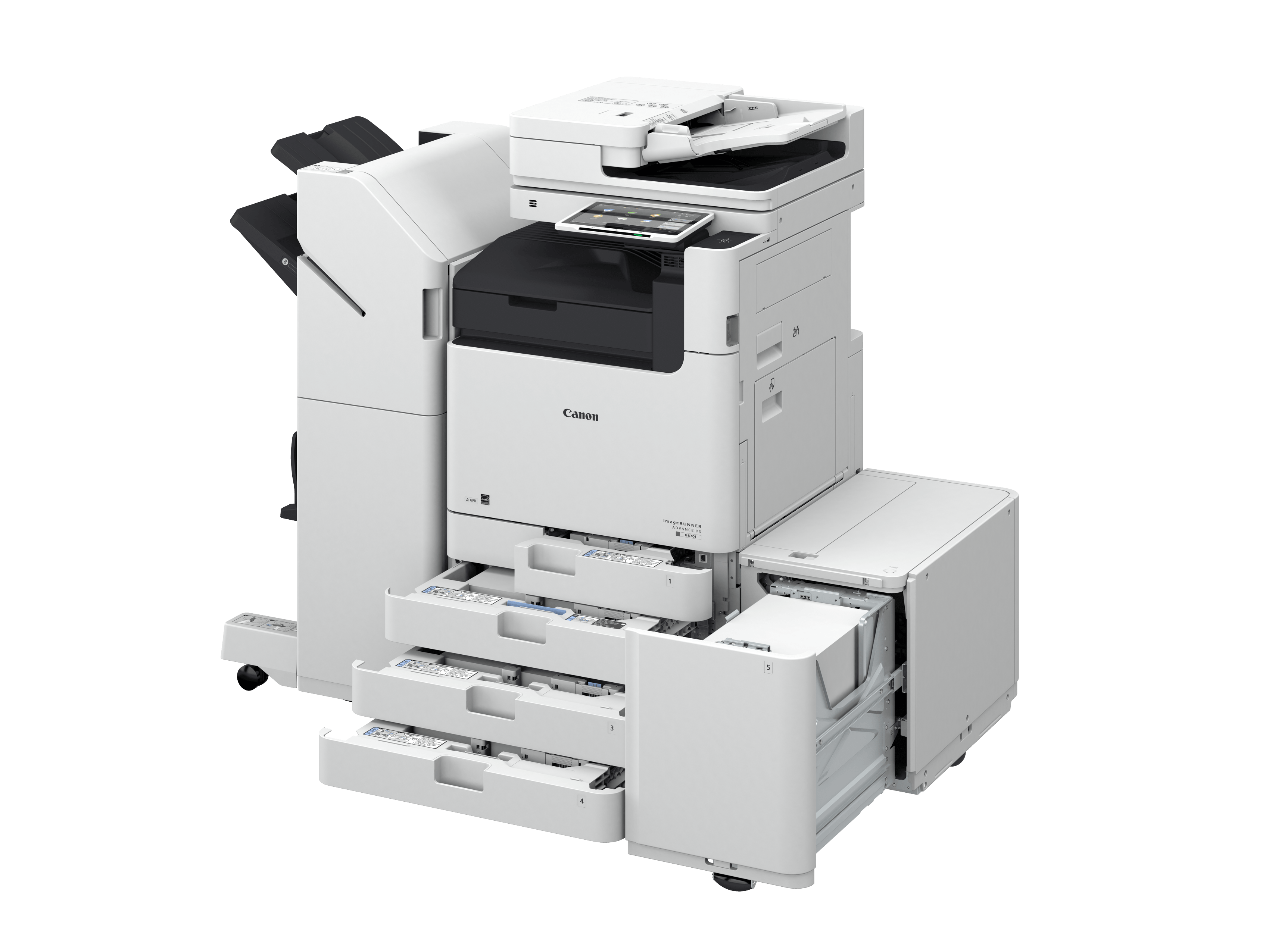

Monochrome Laser Multifunctional

Standard: Print, Copy, Scan, Send, Store

Optional: Fax

1.75 GHz Dual Core Processor

10.1" TFT LCD WSVGA Colour Touch-panel

5.0 GB RAM

Standard: 256 GB

Maximum: 1 TB

Network

Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

Optional: NFC, Bluetooth Low Energy

Others

Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)

Optional: Copy Control Interface

Standard: 1,200 Sheets

Maximum: 6,350 Sheets

Standard: Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass

Optional: Dual 550-Sheet Paper Cassettes (Cassette Feeding Unit-AM1), 2,450-Sheet High Capacity Paper Cassette (High Capacity Cassette Feeding Unit-C1), 2,700-Sheet Paper Deck (Paper Deck Unit-F1)

Standard: 250 Sheets

Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)

Standard: Collate, Group

With Finishers: Collate, Group, Offset, Staple, Saddle-Stitch, Hole Punch, Staple Free Stapling, Staple On Demand, C-Fold (With Booklet Fiinsher AB2 and Paper Folding Unit L1) - (Finishing capabilities vary depending on the options connected.)

Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope (Envelope Feeder Attachment (standard) is required)

Multi-purpose Tray: Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

Upper Cassette: Letter, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 8-1/2")

Lower Cassette: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 12" x 18")

Multi-Purpose Tray: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8" x 3-1/2" to 12-5/8" x 18"), Custom Size/Free Size (3-7/8" x 5-1/2" to 12-5/8" x 18")

Cassettes: 14 lb. Bond to 140 lb. Cover (52 to 256 g/m²)

Stack Bypass:: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m²)

Duplexing: 14 lb. Bond to 140 lb. Index (52 to 256 g/m²)

Letter: Up to 60 ppm

Letter-R: Up to 36 ppm

Legal: Up to 34 ppm

11" x 17": Up to 32 ppm

12" x 18": Up to 20ppm

From Power On: Approx. 6 Seconds

From Sleep Mode: 6 Seconds or Less

Quick Startup Mode: Approx. 4 Seconds

Main Unit and Standard ADF: 24-3/8" x 28-1/2" x 36-7/8" (620 x 722 x 937 mm)

Basic: 44-7/8" x 45-3/4" (1,138 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)

Fully Configured: 73-1/2" x 45-3/4" (1,866 x 1,162 mm ) (Staple Finisher-AB1 or Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

1200 x 1200

UFR II, PCL^® 6, Adobe^® PS^® 3

PDF, TIFF, JPEG, EPS (can be printed directly only from the Remote User Interface), XPS

A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.

PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese - requires the optional PCL International Font Set-A1), Barcode Fonts (requires the optional Barcode Printer Kit-D1)

PS Fonts: 136 Roman

UFR II/PS: Windows^® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, Mac OS X (10.11 or later)

PCL: Windows^® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PPD: Windows^® 7/8.1/10, Max OS X (10.10 or later)

Note: Other operating systems and environments including AS/400/UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.

Approx. 2.9 Seconds or Less

600 x 600

Up to 9,999 Copies

25%-400% (1% Increments)

25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%

Single-pass Duplexing Automatic Document Feeder

Up to 200 Sheets (20 lb. Bond)

11" x 17", Legal, Letter, Letter-R, Statement, Statement-R, Custom size (2-3/4" x 5-1/2" to 12" x 17")

Single-sided/Double-sided scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm)

Sheet, Book, 3-Dimensional Objects

Colour Network ScanGear2 for both Twain and WIA

Supported OS: Windows^® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Scan for Copy: 600 x 600

Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600

Scan for Fax: 600 x 600

A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.

Standard: E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box

Optional: Super G3 Fax, IP Fax

LDAP (2,000)/Local (1,600)/Speed dial (200)

Push: Up to 600 x 600

Pull: Up to 600 x 600

File: FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV

Email: SMTP, POP3

TIFF, JPEG, PDF (Compact, Searchable, Apply Policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Super G3: 33.6 Kbps

G3: 14.4 Kbps

MH, MR, MMR, JBIG

400 x 400, 200 x 400, 200 x 200, 200 x 100

Statement-R to 11" x 17"

Up to 30,000 Pages (2,000 Jobs)

Max. 200

Max. 199 Dials

Max. 256 Addresses

Yes

100 User-In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 10,000 Maximum Pages Stored (2,000 Jobs Stored)

Communication Protocol: SMB or WebDAV Supported

Supported Client PC: Windows (Windows 8.1/10)

Concurrent Connections (Max.)

SMB: 64

WebDAV: 3 (Active Sessions)

Approx. 16 GB (Standard HDD), Approx. 480 GB (With Optional 1 TB HDD)

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express* (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

Optional: uniFLOW

*: No charge for this solution, however activation is required.

Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send-Virus Concerns for E-mail Reception

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print18), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle^® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)

Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Temperature: 10 to 26^ºC

Humidity: 20 to 80% RH (Relative Humidity)

110-127V AC, 60Hz, 12A

Maximum: Approx. 1,800 W

Standby: Approx. 48.4 W (Reference Value [measured one unit])

Sleep Mode: Approx. 0.8 W (Sleep mode not available in all circumstances due to certain settings)

Typical Electricity Consumption (TEC) Rating: 0.74kWh (Based on ENERGY STAR® Product Specification for Imaging Equipment Version 3.0)

ENERGY STAR® Certified

GPR-63 Toner BK

71,500 Pages
