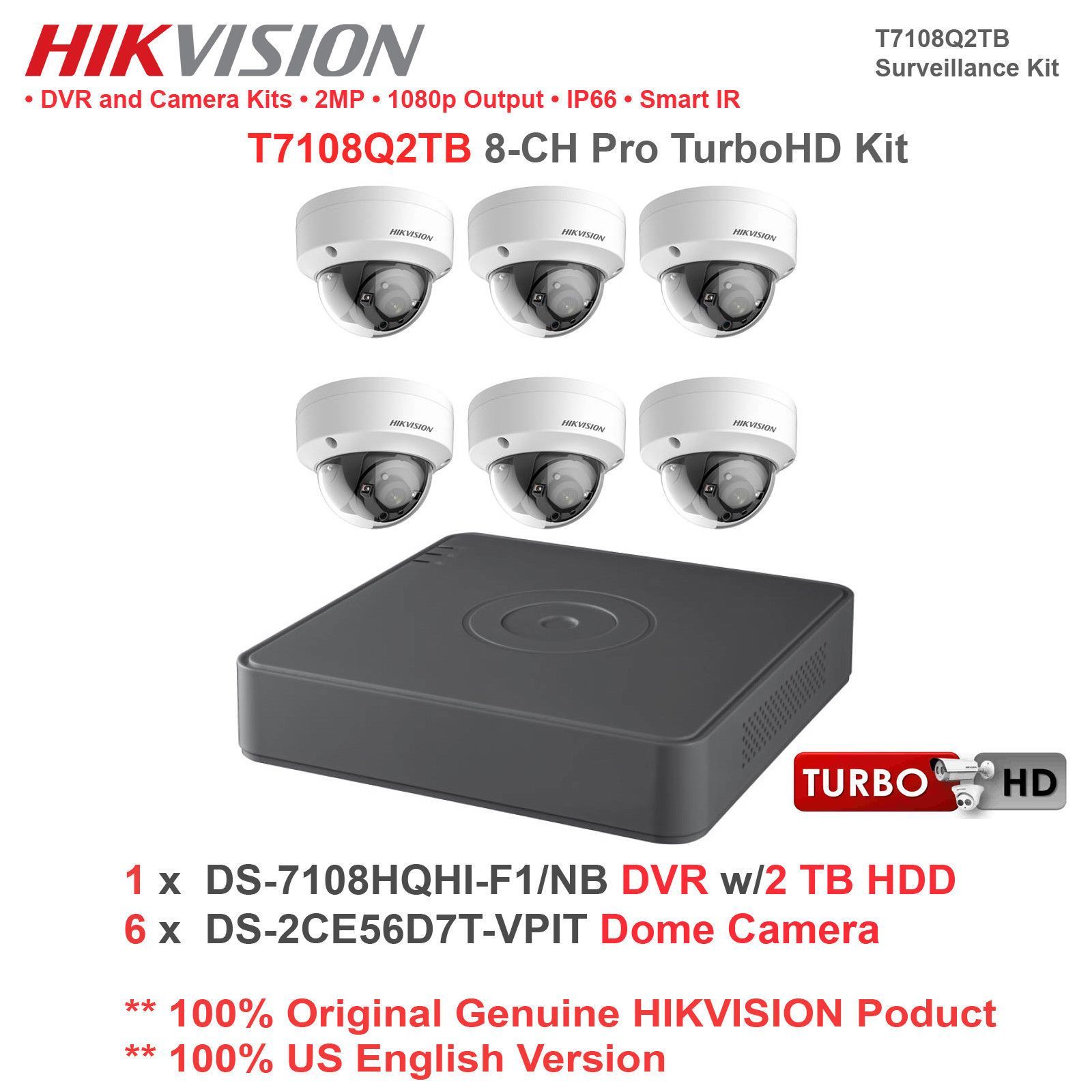

| Model |
DS-7108HQHI-F1/NB |
|
Video / Audio input
|
|
| Video Compression |
H.264 |
| Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω) |
| HD-TVI Input |
1080p/25 Hz, 1080p/30 Hz, 720p/25 Hz, 720p/30 Hz, 720p/50 Hz, 720p/60 Hz |
| CVBS |
Supported |
| Audio Compression |
G.711u |
| Audio input |
1-ch, RCA (2.0 Vp-p, 1 K Ω) |
|
Network
|
|
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Video/Audio output
|
|
| HDMI/VGA Output |
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Encoding Resolution |
1080p (non-real-time)/720p/VGA/WD1/4CIF/CIF; 720p/VGA/WD1/4CIF/CIF |
| Frame Rate |
Main stream: 1/16 fps to real time frame rate
Sub-stream: WD1/4CIF @ 12 fps, CIF/QVGA/QCIF @ 1/16 fps to real time frame rate |
| Video Bitrate |
32 Kbps to 6 Mbps |
| Audio Output |
1-ch, RCA (linear, 1K Ω) |
| Audio Bitrate |
64 Kbps |
| Dual-Stream |
Supported |
| Stream Type |
Video, video and audio |
| Synchronous Playback |
8-ch |
|
Hard disk
|
|
| SATA |
1 SATA interface |
| Capacity |
2 TB included |
|
External interface
|
|
| Network interface |
1; 10M/100Mbps self-adaptive Ethernet interface |
| USB interface |
2 × USB 2.0 |
|
General
|
|
| Power Supply |
12 VDC |
| Consumption |
≤12 W
|
| Working temperature |
14° F to 131° F (-10° C to +55° C) |
| Working humidity |
10%~90% |
| Dimensions (W x D x H) |
7.9" × 7.9" × 1.8" (200 mm × 200 mm × 45 mm) |
| Weight (approx.) |
≤1.8 lb (0.8 kg) |
(Designs and specifications are subject to change without notice.)
| Camera Specification |
| Model |
DS-2CE56D7T-VPIT |
|
Camera
|
|
| Image Sensor |
2 MP CMOS image sensor |
| Minimum Illumination |
0.034 lux @ ƒ/2.0, AGC on, 0 lux with IR |
| Effective Pixels |
1928 x 1088 |
| Shutter speed |
1/25 (1/30)s to 1/50,000s |
| Lens |
2.8 mm ; angle of view: 103° |
| Lens Mount |
M12 |
| HD Video Output |
1 analog HD output |
| Video Frame Rate |
12 fps with included DVR |
| S/N Ratio |
＞62 dB |
| Synchronization |
Internal synchronization |
| Angle Adjustment |
Pan: 0° to 340°; tilt: 0° to 75°; rotate: 0° to 355° |
| Day & Night |
ICR |
|
Menu
|
|
| AGC |
Supported |
| UTC OSD |
Supported |
| D/N Mode |
Color/BW/Smart |
| White Balance |
ATW/MWB |
| BLC |
Supported |
| Functions |
Wide Dynamic Range, digital noise reduction, mirror, Smart IR |
|
General
|
|
| Operating Conditions |
-40° C to 60° C (-40° F to 140° F), humidity 90% or less (non-condensing) |
| Power Supply |
12 VDC ±15% |
| Power Consumption |
Maximum 5 W
|
| Ingress Protection level |
IP66 |
| IR Range |
66 ft (20 m) |
| Impact Protection |
IK10 |
| Communication |
UTC OSD |
| Dimensions |
φ4.3" × 3.25" (φ111 mm × 82.5 mm) |
| Weight (approx.) |
Approximately 0.77 lb (350 g) |
(Designs and specifications are subject to change without notice.)
|
|
