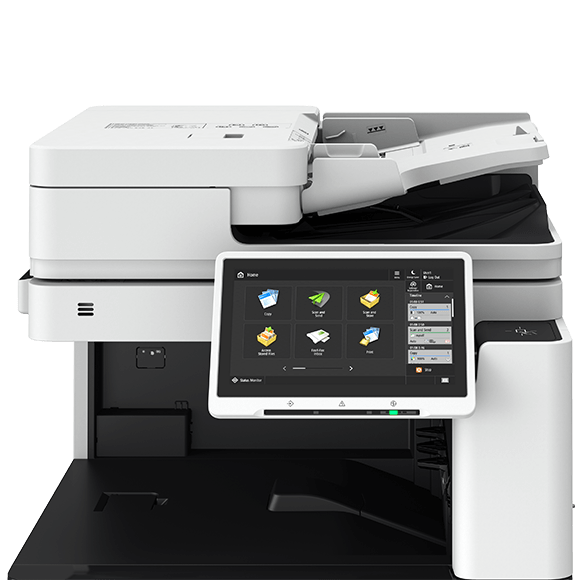

Colour Laser Multifunctional

Standard: Print, Copy, Scan, Send, Store
Optional: Fax

10.1" TFT LCD WSVGA Colour Flat-panel

5.0 GB RAM

Standard: (SSD) 256 GB

Optional: (SSD) 250GB, 1 TB

Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

Optional: NFC, Low Bluetooth Energy

Others

Standard: USB 2.0 (Host) x1, USB 3.0 x1 (Host), USB 2.0 x1 (Device)

Optional: Serial Interface, Copy Control Interface

Standard: 250 Sheets

Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)

Standard: Dual 550-sheet Paper Cassettes,100-sheet Stack Bypass
Optional: Dual 550-Sheet Paper Cassettes (Cassette Feeding Unit-AM1), 2,450-Sheet, High Capacity Paper Cassette (High Capacity Cassette Feeding Unit-C1), 2,700-Sheet Paper Deck (Paper Deck Unit-F1)

Standard: 1,200 Sheets
Maximum: 6,350 Sheets

Standard: Collate, Group
With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Staple Free Stapling, Staple On Demand, C-Fold (With Booklet Finisher AB2 and Paper Folding Unit L1), Z-Fold (With Paper Folding Unit L1)

Multi-Purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
Cassettes: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope

Upper Cassette: Letter, Executive, Statement-R, Envelope [No.10 (COM10), DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 8-1/2")
Lower Cassette: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 12" x 18")
Multi-Purpose Tray: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8" x 3-1/2" to 12-5/8" x 18"), Custom Size/ Free Size (3-7/8" x 5-1/2" to 12-5/8" x 18")

Cassettes: 14 lb. Bond to 140 lb. Index (52 to 256 g/m²)
Stack Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m²)
Duplexing: 14 lb. Bond to 140 lb. Cover (52 to 256 g/m²)

Up to 50 ppm (Letter); Up to 30 ppm (Letter-R); Up to 29 ppm (Legal); Up to 27 ppm (11" x 17")

From Power On: Approx. 6 Seconds
From Sleep Mode: Approx. 6 Seconds
Quick Startup Mode: Approx. 4 Seconds

24-3/8" x 28-1/2" x 36-7/8" (620 x 722 x 937 mm)

Basic: 44-7/8" x 45-3/4" (1,138 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
Fully Configured: 73-1/2" x 45-3/4" (1,866 x 1,162 mm ) (Staple Finisher-AB1 or Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

Approx. 231.5 lb. (105 kg)

1200 x 1200

UFR II, PCL6, Adobe PS 3

PDF, TIFF, JPEG, EPS, XPS

A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Universal Print by Microsoft, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your
requirements. Please contact your sales representative for further information.

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese), Barcode Fonts
PS fonts: 136 Roman

UFRII/PS: Windows 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X (10.11 or later)
PCL: Windows 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019
PPD: Windows 7/8.1/10, Mac OS X (10.10 or later)

As fast as 3.3 seconds (BW)
As fast as 4.9 seconds (Colour)

600 x 600

Up to 999

25%-400% (1% Increments)

25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%

Single-pass Duplexing Automatic Document Feeder

Up to 200 Sheets (20 lb. Bond)

11" x 17", Legal, Letter, Letter-R, Statement, Statement-R,
Custom Size: 2-3/4" x 5-1/2" to 12" x 17"

1-sided scanning: 13.3 lb. bond to 80 lb. cover (50 to 220 gsm)
2-sided scanning: 13.3 lb bond to 81.4 lb cover (50 to 220 gsm)

Sheet, Book, 3-Dimensional Objects

Colour Network ScanGear2 for both Twain and WIA Supported OS: Windows 7/8.1/10 Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016

Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.

Single-sided Scanning: 135/135 (300 dpi), 80/80 (600 dpi)
Double-sided Scanning: 270/270 (300 dpi), 160/90 (600 dpi)

Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP, WebDAV, Mail Box

Optional: Super 3 FAX, IP Fax

LDAP (2,000)/Local (1,600)/Speed Dial (200)

Push: Up to 600 x 600 dpi

Pull: Up to 600 x 600 dpi

File: FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV

Email: SMTP, POP3

TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, User Signature, PDF A/1-b, Limited Colour, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Super G3: 33.6 Kbps
G3: 14.4 Kbps

400 x 400, 200 x 400, 200 x 200, 200 x 100

Statement-R to 11" x 17"

Up to 30,000 Pages (2,000 Jobs)

Max. 200

Max. 199 Dials

Max. 256 Addresses

Yes

100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 10,000 Pages (2,000 Jobs Stored)

Communication Protocol: SMB or WebDAV Supported

 Supported Client PC: Windows (Windows 8.1/10)

Concurrent Connections (Max.)

SMB: 64

WebDAV: 3

Approx. 16 GB (Standard HDD), Approx. 480 GB (With Optional 1 TB HDD)

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN, Login Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LifeCycle Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/WiredLAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disapling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send-Virus Concerns for E-mail Reception

Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)

Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data ogging, Security Policy Setting

Temperature: 10 to 30^ºC

Humidity: 20 to 80% RH (Relative Humidity)

110-127V, 60Hz, 10A

Maximum: Approx. 1,800 W
Standby: Approx. 56.1 W
Sleep Mode: Approx. 0.8 W
Typical Electricity Consumption (TEC) Rating: 0.57 kWh

ENERGY STAR^® Certified

GPR-61 Toner BK/C/M/Y

GPR-61L Toner C/M/Y

GPR-61 Toner BK: 71,000 Pages

GPR-61 Toner C/M/Y: 60,000 Pages

GPR-61L Toner: 26,000 Pages
