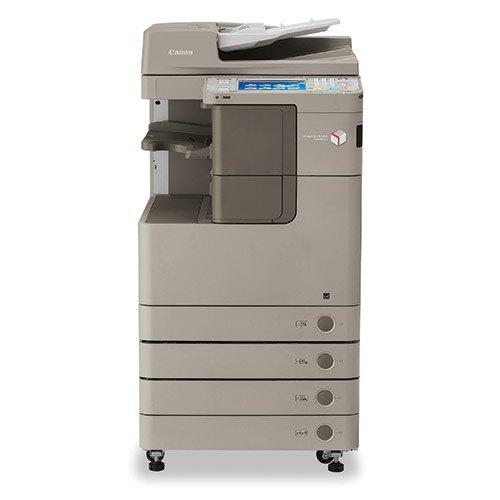

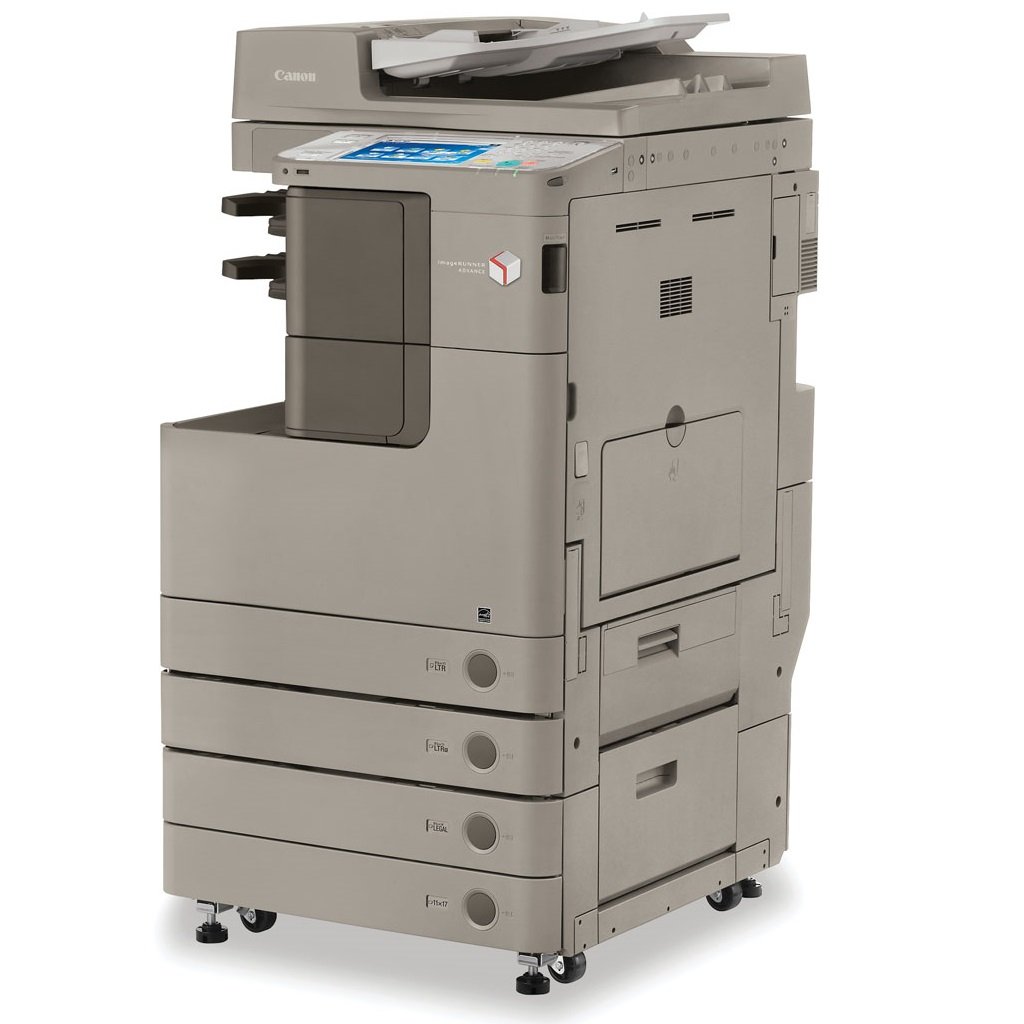

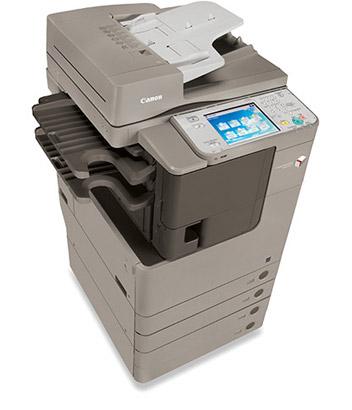

imageRUNNER ADVANCE 4251
|
| MAIN UNIT |
|
| SYSTEM TYPE |
Digital Multifunction Imaging System |
| FUNCTIONS |
Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL, Adobe® PostScript® 3™), Fax (Up to 4 Lines) |
| OPERATION PANEL |
8.4" SVGA Full-Color TFT Screen |
| MEMORY |
Standard: 1.25GB RAM
Maximum: 1.75GB RAM |
| HARD DISK DRIVE |
Standard: 160GB
Maximum: 1TB |
| MIRRORING HARD DISK DRIVE |
Optional (160GB, 1TB), Method: RAID1 |
| NETWORK INTERFACE CONNECTION |
Standard: 10/100/1000Base-TX
Optional: Wireless LAN |
| OTHER INTERFACE |
Standard: USB 2.0 (Host) x 2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host) x 2], Copy Control Interface |
| COPY / PRINT SPEED (BW) |
Letter: Up to 51 ppm
Legal: Up to 25 ppm
11" x 17": Up to 25 ppm |
| PAPER SOURCES (20 lb. Bond) |
Standard: Dual 550-sheet Paper Cassettes, 80-sheet Stack Bypass
Optional: Dual 550 Sheet Paper Cassettes, 2,700-sheet Paper Deck
Maximum: 4,980 Sheets |
| OUTPUT PAPER CAPACITY (20 lb. Bond) |
Standard: 250 Sheets (Inner Tray)
Maximum: 3,100 Sheets (w/Staple Finisher or Booklet Finisher) |
| OUTPUT PAPER SIZES |
Cassette 1: Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 15-3/8")
Cassettes 2/3/4: 11" x 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 17")
Bypass: 11" x 17", Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 17")
Other Option: Envelope Feeder Attachment** (COM10 No.10, Monarch, DL, ISO-C5) |
| ACCEPTABLE PAPER WEIGHTS |
Cassettes: 16 lb. Bond to 34 lb. Bond (60 to 128g/m2 )
Bypass: 14 lb. Bond to 80 lb. Cover (52 to 220g/m2 ) |
| DUPLEXING |
Paper Size: Standard Automatic Trayless Duplexing (Executive to 11" x 17")
Paper Weights:14 lb. Bond to 28 lb. Bond (52 to 105g/m2 ) |
| SPECIAL MEDIA SUPPORT |
Tracing, Labels, Transparency, and Envelopes |
| WARM-UP TIME |
From Power On: 30 Seconds
From Sleep Mode: 10 Seconds
Quick Startup Mode: 7 Seconds*** |
| POWER REQUIREMENTS / PLUG |
120V AC, 60Hz, 10.4A/NEMA 5-15P |
| POWER CONSUMPTION |
Maximum: 1,500W
Sleep Mode: 0.9W |
| DIMENSIONS (W X D X H) |
35-1/2" x 22-1/4" x 27-7/8" (909mm x 565mm x 708mm)♦
|
| INSTALLATION SPACE (WXD) |
(when the Multi-Purpose Tray is extended)
34-1/2" x 27-7/8 (909mm x 708mm)♦
|
| WEIGHT (Includes consumables) |
Approx. 172 lb. (77.9kg)♦
|
| |
|
| IMAGE READER UNIT |
|
| SCAN RESOLUTION |
Up to 600 x 600 dpi†
|
| ACCEPTABLE ORIGINALS (GLASS) |
Sheet, Book, 3-Dimensional objects [up to 4.4 lb. (2kg)] |
| MAXIMUM ORIGINAL SIZE |
Up to 11" x 17" |
| |
|
| DOCUMENT FEEDER |
|
| SCAN METHOD |
Duplexing Automatic Document Feeder |
| ACCEPTABLE ORIGINALS |
Paper Sizes: 11" x 17", Legal, Letter, Letter-R, Statement
Paper Weights: BW: 11 lb. Bond to 34 lb. Bond (42 to 128g/m2 ) Solid Black Text/Color: 17 lb. Bond to 34 lb. Bond (64 to 128g/m2 ) |
| SCAN SPEED (BW / COLOR; LETTER) |
Simplex: 51/51 ipm (300 dpi) 51/30 ipm (600 dpi)†
|
| PAPER CAPACITY (20 lb. Bond) |
100 Sheets |
| |
|
| COPY SPECIFICATIONS |
|
| FIRST-COPY-OUT TIME (Letter) |
As fast as 3.7 Seconds |
| MULTIPLE COPIES |
1 to 999 |
| COPY EXPOSURE |
Automatic or Manual (9 Levels) |
| MAGNIFICATION |
From Platen Glass: 25% - 400% (1% increments)
From ADF: 25% - 200% (1% increments) |
| PRESET REDUCTIONS |
25%, 50%, 64%, 73%, 78% |
| PRESET ENLARGEMENTS |
121%, 129%, 200%, 400% |
| BASIC COPY FEATURES |
Preset R/E Ratios by Area, Finishing, Two-sided, Density/ Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying |
| SPECIAL COPY FEATURES |
Two-page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, ID Card Copy, Image Combination, Different Size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/ Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date, Job Block Combination, Store in User Inbox |
| |
|
| PRINT SPECIFICATIONS |
|
| PROCESSOR |
Canon Dual Custom Processor (Shared) |
| MEMORY |
Standard: 1.25GB RAM
Maximum: 1.75GB RAM |
| HARD DISK DRIVE |
Standard: 160GB
Maximum: 1TB |
| ENGINE RESOLUTION |
1200 x 1200 dpi |
| PDL SUPPORT |
Standard: UFR II
Optional: PCL 5e, PCL 6, Adobe PS 3 |
| PRINT DRIVERS SUPPORTED OS |
UFR II, PCL 5e/6, Adobe PS 3:
Windows® (Windows XP/Windows Vista®/Windows 7/Server 2003/Server 2008/Server 2008 R2/Windows 8/Server 2012/ Small Business Server 2011), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/Server 2012), Small Business Server 2011, Windows Clustering Server (Windows Server 2003/ Server 2008/Server 2008 R2/Server 2012), Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5, XenDesktop 4.0/5.0/5.5/6), Macintosh® (OSX 10.5.8 or later, UFR II and PS 3 Only), VMware (vSphere 4/5/5.1), SAP (PS and PCL Only) |
| DIRECT PRINT SUPPORT |
Standard: TIFF, JPEG
Optional: PDF, EPS††, XPS†††
|
| PRINT FEATURES |
Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Printing on Transparencies, Front/Back Covers, Objective, Toner Reduction, Poster Printing |
| |
|
| SCAN SPECIFICATIONS |
|
| NETWORK TWAIN SCAN |
Standard |
| NETWORK SCAN UTILITY |
Color Network ScanGear |
| |
|
| UNIVERSAL SEND SPECIFICATIONS |
|
| SENDING METHOD |
E-Mail, I-Fax, File Server (FTP, SMB, WebDAV), Mail Box, Super G3 Fax (Optional), IP Fax (VoIP) (Optional) |
| COLOR MODE |
Auto Color Select (Color, Gray), Auto Color Select (Color, Black), Full Color, Grayscale, BW |
| SCAN RESOLUTION†
|
600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100 dpi |
| ADDRESS BOOK CAPACITY |
Max. 1,800 Destinations (Incl. 200 One-Touch Buttons) |
| COMMUICATION PROTOCOL |
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3, I-FAX (Simple, Full) |
| FILE FORMAT |
Standard: TIFF, JPEG, PDF, PDF/XPS (Compact), PDF (Apply Policy), PDF (Optimize for Web), PDF/A-1b, XPS, PDF/XPS (OCR), OOXML (.pptx)
Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature) |
| I-FAX DATA FORMAT |
BW: TIFF (MH, MR, MMR) |
| UNIVERSAL SEND FEATURES |
Two-sided Original, Different-size Originals, Original Type Selection, Book to Two Pages, Density Adjustment, Sharpness, Document Name, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, Sender's Name (TTI), E-Mail Priority, Scan Recovery for Misfeeds |
| |
|
| FAX SPECIFICATIONS |
|
| MAXIMUM NUMBER OF LINES |
4 |
| MODEM SPEED |
Super G3: 33.6 Kbps
G3: 14.4 Kbps |
| COMPRESSION METHOD |
MH, MR, MMR, JBIG |
| RESOLUTION |
400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi |
| SENDING / RECORDING SIZE |
Statement to 11" x 17" |
| FAX FEATURES |
Job Forwarding, Different-size Originals, Adjusting Overall Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Selecting the Telephone Line (when sending fax), Delayed Send, Preview, Finished Stamp, Job Done Notice, Original Type Selection, Two-sided Original, Book to Two Pages |
| |
|
| STORE SPECIFICATIONS |
|
| MAIL BOX (NUMBER SUPPORTED) |
100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
6,000 Maximum Pages Stored |
| ADVANCED BOX |
Available Disk Space: Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD)
Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 2000/XP/Windows Vista/7)
Concurrent Connections (Max.): SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features: Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support |
| MEMORY MEDIA |
Standard: USB Memory
Optional: SD, SDHC, CompactFlash®, Memory Stick, Microdrive |
| |
|
| SECURITY SPECIFICATIONS |
|
| STANDARD |
Department ID Management, Single Sign On-H, Access Management System (Device and Function Level Log-in), Secured Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec, Adobe LiveCycle Rights Management ES2.5 Integration |
| OPTIONAL |
Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification |
| |
|
| ENVIRONMENTAL INFORMATION |
|
ENERGY STAR® Qualified
Rated EPEAT® Silver
EU RoHS Compliant
Ecomark
Blue Angel
WEEE Directive |
|
| |
|
| CONSUMABLES |
|
| TONER |
GPR-42 Toner |
| TONER YIELD (ESTIMATED @ 6% COVERAGE) |
Black: 34,200 Copies / Bottle |
| |
|
|
|
