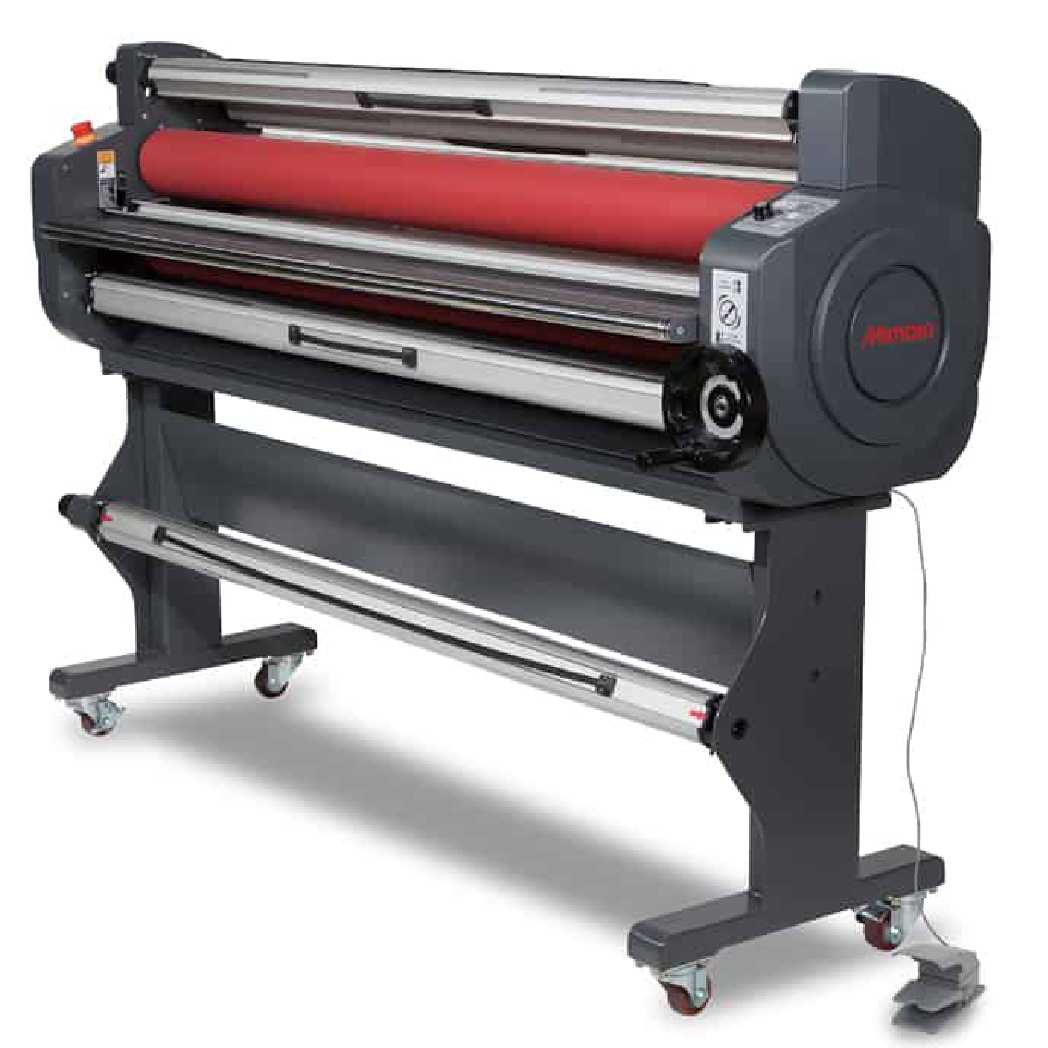

Brand New Mimaki LA-160W 62.2" Inch Heat Assisted Warm Laminator With Warming Function To Heat Up to 160 degrees
Get flawless laminated prints with Mimaki's LA-160W Heat Assisted Laminator!
Its heat-assisted technology ensures superior adhesion, particularly on surfaces printed with UV-LED ink, eliminating the dreaded silvering effect common with pressure-sensitive laminates. Ideal for achieving professional-grade prints of the highest quality.
Key Features:
Achieve fast throughput speeds of up to 295 linear inches per minute.
Streamlined operations with all functions accessible from one panel.
Convenient access to pressure handle and foot pedal for easy use.
Simplified operation with a take-up reel, enabling one-person operation of the entire process.
Specifically engineered for use with Mimaki Vision Laminate 310 (gloss) film.
With a maximum width of 62.2 inches, the LA-160W ensures efficient processing while maintaining ease of use. Enhance your workflow with this reliable laminator, compatible with Mimaki Vision Laminate film and our range of roll-to-roll printers.
New standard model with comfortability and user-friendliness
[LA-W Series] is a warm laminator achieved the maximum laminating speed 7,500mm/min.(*1) and usable for UV print laminating, too.
Product outlines
The warming function reduces the silvering (*2) influence of UV print lamination
Operation speed equivalent with the high class models
Excellent operability even by one operator as simple and safe
Safety design for the operator protection
*1 Max. Speed is 6,000mm/m in an area of 50 Hz of power supply
*2 Silvering: Whitening phenomenon of graphic by engulfing air babbles on laminating.
1. The warming function reduces the silvering influence of UV print lamination
Equipped with warm function available to heat up to max. 60 degrees. Laminating with heating improves the adhesion of lamination to reduce "Silvering" caused by unevenness of print surface due to property of ink.
*Silvering: Whitening phenomenon of graphic by engulfing air babbles on laminating.
2. Operation speed equivalent with the high class models
[LA-W Series] achieved the maximum operating speed is 7,500mm/min.(*) With an affordable price, they can provide the same level of operation speed with upper class models.
The combination use with UV Printer enables to duly contribute to your job, focusing quick response for UV ink property of instant curing upon UV light irradiating to save the ink drying time.
* Max. Speed is 6,000mm/m in an area of 50 Hz of power supply
3. Excellent operability even by one operator as simple and safe
Operation speed of lamination is max. 7,500mm/min., steplessly adjustable by dial. The temperature of warming function can be set to suit media up to 60 degree by every one degree from the operation panel and the laminating pressure is easily modified by handle.
Taking-up function of laminated media enables one-man operation.
4. Safety design for the operator protection
Two safety functions are featured : an emergency stop and a protection by laser preventing rolling-in trouble.
The safety functions to support the safer working environment to protect operator from an accident of rolling-in.
Highlights of the Mimaki LA Series
Heat-assist provides superior finishing.
LA Series laminators are heat-assisted devices with a maximum temperature of 140°F (60°C). This heat assistance improves overlaminate film adhesion, particularly to surfaces printed with UV ink, and reduces the potential for silvering effect created by pressure sensitive overlaminates.
Fast throughput speeds.
Laminating speeds of up to 295 linear inches per minute – or nearly five inches per second – means that the finishing can keep up with production and reduce bottlenecks.
Simple and reliable operation.
This easy-to-use laminator includes all functions on one operation panel, with easy access to the pressure handle and foot pedal. Additionally, a take-up reel makes it easy for one person to control the entire process.
Mimaki Vision Laminate.
Designed specifically for use with UV inks and LA Series laminators, Mimaki Vision Laminate 310 (Gloss) film offers fine finishing with a glossy feel while maintaining color brightness of the print. This high quality, heat assisted, overlaminate is also a cost-effective alternative to cold laminating films.
Complete system from Mimaki
LA Series laminators with Mimaki Vision Laminate film are the ideal companions to a UCJV Series UV-LED cut-and-print device. Because UCJV prints are instant-dry, they can be immediately finished on an LA Series laminator. This complete, harmonized system ensures reliable performance and quality output for those times when a protective overlaminate is preferred.
Specifications
Maximum processing width
62.2″ (1,580 mm)
Roller diameter
4.72″ (120 mm)
Processing thickness
1.38″ (35 mm max.)
Processing temperature
From room temperature to 60 °C (140 °F)
Processing speed
0 to 295.3″ min (0 to 7500 mm/min)
Core diameter
Three inches
Power
USA: 120V | EU: 230V | other: 100V
Rated current
USA: 14A | EU: 8A | other: 15A
Power consumption
1800W or less
Preheating time
About 30 minutes
Pedal switch
One
Attachment shaft (with measure scale)
3″ x 5 pcs.
Dimensions (W×D×H)
78.7″ x 21.7″ x 50.4″ (2,000 x 550 x 1,280 mm)
Weight
451.9 lbs. (205 kg)
