$1020/Month Brand New MBM VRCut Ready Triumph 7260 28" Inch Programmable Hydraulic Paper Cutter Package With Side tables (CU0441), Knife (AC0657), Sticks (AC0671) - CU0494VP

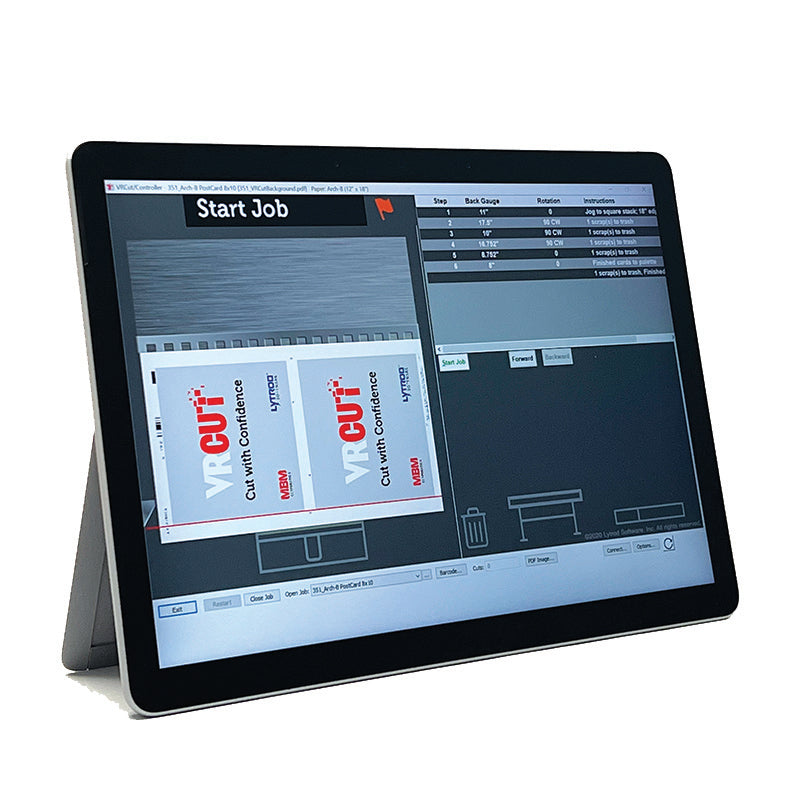

VRCut Ready TRIUMPH™ 7260 Automatic Programmable Cutter

Comes with the Full Package - Cutter, Side Tables, Knife, Sticks

MBM Triumph 7260 Bundle includes;

• MBM Triumph 7260 VR CUT Ready Programmable Hydraulic Cutter
• MBM Triumph CU0441 Side Tables to provide additional workspace
• MBM Triumph AC0657 Cutting knife to ensure sharp and precise cuts
• MBM Triumph AC0671 Cutting Sticks to extend the life of the cutting blades

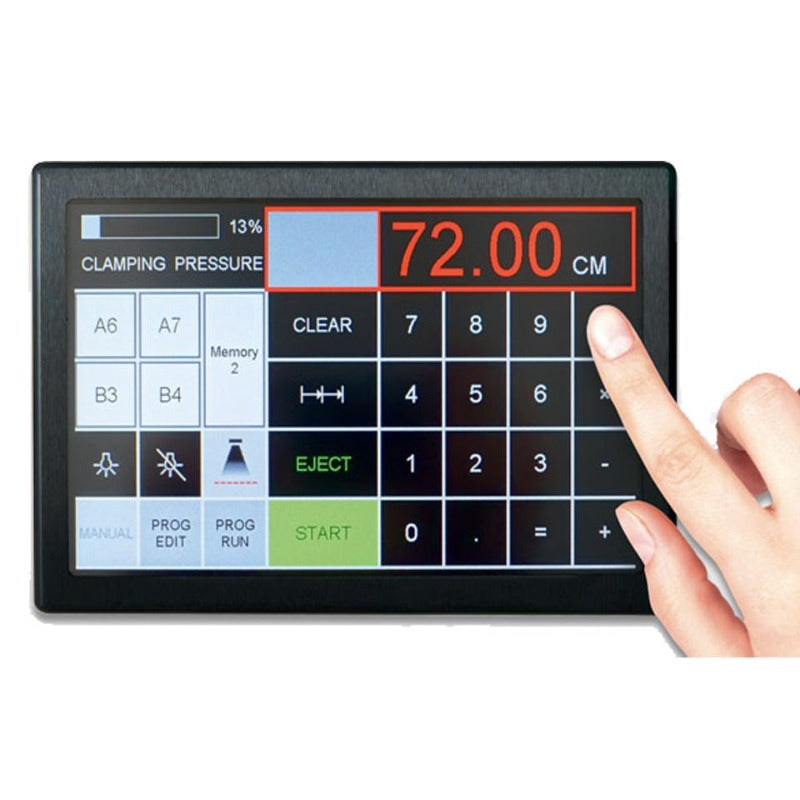

28 inch programmable cutter with hydraulic clamp, power back gauge, 7-inch touch pad control module, standard air tables (front and rear), and IR safety light beams.

Comprehensive SCS™ safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

Hydraulic clamp drive. Foot pedal for pre-clamping. Electric back gauge drive with control module for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements. Automatic SET function for reference measurement and paper EJECT function with and without program mode. DELETE and INSERT mode for correcting and modifying programs. Automatic correction in case of back gauge displacement. Push buttons for fast back gauge movement (forward and reverse). Integrated calculator. Self-diagnostic system with error indication on display. Electric blade drive with solid steel carrier and adjustable guides. Electronic back gauge control with variable speed control for manual back gauge setting. Clamp pressure is fully adjustable between 550 and 4,400 psi. False clamp plate with optical indicator. Bright, LED optical cutting line. Standard air tables (front and rear). High quality, German HSS blade. Precision swing cut blade movement. All-metal construction. Includes easy-access tool holder and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.

7260 requires 208/230 VAC, 50/60 HZ, 3-Phase (Phase converter strictly prohibited. Voids all warranty).
20 amp circuit breaker with L15-20 receptacle.

TRIUMPH 7260 Features:

• Cutting Width: 28"
• Cutting Height: 3"
• Narrow Cut: 3/4" (3-1/2" with false clamp)
• Length behind blade: 28"

Product Description

This Triumph 7260 is a 28-inch programmable paper cutter with hydraulic clamp, power back gauge, 7-inch touch pad control module, and IR safety light beams on front table. The Triumph 7260 has a programmable control module for the power back gauge with multi-lingual touch pad, and 99 programs with 99 steps in each program can be stored. The convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach. Its Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently. Plus, blade changes can be made without removing the machine covers. Increase your work productivity and output with this Triumph 7260 28" Automatic Programmable Hydraulic Paper Cutter.

Main Features:

• Type of machine: Programmable Hydraulic
• Cutting Width: 28 inch (711 mm)
• Cutting Height: 3 inch (76 mm) (3 1/2 with false clamp)
• Narrow Cut: 3/4 inch (25 mm) (2 3/8 with false clamp)

Product Details

• IR Safety Curtain. The IR light beam safety curtain covers the work area to ensure the highest level of operator safety.
• Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.
• Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.
• Programmable Back Gauge The control module for the power back gauge can store 99 programs with up to 99 steps in each.
• Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
• Safe Blade Changes. Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of the blade.

Description of the Ideal Triumph 7260 Cutter

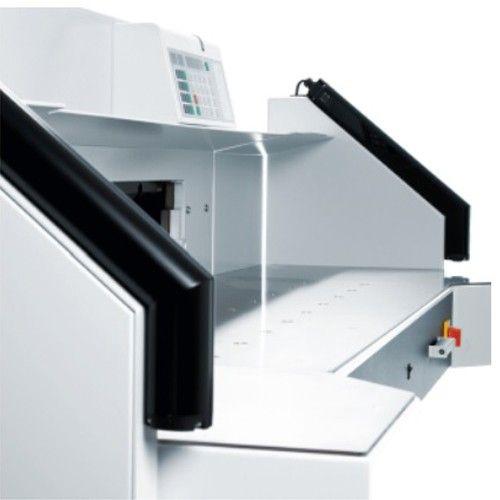

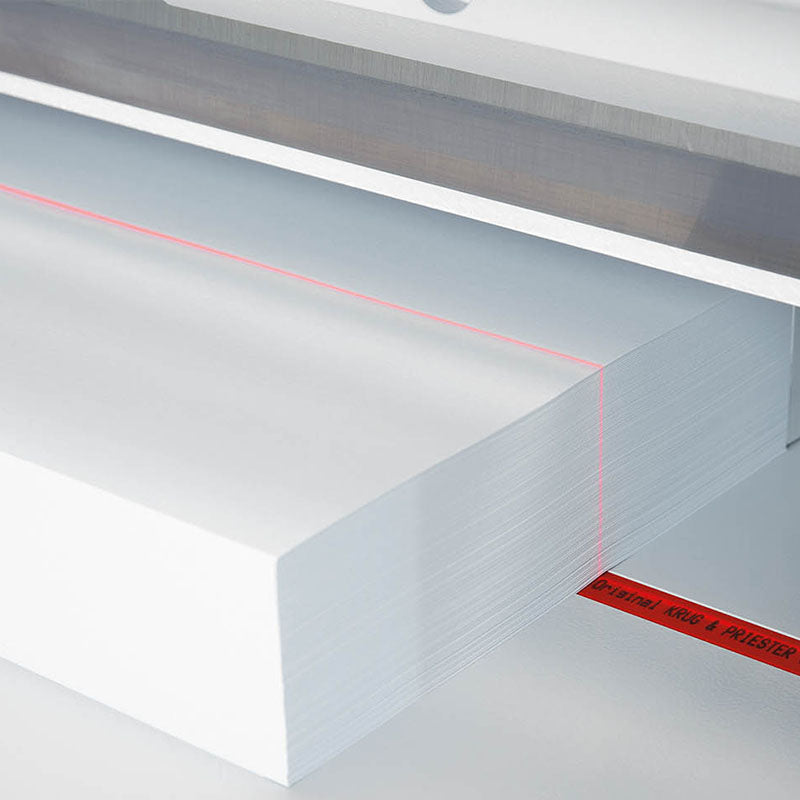

As the largest model in the Triumph cutter line, the Triumph 7260 is a guillotine cutter with hydraulic clamp, programmable power backgauge, and an array of renowned safety features. The Triumph 7260 offers a cutting length of 28-3/8" and a cutting height of a full 3". Bright and durable LEDs display an optical cutting line, which indicates where the cut will be made. Thanks to the Easy Cut system, true two-hand operation has evolved. The blade and clamp can be activated independently through the two-step activating bars. These bars offer separate trigger points for the blade and clamp. This two-hand operation provides maximum operator safety by occupying the user's hands during the cutting process.

Speaking of safety, the IR light barrier located on the front table prevents potential harmful operation. When an object (hands or a piece of clothing for example) enters the cutting zone, operation is immediately halted. A disc brake ensures instant stopping of the blade, and an automatic return to the safe position is activated. Other features of the SCS (Safety Cutting System) include a transparent safety cover on the rear table, safety lock with key and main switch, and low voltage. Adjust the blade depth easily from outside of the cutter. The blade and cutting sticks can be changed or turned from the front of the machine without removing any covers. The blade changing device guarantees safe changing and replacement of the HSS steel blade.

The electro-mechanical backgauge drive features precision spindle for exact positioning. The programmable backgauge control module is easy to operate and ensures optimum workflow in the program mode. Two dimensions can be entered with the key button keypad. Users can store 99 programs with up to 99 steps in each program. The high capacity memory can also store frequent or repeat cuts. For convenience, the control module features an integrated calculator. Digital display for measurement readout is offered in both inches and centimeters, and displays accurately to 1/10 mm or 1/100 inch. Push buttons are available for automatic backgauge movement. For manual repositioning, the electronic hand wheel offers infinitely variable speed control (from very slow to very fast). The Triumph 7260 is equipped with standard airtables on both the front and rear table. The practical hook-in tool holder is located on the rear table and conveniently organizes all necessary tools for blade change and service jobs.
