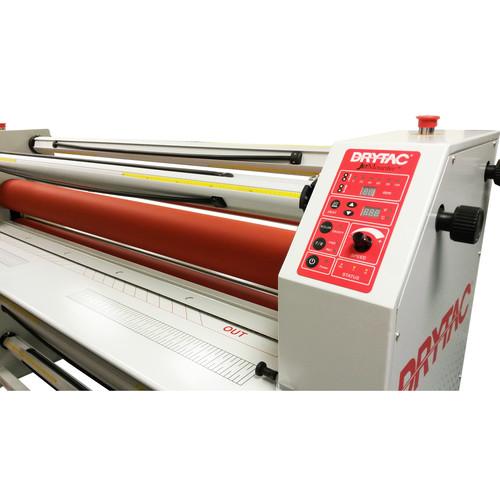

Drytac JetMounter JM63 Pro XD 63' Inch Wide-Format Laminator with Heated Top Roller

The JM63 Pro XD is a full featured, versatile, freestanding wide-format roller laminator with roll-to-roll capability at an excellent price. The heated top roller allows it to be used with Heatset and thermal overlaminates as well as pressure sensitive overlaminates and adhesives.

Features:

• Top roller with adjustable temperature to 248°F (120°C)
• Effective laminating width of 63” (1600mm)
• Large 5.5” (140mm) diameter non-stick silicone rollers
• Speed control up to 20 ft (6m) per minute
• Maximum 2” (50.8mm) nip opening
• Nip pressure indicator
• Fold down front table
• Heavy-duty metal construction with lockable casters
• “Hold flat” paper in-feed guide
• Emergency stops and safety photo sensors for protection
• Top and bottom auto-grip supply shafts with brake tension control on operator side; 10” (254mm) max roll diameter
• Top and bottom autogrip take-up shafts with adjustable clutch speed including rear take-up for roll-to-roll
• Single mechanical height/ pressure adjustment (no compressor needed)

SPECIFICATIONS

• Max Laminating Width - 63” (1600 mm)
• Max Nip Opening - 2” (50.8 mm)
• Uncrated Weight 840 lbs (381 kg)
• Width - 82” (2083 mm)
• Depth - 24” (610 mm) w/ table down 25.5” (648 mm) w/ table up
• Height - 53” (1346 mm)
• Roller Diameter - 5.5” (140 mm)
• Speed Range - 2 - 20 fpm (0.6 - 6 mpm)
• Power (U.S. and Canada) - 220V, 50/60Hz, 15A Single Phase
• Power Consumption - 3300 Watts
