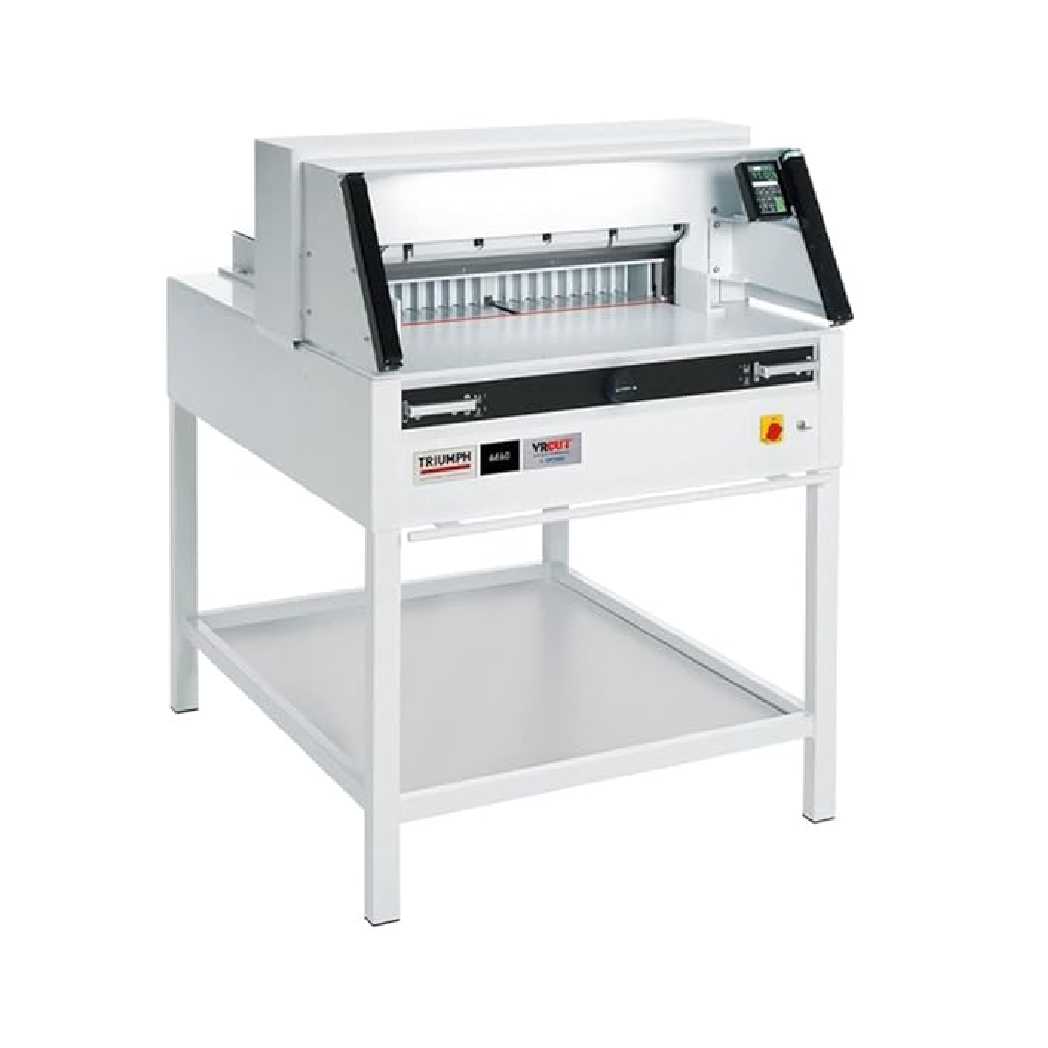

Brand New MBM VRCut Ready Triumph 6660 25-1/2" Automatic Programmable Paper Cutter With Light Beam Safety Curtain, Auto Clamp, Reverse Indicator, Digital Touch Panel & IR Safety Light - CU0492V
MBM CU0492V Model 6660 VRCut Ready Triumph Cutter; 25-1/2" Automatic Programmable Cutter with Auto-Clamp, Kickback Indicator, Digital Touchpad and IR Safety Light Beams on Front Table
Key Features
- Programmable cutter with auto-clamp
- Rear power meter
- Digital touchpad
- Patented easy-cut electronic blade activation bars for true two-handed operation
- Ergonomic, 37" working height
- Electric knife and clamp drive
- Electric rear gauge drive with touchpad for easy programming
- Digital measurement display (cm or inches) with multi-lingual operator guidance, accurate to 1/0.394 in or 1/100"
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes. Memory key for repeat cuts
- Auto-adjust feature for reference measurement and eject feature for pushing paper
- Self-diagnostic system with error indication on display
- Electronic back gauge control with variable speed control for manual back gauge adjustment
- Bright LED optical cutting line
- 3-step LED front table illumination
- Adjustable spindle-guided back gauge with narrow clearances and plastic glides
- Dual side guides on front and rear tables
- Solid steel blade holder and adjustable blade guides
- All-metal construction
- Includes stand with storage shelf, easy-access tool rest and paper locking tool
- Optional side tables increase work surface
- UL and C UL Approved

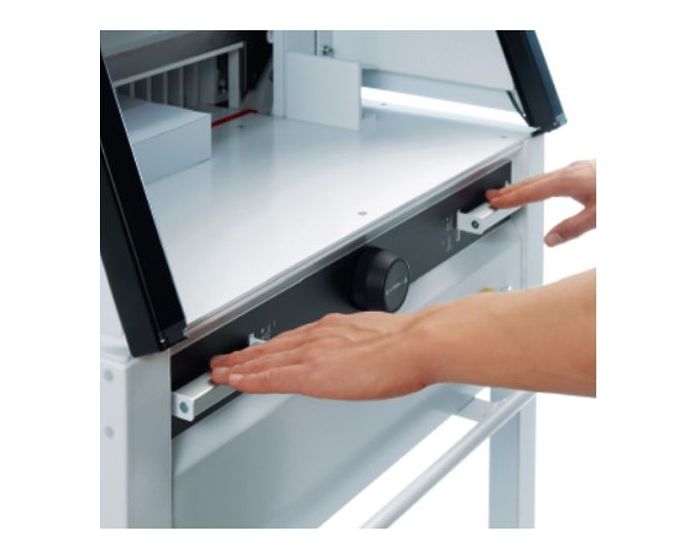

The professional Triumph 6660 paper cutter offers impressive features, superior cutting capability, and an essential safety package. The Triumph 6660 accepts documents and formats up to 25 ½" L and 3" H and easily performs a narrow cut of less than 1 inch (0.98 in/25 mm). With the Easy Cut system, the blade and clamp can be controlled independently via separate trigger points on the activating bars. By pressing on these separate points, the clamp can apply pressure before the blade activates. This Easy Cut system requires two-hand operation, maintaining a clear level of user safety. The Triumph 6660's SCS (Safety Cutting System) includes a safety cover on the rear table, main switch and safety lock with key, and easy blade change from the front of the machine without removing covers. Cutting sticks can also be turned or replaced from the outside of the machine. The convenient blade changing device covers the sharp edge of the high quality, German made steel for user protection.
While many Triumph models feature hinged, transparent safety guards which lock upon operation initiation, the Triumph 6660 features the innovative IR light barrier located on the front table. If an object penetrates this IR light beam safety curtain, the cutting process is immediately interrupted. A disc brake guarantees that the blade is instantly stopped and the automatic return to safe position is activated.

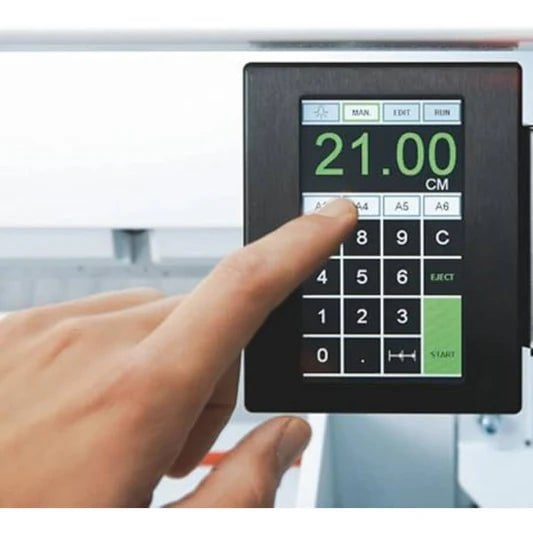

A step up from the standard keypad, the Triumph 6660's modern touch pad offers multilingual functions and abundant storage capacity. Capable of storing up to 99 programs with up to 99 steps each, this control panel also offers pre-programmed DIN sizes and automatic memory for repeat cuts. The electronic control module operates the power back gauge for precise positioning. Users can place their paper stacks on the cutting table and set the appropriate measurements. Bright LEDs display an optical cutting line to indicate exactly where the cut will be performed. The electronic hand wheel is ideal for manual repositioning, offering infinitely variable speed control from very slow to very fast. Simply reposition the gauge until the proper measurements are reached.
The solid all-metal construction proves durable. A practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
WHAT IS THE OPTIONAL VRCUT ALL ABOUT?
VRCut is a groundbreaking third-party software solution designed to automate the cutting workflow by promoting an efficient and error-free cutting process from start to finish. VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operators of any experience level the ability to cut with confidence on select Triumph cutters. The VRCut solution consists of two modules that work together. The Impose module creates PDF documents formatted specifically to work with the VRCut Controller module. The Controller module connects directly to the Triumph cutter moving the back gauge and visually guiding operators through the cutting sequence.
