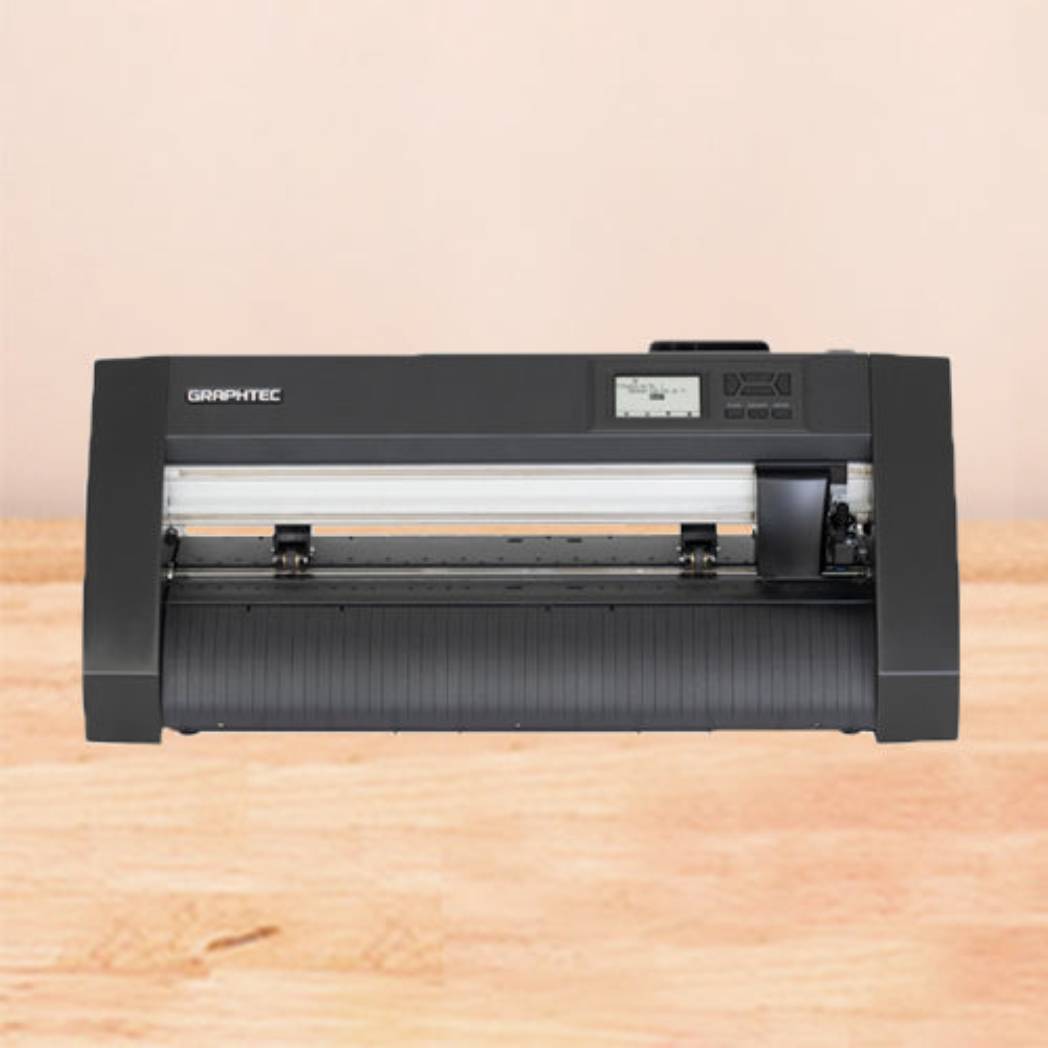

Brand New Graphtec CE 8000-40-E N Ethernet Supported Model 15" Inch E-Class Wide Vinyl Desktop Cutter
Flexible Open Financing options are available.
Get pre-qualified in seconds - Start now!
Leasing Options Available – Apply Here
Graphtec CE CE 8000-40-E N Ethernet Supported 15" Vinyl Cutter
Graphtec CE8000-40 15" Cutter is the perfect cutting plotter for those looking to increase production with greater efficiency! It features many new upgrades and changes from it's previous version, the Graphtec CE7000-40.
The Graphtec CE8000 Series is the perfect solution for those looking to increase production with greater efficiency for signage graphics, print & cut graphics, pop & packaging, automotive markets and many more. The rigidity has been enhanced compared to the previous model CE7000, which its feeding and cutting quality have also been improved. Wireless LAN has been newly available to enhance the convenience and flexibility.
Top-level Cutting Performance
Pressure adjustable push rollers and newly developed Media Set Assist function help to hold your media stable and prevents from feeding trouble.
By using an optional basket, stability in long roll media cuts can be achieved.
Data Link Function (Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE8000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
Only FAT32 is supported. Please note that NTFS and exFAT are not available.
Continuous Cut
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.
Data output via USB flash memory without PC
When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
The CE 8000 Is Perfect For:
• Sticker & Decal Creation
• Window Signage
• Window Tint Films
• Heat Transfer Apparel
The CE 8000 is The Best Plotter For:
• Self-Adhesive Vinyls
• HTV Materials
• Paper
• Card
• Stencil Materials
NEW FEATURES IN THE GRAPHTEC CE-8000 SERIES
Connexion wifi
Install wherever you want, no more annoying or too short cables.
Loading assistance
A suction cup helps you to place and immobilize the media while loading it.
Touch screen & navigation intuitive
Increased ease of use, quick access to essential functions through intuitive icons.
Notification par email
The end of the job and/or an error during cutting can be notified to the user by e-mail.
Speed and precision
High-level cutting speed, precision and quality will be your best allies.
Half-flesh and full-flesh cut
Perform both half-cut and full-cut with just one tool.
Work offline
Retrieve your dedicated files from a simple USB key to cut without a PC.
Barcode management
Start the operation with one click, the machine detects and reads the barcode to find and cut the desired file.
Maximize your production
Multi-brand compensation (Matrix Copies) allows for a minimum margin.
Cutouts can be placed outside the alignment marks for optimal media utilization.
Optional Accessories & Upgrades:
• Media Catch Baskets
For the ability to enhance the machines tracking capabilities from 2m to 5m.
• Carrier Sheet Table
To keep sheet fed media or media that is attached to a carrier sheet level and supported as it passes through the machine.
• Additional Push Roller Kit
For enhanced media tracking capabilities – Only for 130cm and 160cm versions.
• Media Flange Kit
Helps to reduce rolling resistance for heavier rolls of media and improves the tracking capabilities of your CE 8000 Series plotter with the Graphtec Media Flange Set.
For CE 130cm ONLY.
CE 8000-40
• Machine Width: 40cm
• Stand Included: No
• Media Basket Included: No
• Supplied Push Rollers: 2
• Guaranteed Area Of Cut Accuracy: 355mm x 2m
• Max Mountable Media Width: 484mm
• Max Cut Speed: 900mm/s @ 45 degree direction
• External Dimensions: 67 x 2989 x 266 (11kg)
