$155/Month Brand New Graphtec CE 8000-130-E N Ethernet Supported Model 50" Inch E-Class Wide Vinyl Desktop Cutter With Stand
Flexible Open Financing options are available.
Get pre-qualified in seconds - Start now!
Leasing Options Available – Apply Here
Introducing the NEW Graphtec CE8000 Series, the go-to solution for boosting production efficiency for Signage and Vinyl Graphics, DTF Apparel, print & cut, POP & Packaging, Automotive Markets, and more. Compared to its predecessor, the CE7000, the CE8000 boasts Enhanced Rigidity for better feeding and cutting performance.

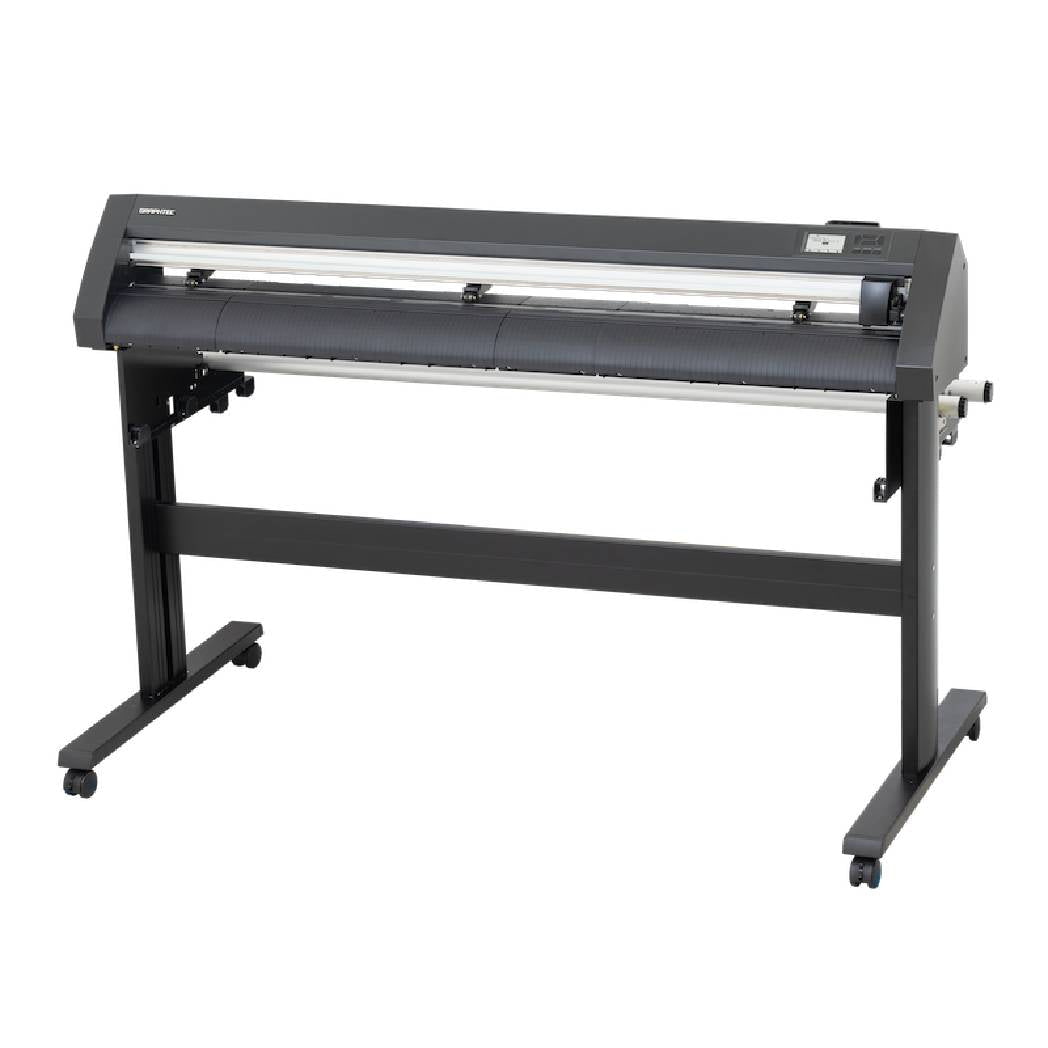

Graphtec 50″ CE8000-130 Vinyl Cutter w/ Stand
Cutter Features:
- Auto registration mark sensor (perfect for print and cuts)
- Fast and accurate digital servo motor
- 4 point, dual-axis skew correction
- Tangential control enhanced precision
- Graphtec Studio Software
- Plug-ins available for Adobe Illustrator and CorelDraw
The CE 8000 Is Perfect For:
• Sticker & Decal Creation
• Window Signage
• Window Tint Films
• Heat Transfer Apparel
The CE 8000 is The Best Plotter For:
• Self-Adhesive Vinyls
• HTV Materials
• Paper
• Card
• Stencil Materials
Graphtec Studio Software Features:
- Intuitive drawing tools for making lines, arcs, circles, squares, rectangles, polygons, free-hand, and curved lines.
- Text tools with all the control of a word processor.
- Grouping, ungrouping, and object alignment.
- Move, edit, or delete points to reshape objects to create a unique look.
- Manipulate objects by resizing, rotating, mirroring.
- Advanced design features such as Shadows and Outlines to objects.
- A unique Erase tool to remove object sections or elements.
- Modify objects shape by merging them with Weld, Subtract, Crop, and Divide.
- Copy objects by using Replicate, with innovative ways of making patterned copies.
- An easy-to-use bitmap tracing feature for creating outlined versions of bitmap logos as well as contour cut lines.
- Automatically generated registration marks makes the decal print and cut process accurate and simple.
- Elements can be filled with custom colors, gradients, and pattern fills.
- Connecting several cutters at once
- Having more control of the connected cutter settings.
NEW FEATURES IN THE GRAPHTEC CE-8000 SERIES
Install wherever you want, no more annoying or too short cables.
Loading assistance
A suction cup helps you to place and immobilize the media while loading it.
Touch screen & navigation intuitive
Increased ease of use, quick access to essential functions through intuitive icons.
Notification par email
The end of the job and/or an error during cutting can be notified to the user by e-mail.
Speed and precision
High-level cutting speed, precision and quality will be your best allies.
Half-flesh and full-flesh cut
Perform both half-cut and full-cut with just one tool.
Work offline
Retrieve your dedicated files from a simple USB key to cut without a PC.
Barcode management
Start the operation with one click, the machine detects and reads the barcode to find and cut the desired file.
Maximize your production
Multi-brand compensation (Matrix Copies) allows for a minimum margin.
Cutouts can be placed outside the alignment marks for optimal media utilization.
Optional Accessories & Upgrades:
• Media Catch Baskets
For the ability to enhance the machines tracking capabilities from 2m to 5m.
• Carrier Sheet Table
To keep sheet fed media or media that is attached to a carrier sheet level and supported as it passes through the machine.
• Additional Push Roller Kit
For enhanced media tracking capabilities – Only for 130cm and 160cm versions.
• Media Flange Kit
Helps to reduce rolling resistance for heavier rolls of media and improves the tracking capabilities of your CE 8000 Series plotter with the Graphtec Media Flange Set.
For CE 130cm ONLY.
Cutter Specifications:
Machine Width: 130cm
Stand Included: Yes
Media Basket Included: No
Supplied Push Rollers: 4
Guaranteed Area Of Cut Accuracy: 1250mm x 2m (1250mm x 5m When Media Basket Is Attached)
Max Mountable Media Width: 1372mm
Max Cut Speed: 1000mm/s @ 45 degree direction
External Dimensions: 1704 x 811 x 1215 (51kg)
