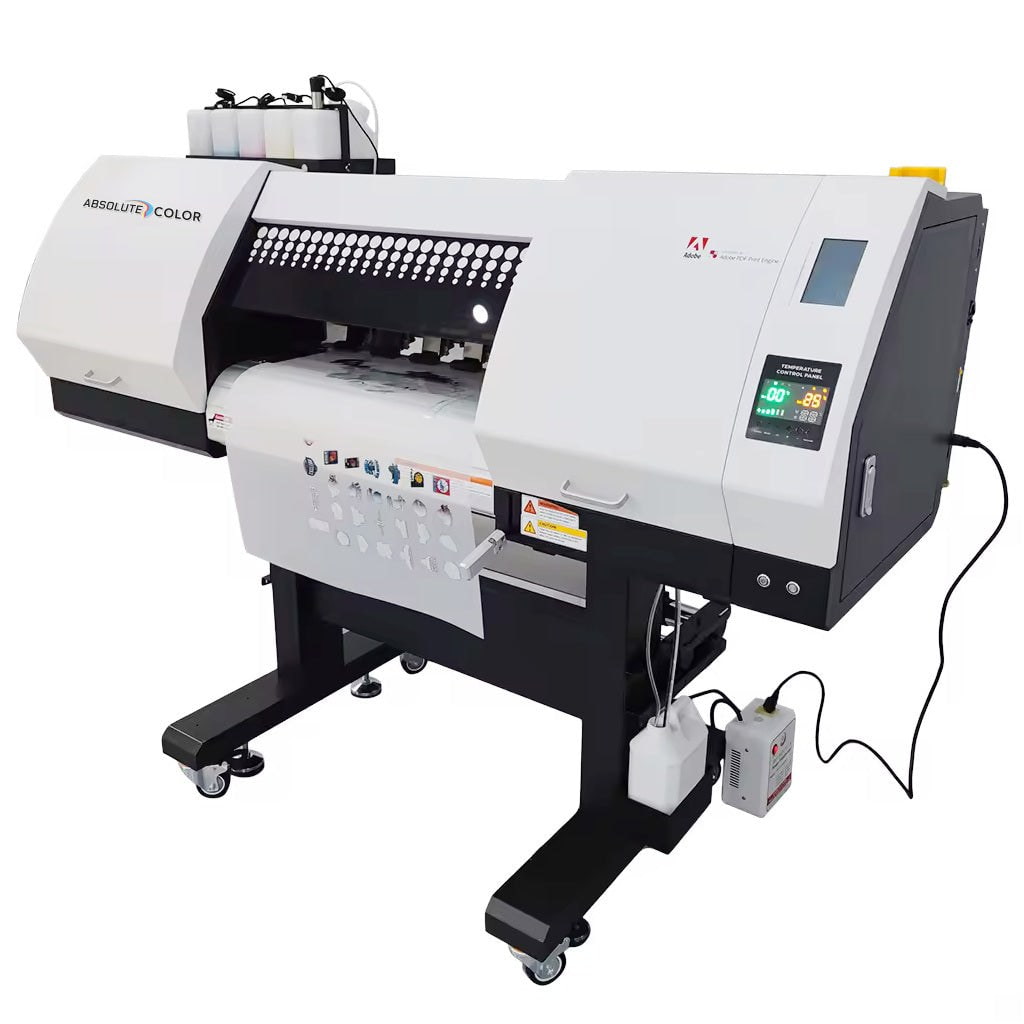

Absolute Color Ultra PRO II 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson i3200-A1 Printheads
WE WILL BEAT ANY PRICE!
Open Financing and Leasing are available
PayPlan by RBC - Get pre-approved for a flexible 12 to 48-month OPEN LOAN in just 5 seconds. Receive an answer in seconds by simply providing your name, phone number, and date of birth. Start your application here!
LOWEST PRICE GUARANTEED!
Absolute Color Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.
Features
√ Absolute Color control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Dual-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first print head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.
Technical Specs:
24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
1.8 Liter per color ink bottle capacity
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 7200 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Printing Software: DTF Fairy RIP Software
Control System: Absolute Color Control System
Print Head Cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)
Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity
Complete DTF Workflow

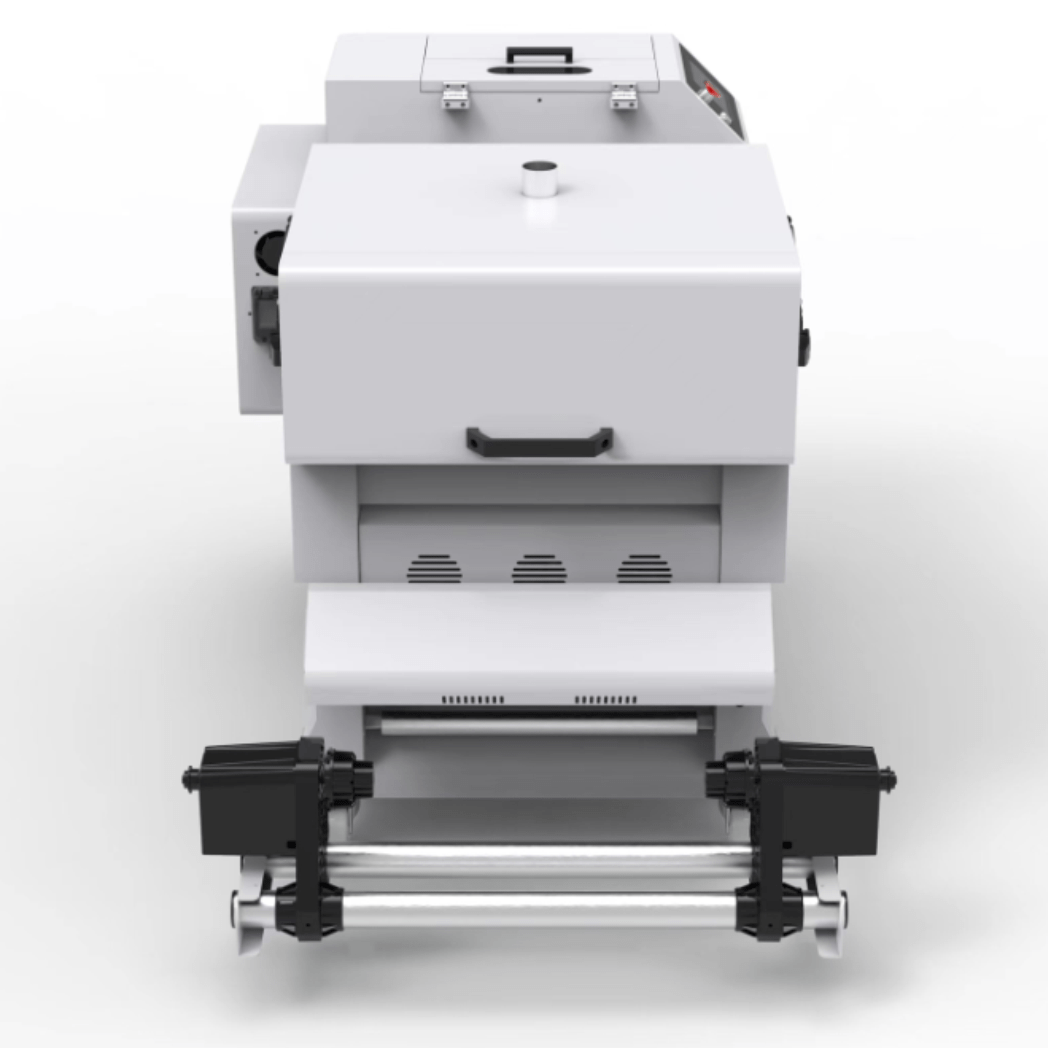

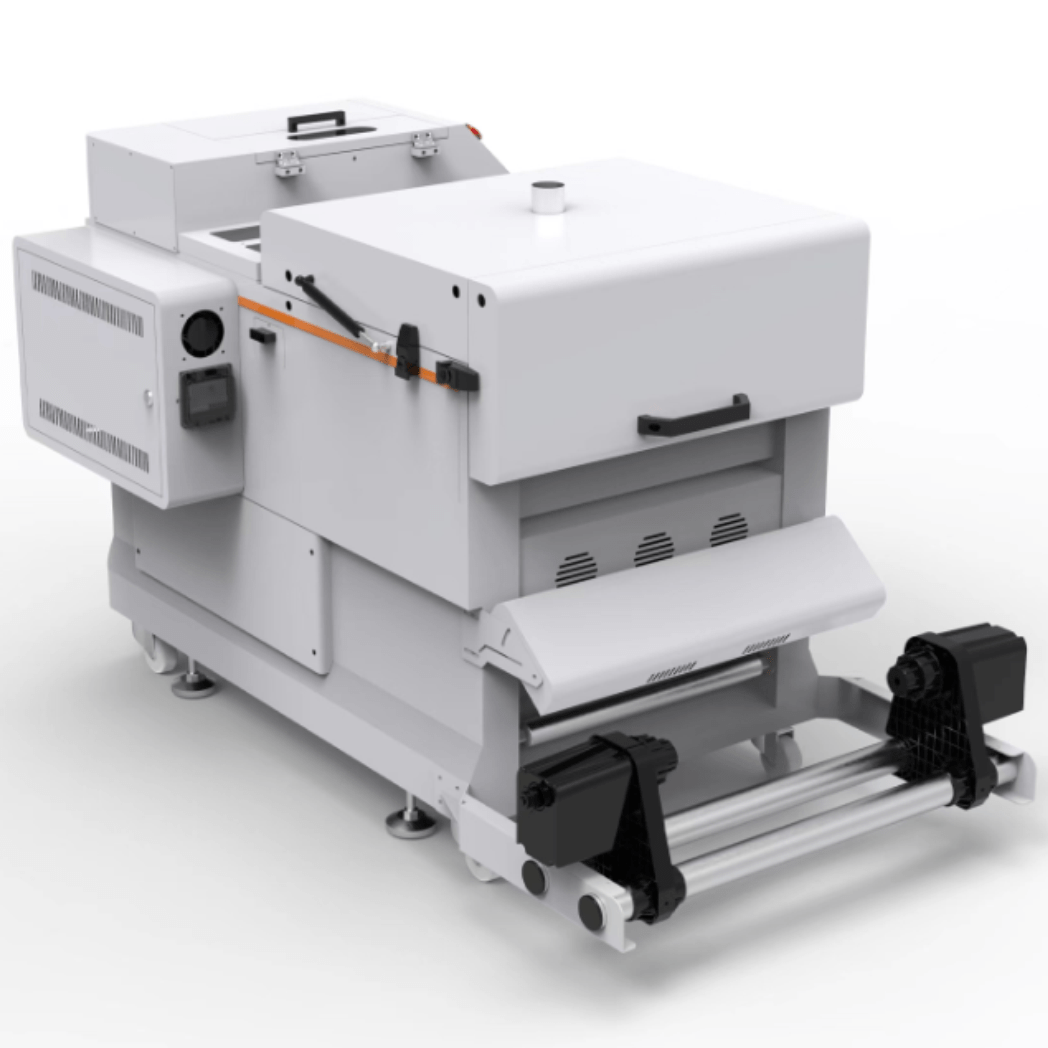

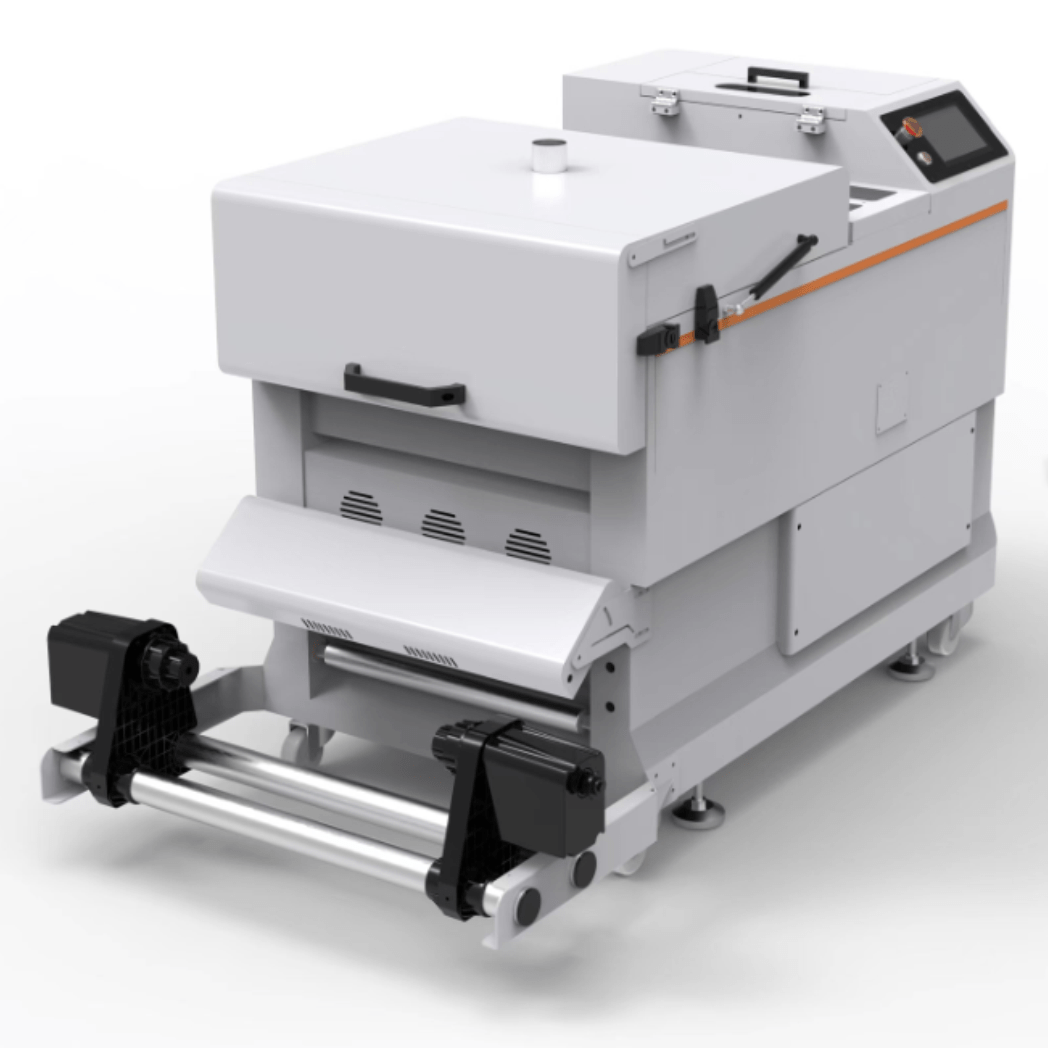

US Stock, Absolute Color PRO 24in Automatic Recyling DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
Specifications:
Absolute Color Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4 fan air cooling (single row)
Machine Size: 63.8in x 35.9in x 39.1in (1620mm x 912mm x 992mm)
Powder Shaker and Dryer Weight: 419lbs (190kg)
Packaging Size: 55.9in x 44.1in x 43.8in (1420mm x 1120mm x 1113mm)
Gross Weight: 529lbs (240kg)
Automatic powder recycle gear: There are 1-5 gears to choose from, and the 3rd gear is used by default, which can meet most printing speeds.
Powder box cleaning function: Press and hold for 5 seconds to start the cleaning function.
Compatible with media within a width of 23.6inches: Meet the printing speed of 6-20 square meters per hour.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Requirements:
Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 24A, 5200W
With Absolute Color DTF film, powder and inks, you can easily and quickly create custom t-shirts and apparel.
Features:
√ New automatic powder recycle function, more convenient and labor saving.
√ Longer folding dryer, more energy efficient.
√ Compact size / small footprint.
√ Touch screen control panel makes everything easier.
√ Infrared drying and heating improves and protects color reproduction.
√ Absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
√ Manual/automatic dusting switchable, new function of the powder box cleaning, one-click automatic cleaning of the powder box.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
The DTF Process:
DTF Printing Advantages:
Complete DTF Workflow:
Applications:
