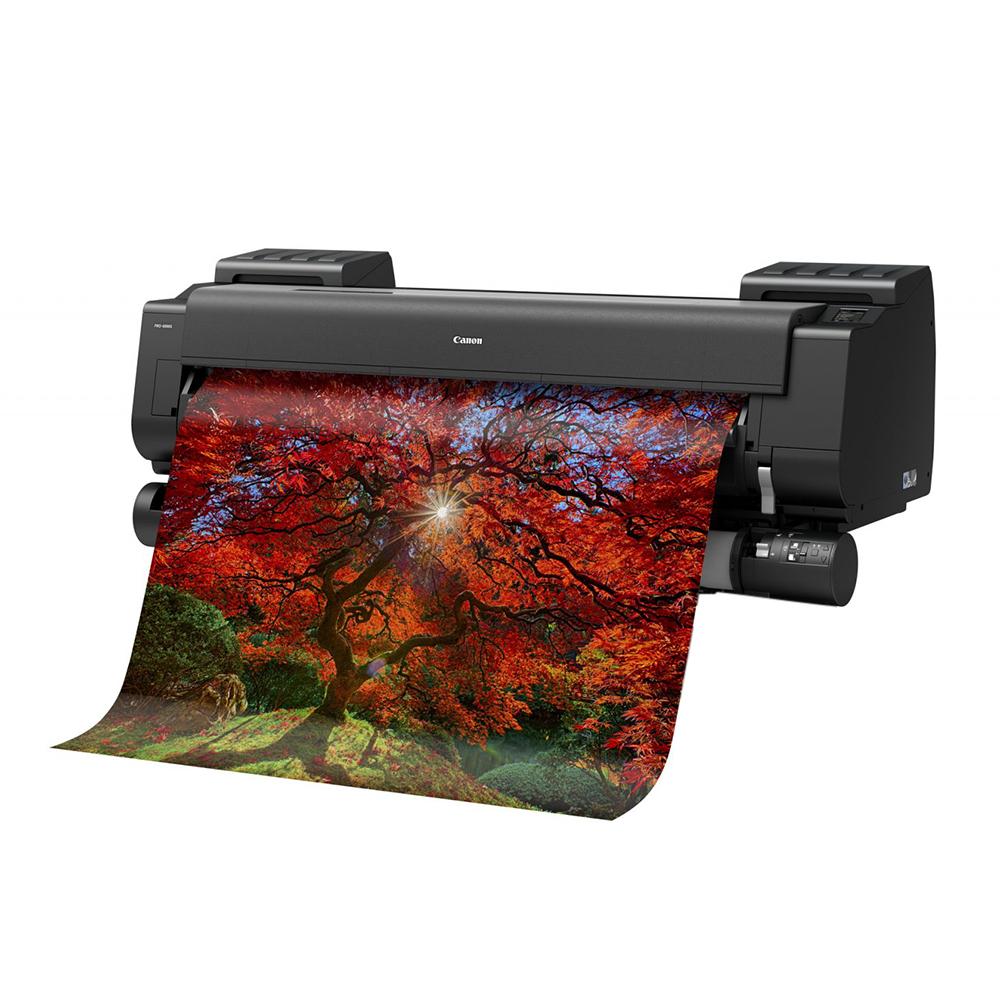

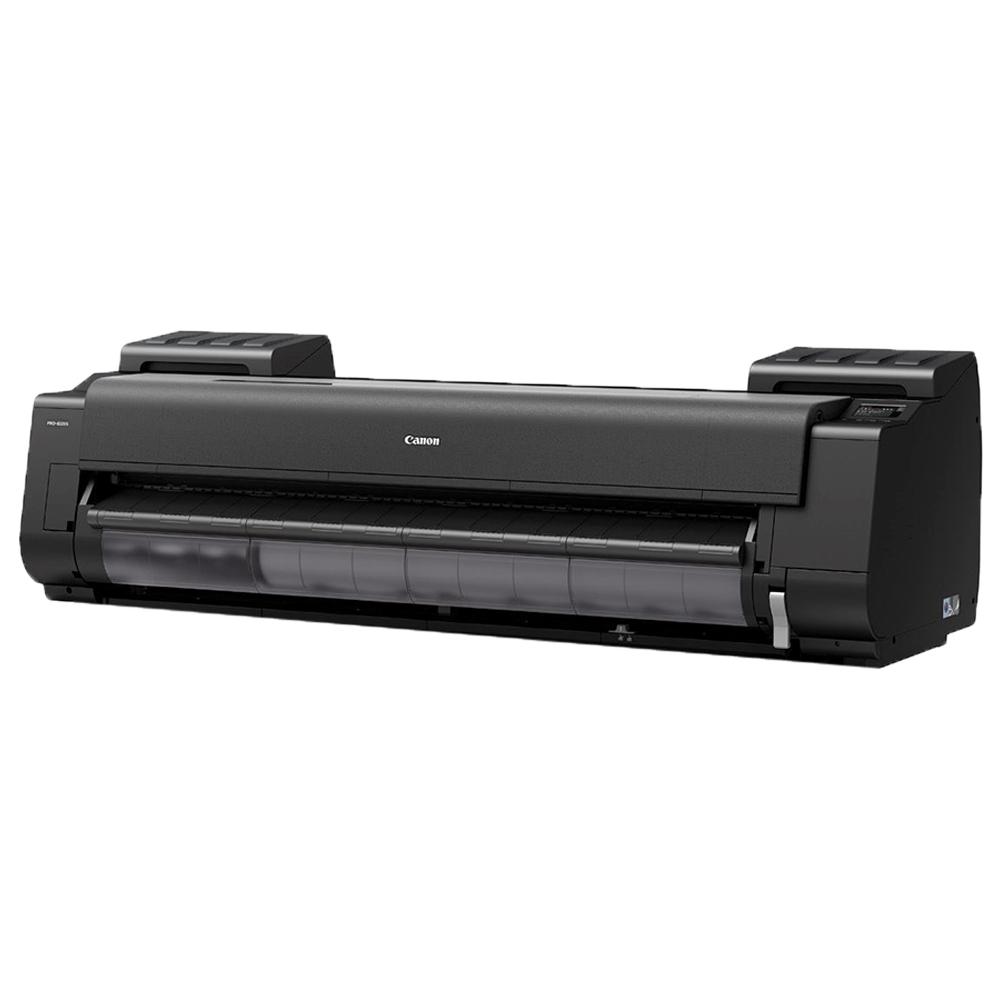

Brand New Canon imagePROGRAF PRO-6100S 8-Color 60" Large Format Inkjet Printer, Print Resolution 2400x1200dpi (Max), Hard drive 500GB
The Canon imagePROGRAF 60" PRO-6100S large-format printers are built for advanced printing solutions. With an 8-Color LUCIA PRO ink system, these printers are ideal for bringing production signage, commercial photography, and proofing businesses to the next level.
- Intelligent Media Handling
- 4.3” touchscreen
- Borderless printing
- 1.28" print head
- LUCIA PRO 8-color ink system
- High-speed L-COA PRO processor
- High-precision unibody design
- Multipositional basket
- High-capacity ink tanks
- Advanced software and workflow solutions
- Compact design
- Wi-Fi connectivity
- Direct USB drive printing
- Sub-Ink Tank System
Overview
PRODUCTION REDEFINED
Canon thought of every detail when it came to building the ultimate large-format production printer—intelligent media handling, a large 4.3” touch screen operational panel, torque control on the Take-up unit, a Sub-Ink Tank System, and a compact size reaching a whole new level of performance.
The new enhanced Canon imagePROGRAF 44” PRO-4100S large-format printers have a new sleek design and are built for advanced printing solutions. With an 8-Color LUCIA PRO ink system, these printers are ideal for bringing production signage, commercial photography, and proofing businesses to the next level.
INTELLIGENT MEDIA LOADING
For the first time ever, an imagePROGRAF printer can load and recognize paper without the need for human intervention. Simply set the roll holder in the printer and the media will automatically feed into the printer. The built-in multi-sensor measures the surface reflection and the media thickness to determine the media type.
SUB-INK TANK SYSTEM
The Sub-Ink Tank System works to remove all the ink in the tank before having to replace it, helping to eliminate any wasted ink. The empty tanks can also be replaced on the fly, without stopping the printer. This is extremely useful during long print jobs.
REMAINING MEDIA ESTIMATION
Accurately manage the remaining media on a roll without the need to print a bar code—saving ink and media.
MULTIFUNCTION ROLL SYSTEM
The Canon Multifunction Roll System, standard on the PRO-6100S, can be used in two different ways— enabling a second roll of media to be loaded on the printer, or the unit can be configured as a bi-directional Take-up unit.
1.28”-WIDE PRINT HEAD
At the heart of the imagePROGRAF PRO-6100S printers is a single 1.28"-wide print head with 18,432 nozzles. These PRO Series printers are able to produce stunning prints with less passes, making these the fastest Canon 8-color, large-format printers ever!
LUCIA PRO INK SYSTEM
The LUCIA PRO ink set adopts microencapsulated 8-color pigment inks. These inks help you achieve fantastic color reproduction, image clarity, and fine lines, all ideal for creating vivid posters and advertising displays. This ink set helps:
- Enhance red color performance
- Reduce graininess
- Enhance dark area reproduction
To enhance print performance, the 8 colors use all 12 ink channels in the print head. The LUCIA PRO ink is arranged in a mirror layout on the print head, symmetrically arranging the colors: C, M, Y, and MBK. This layout allows for the same ejection order of the four key colors during the bidirectional printing process, resulting in faster print speeds.
ANTI-CLOGGING TECHNOLOGY
The PF-10 print head with FINE technology generates fast print speeds and helps reduce the possibility of clogging, so ink and media aren’t wasted. Ink ejection conditions are precisely checked by sensors to ensure optimal performance. If a clog is detected, another nozzle will automatically provide backup, helping to reduce the possibility of a misprint.
COLOR CALIBRATION
The built-in color multi-sensor offers precise calibration and color matching— using a three-color LED and a condenser lens, the sensor enables accurate recalibration of the device, allowing you to maintain a low average printer-to-printer color difference. A single color calibration performed with one type of media can be applied to all Canon media in all printing modes. The Device Management Console software, ideal for fleet management, lets you perform color calibrations remotely. This software lets you monitor the printer status of up to 50 units from almost any location in the world!
L-COA PRO IMAGE
PROCESSOR Big jobs need fast processing. This high-precision control engine performs the high-speed processing of massive amounts of image data, generates the printing data, and controls the optimal ink layout for achieving faster print speeds.
UNIBODY DESIGN
The unibody structure was designed to provide a strong platform for a stable print head scanning, resulting in precise ink droplet placement. The ultimate combination of speed and high-quality printing is achieved with this design.
Wi-Fi™ CONNECTION
Stay Connected. Wi-Fi connectivity is standard with the imagePROGRAF PRO Series
OPERATION PANEL The large 4.3” LCD operation panel utilizes smartphone touchscreen technology for easy operation. The top three most-used commands—Load, Feed, and Cut—now have their own buttons below the operation panel for ease of use.
DIRECT USB DRIVE PRINTING
PDF and JPEG files can be directly printed on the imagePROGRAF PRO Series from a USB thumb drive. Simply input the thumb drive into the USB port on the printer, preview the image on the operation panel, and print! Fast and easy printing without the use of a computer.
MULTIPOSITIONAL BASKET
The PRO Series printers offer choices on how prints will be outputted based on the type and quantity being produced. Each comes standard with a multipositional basket that can be configured as any of the following:
- Catch basket
- Flatbed stacker
- Slope (used to display a print)
PRINTER MANAGEMENT SOLUTIONS
PROFESSIONAL PRINT & LAYOUT
Canon’s Professional Print & Layout (PPL) software for imagePROGRAF PRO Series printers offers features that streamline your printing workflow.
Features include:
- Can be used as a stand-alone RIP or as an export module in Adobe Photoshop, Adobe Lightroom, or Canon Digital Photo Professional
- Create and save custom layouts
- Preview of multiple images at the bottom of the software
- 16-bit printing workflow
- Auto nesting
ACCOUNTING MANAGER
In today’s printing environment, it’s more important than ever to understand how much ink and media each print job is costing your business. Both Mac and Microsoft compatible, Accounting Manager serves as a powerful feature to accurately manage print costs. You can now track the amount of ink and paper being consumed for large-format printing for up to 50 printers!
QUICK UTILITY Toolbox
Quick Utility Toolbox is home to all the Canon PRO Series printer software and tools.
DEVICE MANAGEMENT CONSOLE
The Device Management Console software, ideal for fleet management, lets you perform color calibrations remotely. You can monitor the printer status of up to 50 units from any location in the world, be notified via e-mail when an error has occurred, or check the amount of ink left in the printers—without ever having to leave the comfort of your desk.
ADDITIONAL SOFTWARE AVAILABLE
- Free Layout Plus
- PosterArtist Lite
- Media Configuration Tool
- Direct Print & Share
- PosterArtist (optional)
HIGH-CAPACITY INK TANKS
The PRO Series gives you the capability to mix and match ink tanks based on your printing needs. Having available 160 ml, 330 ml, and 700 ml ink tanks gives you the power to purchase ink based on the color frequency at which you print.
PROFESSIONAL PRINT & LAYOUT
Canon’s Professional Print & Layout (PPL) is a workflow software for the imagePROGRAF PRO Series. The software delivers enhanced layout settings, including soft proofing, nesting, and cropping images. Canon’s Professional Print & Layout (PPL) software for imagePROGRAF PRO Series printers offers features that help streamline your printing workflow.
- Can be used as a stand-alone RIP or as an export module in Adobe Photoshop, Adobe Lightroom, or Canon Digital Photo Professional
- Create and save custom layouts
- Preview of multiple images at the bottom of the software
- 16-bit printing workflow.
POSTER ARTIST LITE
Take your business to the next level by creating custom-made posters in-house with PosterArtist Lite. Select from a full suite of images, backgrounds, fonts, and colors to create professional posters.
