GCC Digital Cutting & Creasing Machine AFR-24S Automatic Finisher With Stand, Basket And Working Table
GCC Digital Cutting & Creasing Machine AFR-24S Automatic Finisher
GCC AFR-24S provides auto cutting and creasing function in sheet feed cutter to simplify your operation through an automatic working procedure for short-run production. GCC AFR-24S enables the optimized process with versatile capability which is suitable for packaging, cards, labels and stickers, transfer decals and many more.
Specifications
- Supported Media Size
- A4 (297 x 210 mm), SRA4 (320 x 235 mm), A3 (297 x 420 mm), SRA3 (320 x 450 mm), B3 (500 x 353 mm) (landscape orientation)
- A3+ (329 x 483 mm), B2 (500 x 707 mm) (portrait orientation)
- Interface - USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
- Power Source - 100 to 240 V AC (It is required three power outlet.)
- Operating Environment
- Temperature: 15 to 30°C/60°F~86°F
- Humidity: 25 to 75 % RH (non-condensing)
- Dimensions (Cutter With Feeder) - Approx. 1098(W) x 1140 (D) x 782 (H) mm
- Weight - Approx. 47.5 kg (Cutter unit: 25.5 kg, Auto feeder unit: 22 kg)
- Cutter Unit - RX II-61 (Creasing)
- Cutting Speed - Max. 1,530 mm/s (at 45° direction)
- Acceleration - Max. 4.2 G
- Cutting Force - Max. 600 g
- Interface - USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
- Power Source - 100 to 240 V AC
- Power Consumption - Max. 251.8 watts
- Auto Feeder Unit - Auto Feeder
- Supported Media
- Width: 279 to 500 mm, Length: 210 to 700 mm
- Up to 350 g/m2
Features
Creasing Ability

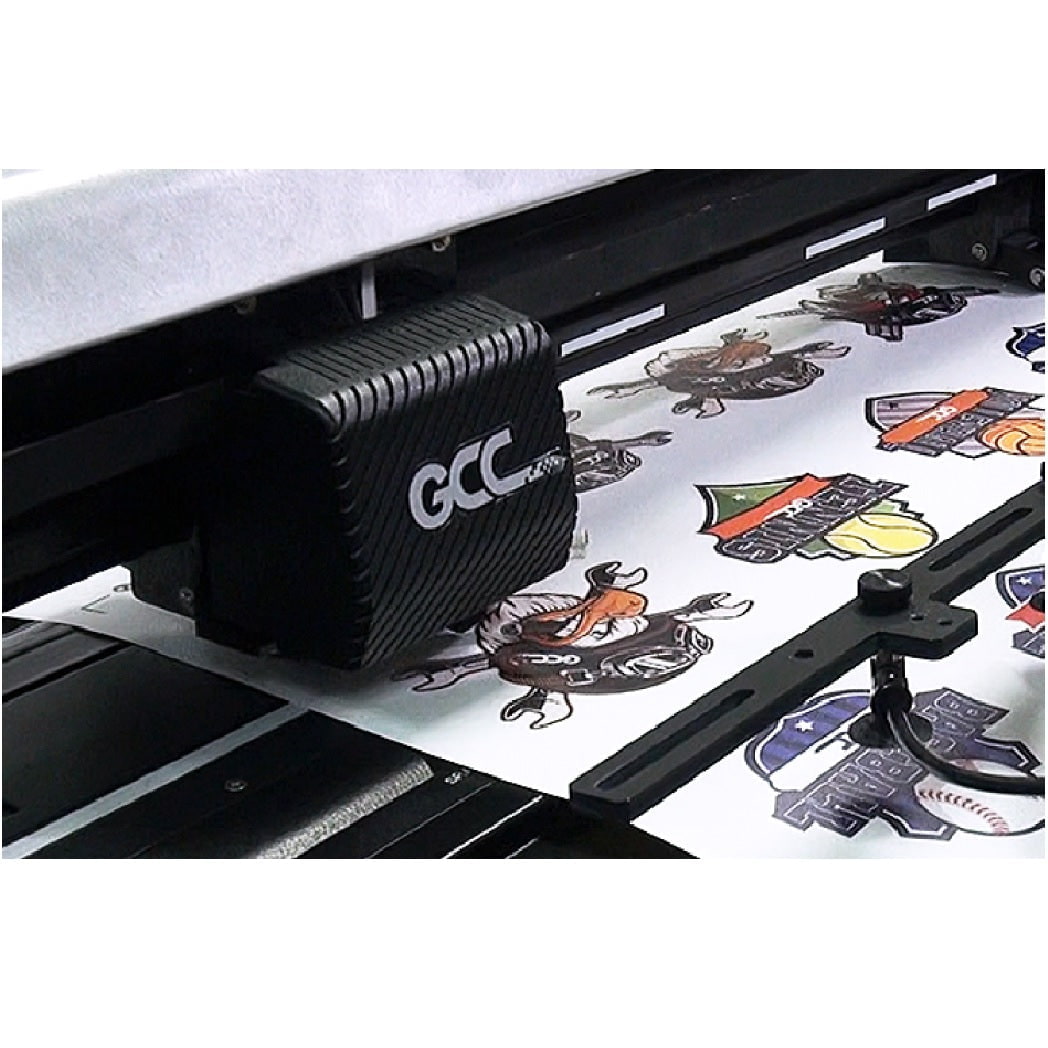

Equipped with the dual tool holders with creasing tool and blade, AFR offers cardstock creasing and cutting to make small volume of paper box.
PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.
Suction Cup
Strong suction Cup can absorb media easily to load into cutter.

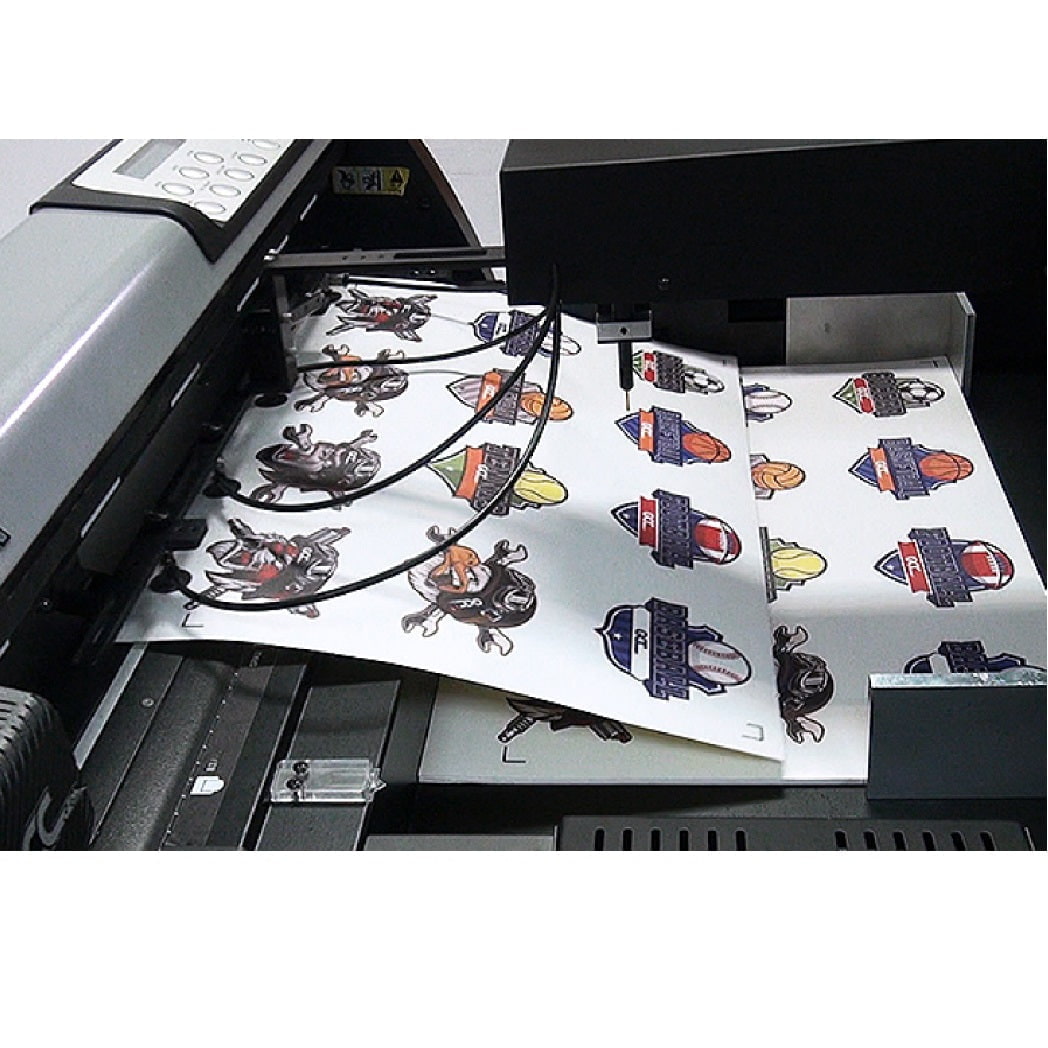

The Magnetic Media Separator
The special design of magnetic media separation mechanism prevents double feeding which ensure single sheet feeding each time as well as an uninterrupted workflow.
Media Stacking Up to 50mm (250 sheets)
Up to 50mm media stacking suggests great capacity tray and allows unattended operation.
Multiple Parameter Setting by 16 Different Colors
The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.
Adjustable Media Collection Tray
With the angle of the rotating hinge, the gradient of the media tray can be adjusted to a proper position to collect the finished jobs.
Work Table Assembly
Work table is specific designed for AFJ/AFR which enable to prevent machine from abnormal situation on uneven desktop. It also offers a convenience for user to operation machine without space limit.
