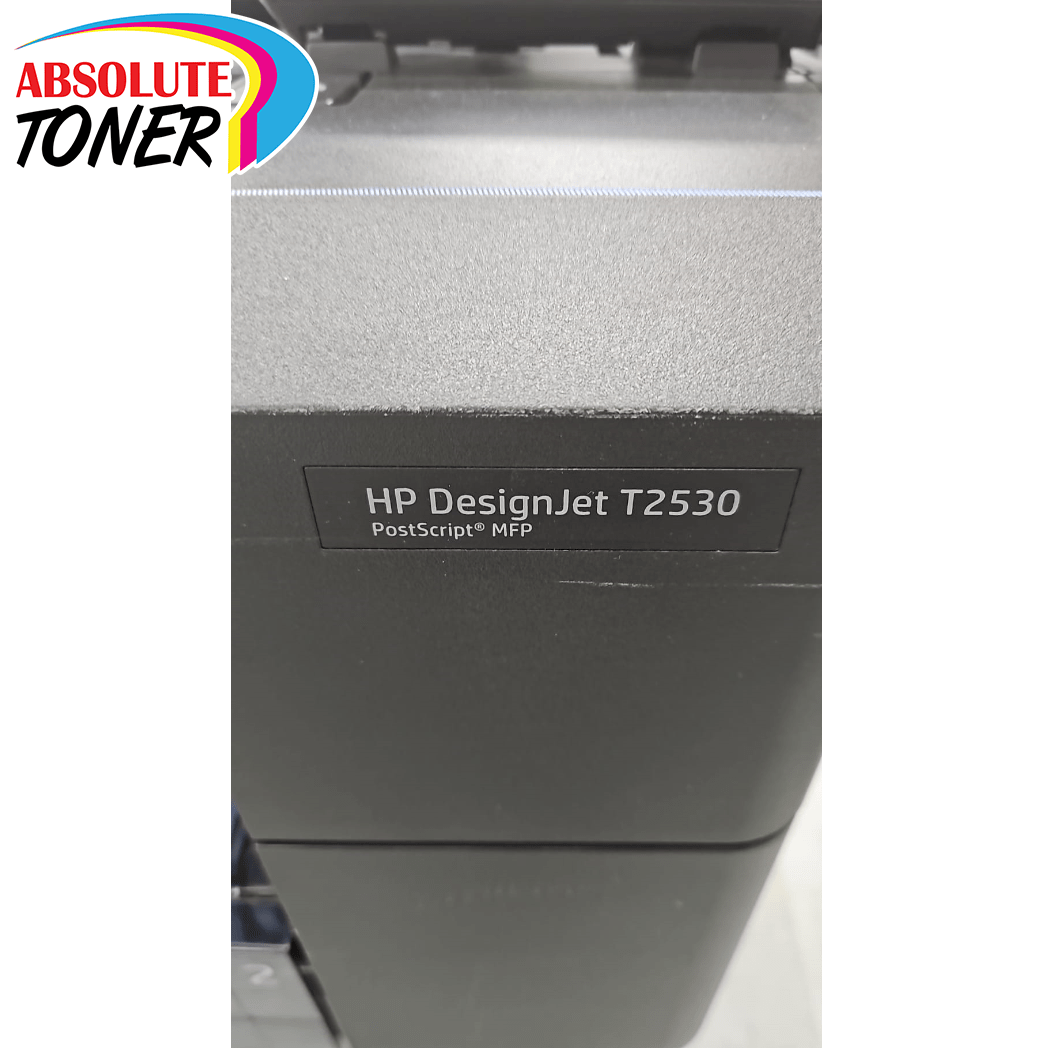

HP DesignJet T2530 PostScript Multifunction Printer Perfect for AEC, GIS, and MCAD Professionals
Details At A Glance:
- Line drawings: 21 sec/page on A1/D, 120 A1/D prints per hour
- Dye-based; 6 ink system
- Input: automatic front-loading roll feed, sheet feed; Output: stacking tray, media bin, automatic cutter
- FCC Class A emissions - for use in commercial environments, not residential environments
Boost workgroup performance with this MFP. Produce professional quality quickly. Enhance productivity with efficient printing including two rolls and a single, intuitive control panel for print, scan, and copy functions. Secure and manage easily.
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text.
Satisfy the demands of users and IT alike with an integrated MFP that enables on-the-job performance. Produce professional results. Work with one intuitive device and accomplish more. Easily manage and protect with enterprise compatibility.
FCC Class A emissions device for use in commercial environments, not residential environments.
PROFESSIONAL—Your work in high quality, quickly
Present your work in precise, detailed color rendered with 6 Original HP inks including gray and photo black. Make your architectural prints shine with professional, high-resolution graphics—opt for Adobe PostScript®. Produce professional CAD and GIS drawings with consistent color accuracy, crisp, sharp lines, up to 2400 dpi. Produce fast, high-quality results—get A1/D-size prints in 21 seconds (120 A1/D pages per hour).
PRODUCTIVE—Efficiencies help workgroups save time
Convenient access to single control panel for print/scan/copy enables easy, do-it-yourself operation. Keep workgroups on task—integrated 50-page output stacking tray conveniently delivers flat, collated prints. Two rolls provide flexibility—easy front loading, automatic alignment; two media types/sizes, smart switching. Print from your mobile device/USB drive with HP Mobile Printing; add features with HP AiO Printer Remote.
MANAGEABLE—Secure and easy-to-manage for IT
From upgrades to network integration, this single, integrated device requires less effort to manage. Gain control—initiate front panel access rules, monitor media rolls and printer status, track print jobs. Protect your data with IPSec, NTLMv2, SNMPv3, 802.1X, PIN printing, and more security options. Enable unattended printing with two 300-ft (91.4-m) rolls compatible with the way you work.
TECHNICAL DETAILS
| Functions |
Print, copy, scan |
| Scan speed, maximum |
Up to 2.5 in/sec (color, 200 dpi); up to 7.5 in/sec (grayscale, 200 dpi) |
| Resolution (color) |
Up to 2400 x 1200 optimized dpi |
| Print Technology |
HP Thermal Inkjet |
| Number of print cartridges |
6 (cyan, gray, magenta, matte black, photo black, yellow) |
| Compatible ink types |
Dye-based (C, G, M, pK, Y); pigment-based (mK) |
| Print languages |
Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF |
| Mobile Printing Capability |
Mobile printing and scanning via Apple AirPrint™, HP Print Service Plugin for Android, HP All-in-One Printer Remote app, and email printing. Supports printing from most smartphones and tablets using these operating systems: Android, iOS |
| Connectivity, standard |
Gigabit Ethernet (1000Base-T) |
| Network ready |
Standard |
| Memory, standard |
128 GB (file processing) |
| Memory, maximum |
128 GB (file processing) |
| Hard disk |
Standard, 500 GB |
| Non-printable area (cut-sheet) |
0.1 x 0.87 x 0.1 x 0.1 in |
| Guaranteed minimum line width |
0.0028 in (ISO/IEC 13660:2001(E)) |
| Line accuracy |
±0.1% |
| Maximum optical density (black) |
6 L* min/2.15 D |
| Finished output handling |
Input: two automatic front-loading roll feeds; smart roll switching; sheet feed; Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity); media bin; automatic cutter; Scanner: straight-through scan paper path for sheet and cardboard originals |
| Media sizes supported |
A, B, C, D, E |
| Media sizes supported |
A4; A3; A2; A1; A0 |
| Media sizes, custom |
8.3 x 11 to 36 x 48 in |
| Media types |
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) |
| Media sizes, standard |
8.3 to 36-in wide sheets; 11 to 36-in rolls |
| Roll external diameter |
5.5 in |
| Media thickness |
Up to 19.7 mil |
| Power |
Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max (peak current) |
| Power consumption |
120 watts (printing/scanning); 1.3 watts (5 watts with embedded Digital Front End) (sleep) |
| Operating temperature range |
41 to 104ÂşF |
| Mechanical print time, b&w line drawing, draft mode, plain |
120 D prints per hour |
| FCC |
FCC Class A emissions - for use in commercial environments, not residential environments |
| Dimensions (W X D X H) |
55.1 x 36.1 x 43.7 in |
| Weight |
245 lb |
| Package weight |
320 lb |
