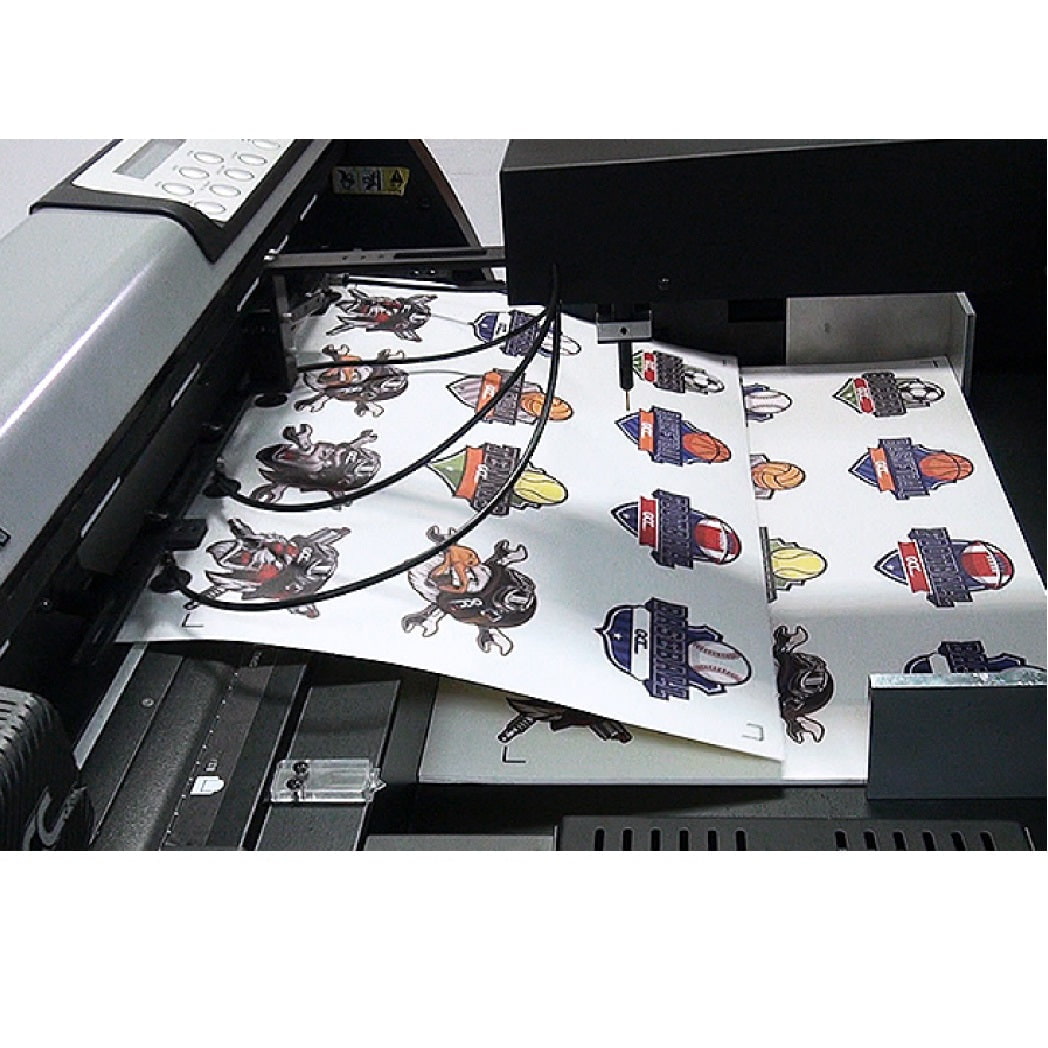

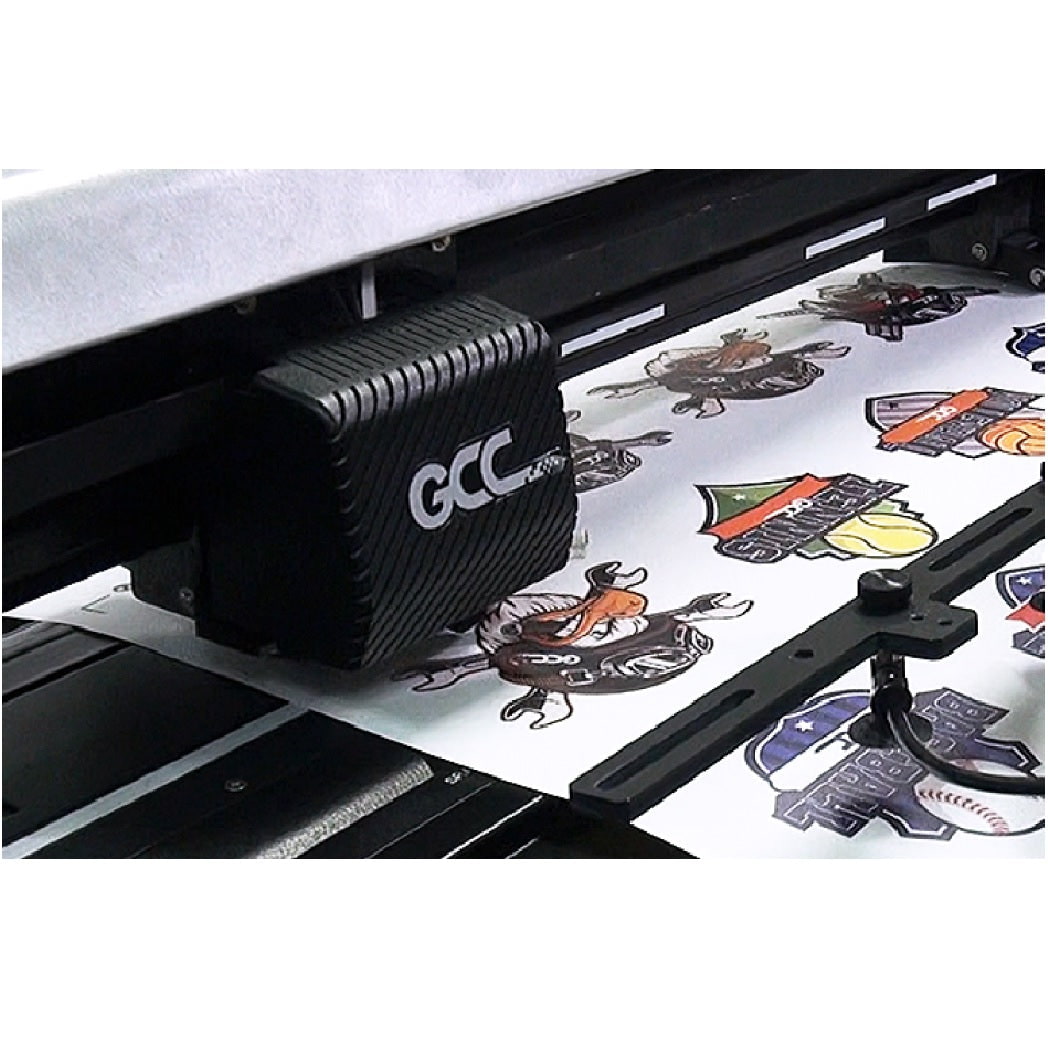

GCC Digital Cutting & Creasing Machine AFR-24S Automatic Finisher With Auto Feeding

Open Financing and Leasing are available

$119.63/Month Lease Available

PayPlan by RBC - Get pre-approved for a flexible 12 to 48-month OPEN LOAN in just 5 seconds. Receive an answer in seconds by simply providing your name, phone number, and date of birth. Start your application here!

GCC AFR-24S provides auto cutting and creasing function in sheet feed cutter to simplify your operation through an automatic working procedure for short-run production. GCC AFR-24S enables the optimized process with versatile capability which is suitable for packaging, cards, labels and stickers, transfer decals and many more.

Specifications

• Supported Media Size
• A4 (297 x 210 mm), SRA4 (320 x 235 mm), A3 (297 x 420 mm), SRA3 (320 x 450 mm), B3 (500 x 353 mm) (landscape orientation)
• A3+ (329 x 483 mm), B2 (500 x 707 mm) (portrait orientation)
• Interface - USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
• Power Source - 100 to 240 V AC (It is required three power outlet.)
• Operating Environment
• Temperature: 15 to 30°C/60°F~86°F
• Humidity: 25 to 75 % RH (non-condensing)
• Dimensions (Cutter With Feeder) - Approx. 1098(W) x 1140 (D) x 782 (H) mm
• Weight - Approx. 47.5 kg (Cutter unit: 25.5 kg, Auto feeder unit: 22 kg)
• Cutter Unit - RX II-61 (Creasing)
• Cutting Speed - Max. 1,530 mm/s (at 45° direction)
• Acceleration - Max. 4.2 G
• Cutting Force - Max. 600 g
• Interface - USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
• Power Source - 100 to 240 V AC
• Power Consumption - Max. 251.8 watts
• Auto Feeder Unit - Auto Feeder
• Supported Media
• Width: 279 to 500 mm, Length: 210 to 700 mm
• Up to 350 g/m²

Features

Media Stacking Up to 50mm (250 sheets)

Up to 50mm media stacking suggests great capacity tray and allows unattended operation.

Multiple Parameter Setting by 16 Different Colors

The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.

Adjustable Media Collection Tray

With the angle of the rotating hinge, the gradient of the media tray can be adjusted to a proper position to collect the finished jobs.
