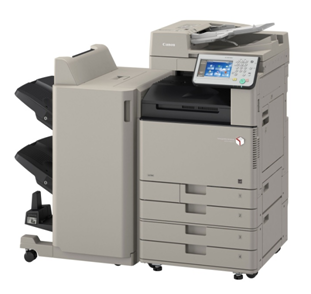

Type Color Digital Multifunction Imaging System
|
Functions Copy, Print (UFR II, PCL 5c/6, Adobe® PostScript® 3™), Fax (Up to 1 Line), Scan, Send
|
Operation Panel 7" WVGA Full-Color TFT Screen
|
Image Server Memory Standard:
|
2 GB RAM
|
Maximum:
|
2 GB RAM
|
Hard Disk Drive Standard:
|
80 GB
|
Maximum:
|
80 GB
|
Network Interface Connection Ethernet 10/100/1000Base-TX
|
Other Interface USB 2.0 x3 (Host), USB 2.0 (Device)
|
Advanced Box
|
Advanced Box Features Store to Remote Advanced Box:
|
Supported Print/View from Remote Advanced Box: Supported
|
Memory Media
|
Standard Store to USB Memory
|
Scan Specifications
|
Network TWAIN Scan Standard:
|
Network WIA Scan
|
Network Scan Utility Color Network ScanGear 2
|
Copy/Print Speed (BW/Color)
|
Letter Up to 36/36 ppm
|
Legal Up to 29/29 ppm
|
Copy Specifications
|
First Copy Time As fast as 5.9 Seconds (BW) and 7.4 Seconds (Color)
|
Multiple Copies 1 to 999
|
Copy Exposure Automatic or Manual (9 Levels)
|
Magnification 25 - 400% (1% Increments)
|
Preset Reductions 25%, 50%, 64%, 78%
|
Preset Enlargements 129%, 200%, 400%
|
Standard Paper Capacity (20 lb. Bond):
|
550-sheet Paper Cassette 100-sheet Stack Bypass
|
Optional 1 x 550-sheet Paper Cassette 3 x 550-sheet Paper Cassette
|
Maximum Paper Capacity 2,300 Sheets
|
Output Paper Capacity (21 lb. Bond):
|
Standard:250 Sheets
|
Maximum:
|
500 Sheets (non-stapled with Staple Finisher-S1 attached)
|
Output Sizes
|
Cassette Legal, Letter, Statement, Executive, Custom Size [(3-7/8" x 7-1/2" to 8-1/2" x 14") (98.4 mm x 190.5 mm to 216 mm x 355.6 mm)], and Envelopes (COM10, Monarch, DL, ISO-C5)*
|
Bypass Legal, Letter, Statement, Executive, Custom Size [(3-7/8" x 5-7/8" to 8-1/2" x 14") (98.4 mm x 148 mm to 216 mm x 355.6 mm)], and Envelopes (COM10, Monarch, DL, ISO-C5)
|
Acceptable Paper Weights
|
Cassette 16 lb. Bond to 60 lb. Cover (60 to 163 g/m2)
|
Bypass 16 lb. Bond to 80 lb. Cover (60 to 220 g/m2)
|
Duplexing
|
Paper Size Standard Automatic Trayless Duplexing (Statement to Legal)
|
Paper Weight Up to 60 lb. Cover (163 g/m2)
|
Special Media Support Thin [16 lb. Bond (60 to 63 g/m2)], Plain 1 [17 lb. Bond to 20 lb. Bond (64 to 75 g/m2)], Plain 2 [21 lb. Bond to 24 lb. Bond (76 to 90 g/m2)], Plain 3 [25 lb. Bond to 28 lb. Bond (91 to 105 g/m2)], Recycled 1 [17 lb. Bond to 20 lb. Bond (64 to 75 g/m2)], Recycled 2 [21 lb. Bond to 24 lb. Bond (76 to 90 g/m2)], Recycled 3[(25 lb. Bond to 28 lb. Bond (91 to 105 g/m2)], Color [17 lb. Bond to 20 lb. Bond (64 to 75 g/m2)], Heavy 1 [29 lb. Bond to 34 lb. Bond (106 to 128 g/m2)], Heavy 2 [35 lb. Bond to 60 lb. Cover (129 to 163 g/m2)], Heavy 3 [61 lb. Cover to 80 lb. Cover [164 to 220 g/m2)], Transparency [32 lb. Bond to 80 lb. Cover (121 to 220 g/m2)], Pre-punched [17 lb. Bond to 20 lb. Bond (64 to 75 g/m2)], Bond [24 lb. Bond (90 g/m2)], Labels [31 lb. Bond to 59 lb. Cover (118 to 160 g/m2)], Envelopes
|
|
Warm Up Time From Power On:
|
34 Seconds
|
From Sleep Mode:
|
10 Seconds
|
Quick Startup Mode:
|
10 Seconds**
|
Power Requirements 120 V, 60 Hz, 6.9 A
|
Power Consumption Maximum:
|
1.5 kW
|
Sleep Mode:
|
1 W
|
Plug NEMA 5-15
|
Dimension 24" x 20-1/8" x 24-1/2" (610 mm x 511 mm x 621 mm)
|
Installation Space 33-1/2" x 24-1/2" ( 852 mm x 621 mm) (When the Multipurpose Tray is extended)
|
Weight Approx. 99.2 lb. (45 kg)***
|
Image Reader
|
Scan Resolution Up to 600 x 600 dpi
|
Acceptable Originals (Glass):
|
Sheet, Book, 3-Dimensional Objects [up to 4.4 lb. (2 kg)]
|
Maximum Original Size Legal (8-1/2" x 14")
|
Basic Copy Features Preset R/E Ratios by Area, Finishing, Two-sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel, Standard Keys, Reset, Job Duration Display, Reserved Copying, ID Management, Counter Check
|
Special Copy Features ID Card Copy, Shift, Frame Erase, Scan Image Check, Mode Memory, Recall, Sharpness, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date
|
Security Features
|
Standard Department ID Management, Single Sign On-H, Access Management System (Device and Function Level Log-in), Secured Print, Trusted Platform Module, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), Send to Myself (only), Send to My Personal Folder (only), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, IEEE 802.1x (wired/wireless), SMTP Authentication, POP Authentication before SMTP, HDD Initialize (Up to 9x) HDD Erase (Up to 3x), HDD Lock, IPsec, Adobe® LiveCycle® Rights Management ES2.5 Integration
|
|
Optional HDD Encryption, HDD Erase Scheduler, Encrypted Secured Print, Encrypted PDF, Secure Watermark, IEEE 2600.1 Common Criteria Certification,♦ imageWARE Secure Audit Manager Express, uniFLOW, AA-Print, Universal Login Manager
|
Environmental Features
|
ENERGY STAR® Qualified
|
RoHS Compliant
|
Blue Angel
|
EPEAT® Rated
|
WEEE Directive
|
