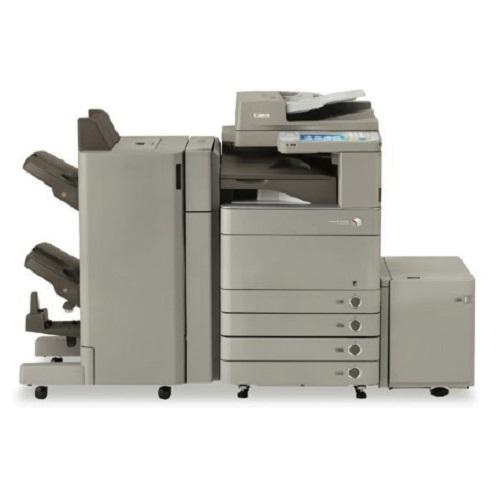

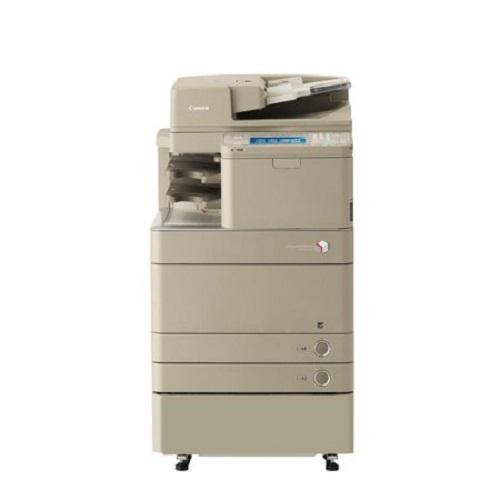

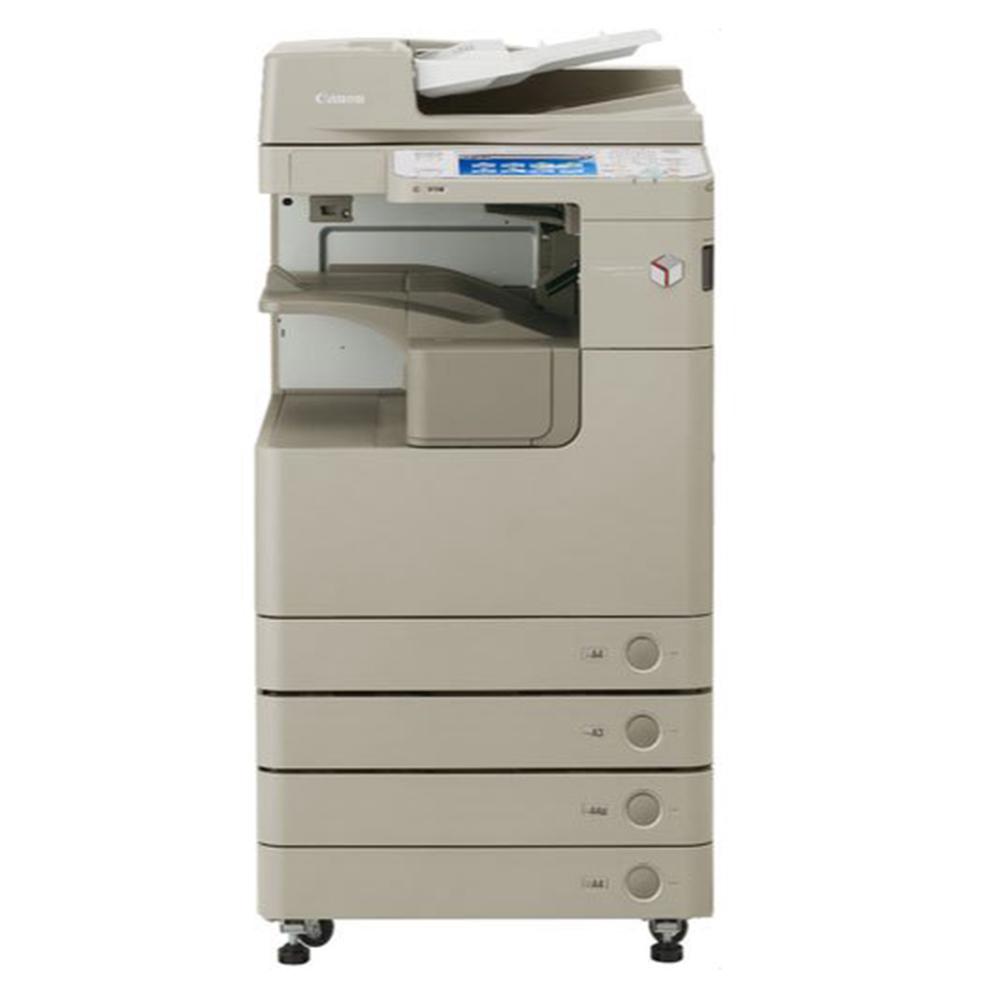

The imageRUNNER ADVANCE C5200 Series transforms workflow from a series of individual processes to an integrated flow of shared information. A beautifully compact communications hub, this Series can drive your organization to new levels of performance and productivity. From every point of view, these models are simply advanced.
Model Name
imageRUNNER ADVANCE C5240
Type
Color Digital Multifunction Imaging System
Letter: Up to 40/35 ppm
Legal: Up to 20/18 ppm
Ledger: Up to 20/18 ppm
Functions
Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL, Adobe® PostScript® 3™), Fax (Up to 4 Lines)
Operation Panel
8.4 SVGA Full-Color TFT Screen
Image Server Memory
Standard: 2GB RAM
Maximum: 2.5GB RAM
Hard Disk Drive
Standard: 160GB
Maximum: 1TB
Mirroring Hard Disk Drive
Optional (160GB, 1TB), Method: RAID1
Network Interface Connection
Standard: 1000Base-T/100Base-TX/10Base-T
Optional: Wireless LAN (IEEE 802.1x via third-party adapter)
Other Interface
Standard: USB 2.0 (Host) x 2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host) x 2], Serial Interface, Copy Control Interface
Max Mailboxes Supported
100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes Approx.
Max Pages Stored
6,000 Maximum Pages Stored
Advanced Box
Available Disk Space
15GB (Standard HDD)
Approx. 629GB (1TB HDD)
Common Protocol
SMB or WebDAV
Supported Client PC
Windows® (Windows 2000/XP/Windows Vista®)
Max. Number of Concurrent Connections
SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features
Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
Memory Media
Optional
SD, SDHC, CompactFlash, Memory Stick, Microdrive
Scan Specifications
Network TWAIN Scan
Standard
Network Scan Utility
Color Network ScanGear
Standard Paper Capacity
Dual 550-sheet Paper Cassettes,
100-sheet Stack Bypass
Optional
Dual 550 Sheet Paper Cassettes,
2,700-sheet Paper Deck
Maximum Paper Capacity
5,000 Sheets
Output Paper Capacity
(20 lb. Bond): Standard: 250 Sheets (Inner Tray)
Maximum: 3,250 Sheets (w/Staple Finisher or Booklet Finisher)
Output Sizes
Cassette
12 x 18,* 11 x 17,* Legal, Letter, Letter-R, Statement-R, Executive, Custom Size (5-1/2 x 7-1/8 to 12 x 18)
Bypass
12 x 18, 11 x 17, Legal, Letter, Letter-R, Statement, Statement-R, Executive, Custom Size (3-7/8 x 5-1/2 to 12-5/8 x 18)
Paper Deck: Letter
Other Option
Envelope Feeder Attachment (COM10 No.10, Monarch, DL, ISO-C5)** Tab Feeding Attachment Kit**
Acceptable Paper Weights
Cassette
14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Bypass
14 lb. Bond to 140 lb. Index (52 to 256g/m2)
Duplexing
Paper Size
Standard Automatic Trayless Duplexing (Executive to 12 x 18)
Paper Weight
14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Special Media Support
Thin, Plain 1 [17 lb. Bond to 21 lb. Bond (64g/m2 to 81g/m2], Plain 2 [22 lb. Bond to 28 lb. Bond (82g/m2 to 105g/m2)], Recycled, Color, Pre-Punched, Bond, Heavy 1 [29 lb. Bond to 60 lb. Cover (106g/m2 to 163g/m2)], Heavy 2 [61 lb. Cover to 80 lb. Cover (164g/m2 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221g/m2 to 256g/m2)], Tracing, Coated, Labels, Transparency, Tab, Letterhead, and Envelopes
Warm Up Time
From Power On: 31 Seconds, From Sleep: 15 Seconds Quick Startup Mode: 7 Seconds***
Power Requirements
120V AC, 60Hz, 15A
Power Consumption
Maximum: 1.5kW
Sleep Mode: 0.8W
Dimension
36-5/8 x 24-3/8 x 28
(931mm x 620mm x 712mm)
Installation Space
33-1/2 x 28 (850mm x 712mm)
Weight
Approx. 333 lb. (151kg)†
Image Reader
Scan Resolution
Up to 600 x 600 dpi
Acceptable Originals
(Glass): Sheet, Book, 3-Dimensional objects [up to 4.4 lb. (2kg)]
Maximum Original Size
Up to 11 x 17
Basic Copy Features
First Copy Time: BW: 5.4 Seconds, Color: 8.1 Seconds
Multiple Copies: 1 to 999
Copy Exposure: Automatic or Manual (9 Levels)
Magnification: 25% - 400% (1% Increments)
Preset Reductions: 25%, 50%, 64%, 73%, 78%
Preset Enlargements: 121%, 129%, 200%, 400%
Security Features
Standard
Department ID Management, Single Sign On-H, Access Management System (Device and Function Level Log-in), Secured Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Port Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPSec, Adobe LiveCycle Rights Management ES2.5 Integration
Optional
Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification
Environmental Features
EPEAT Rated ENERGY STAR® Qualified RoHS Compliant Ecomark Blue Angel WEEE Directive
